Conguring SATA Hard Drive(s)

- 60 -

The BIOS Setup menus described in this section may differ from the exact settings for your motherboard.

The actual BIOS Setup menu options you will see shall depend on the motherboard you have and

the BIOS version.

B.ConguringSATAcontrollermodeinBIOSSetup

MakesuretoconguretheSATAcontrollermodecorrectlyinsystemBIOSSetup.

Step 1:

Turnonyourcomputerandpress<Delete>toenterBIOSSetupduringthePOST(Power-OnSelf-Test).Goto

Peripherals\SATAConguration, make sure SATA Controllers is enabled. To create RAID, set SATA Mode

Selection to RAID(Figure1).IfyoudonotwanttocreateRAID,setthisitemtoIDE or AHCI.

Step 2:

IfyouwanttocongureUEFIRAID,followthestepsin"C-1."ToenterthelegacyRAIDROM,savethesettings

and exit BIOS Setup. Refer to "C-2" for more information.

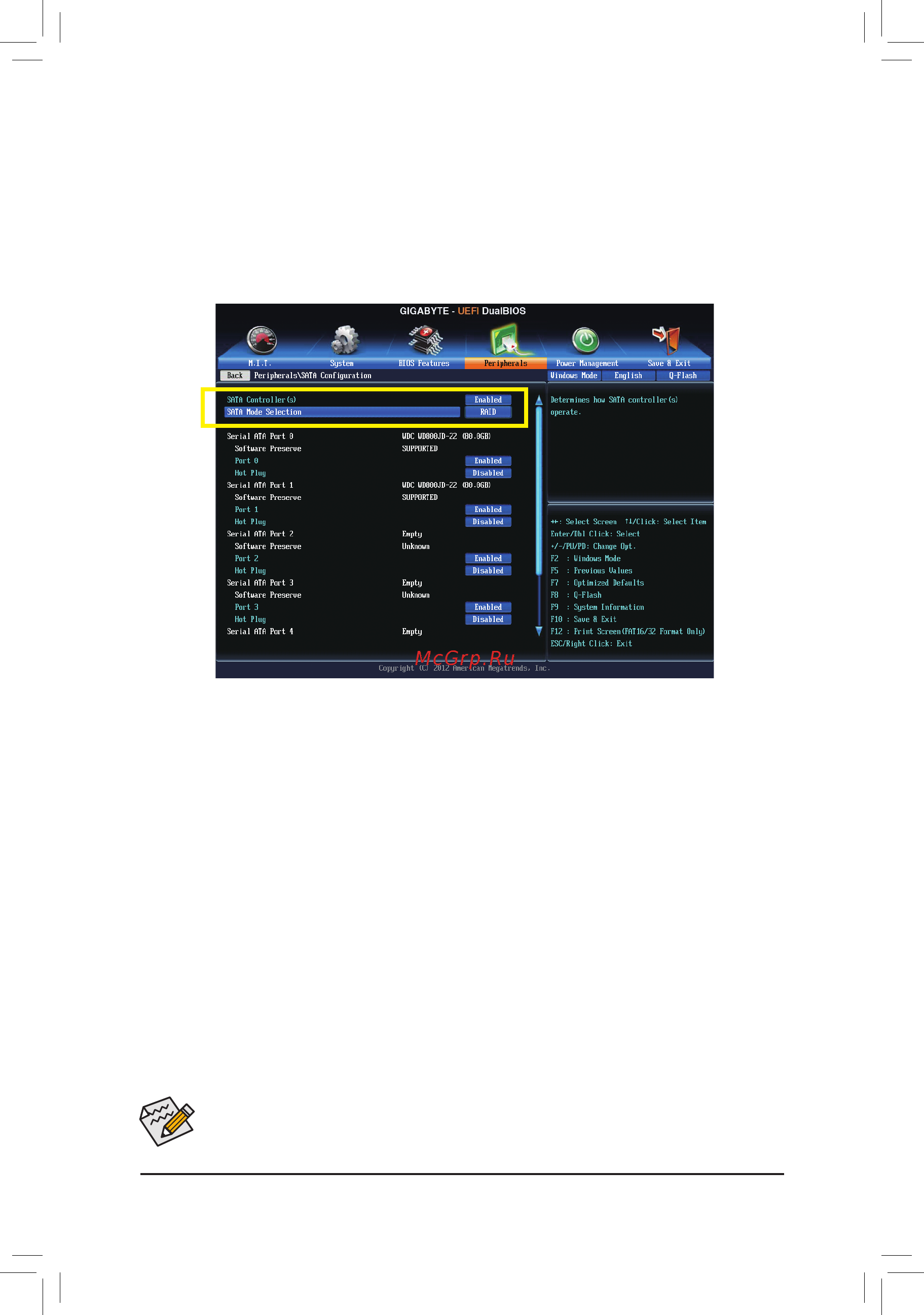

Figure 1
