Hardware Installation

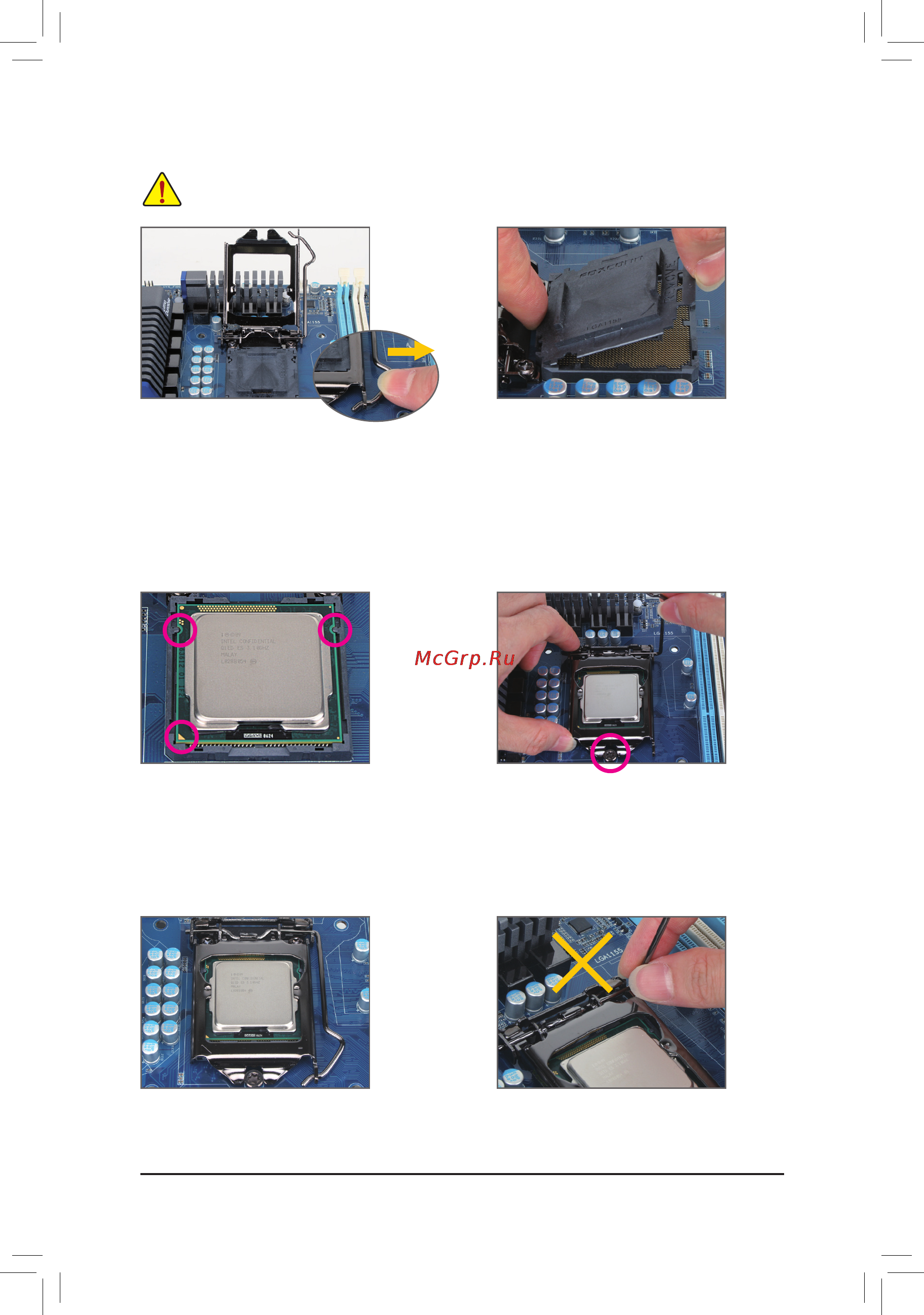

B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.

Before installing the CPU, make sure to turn off the computer and unplug the power cord from

the power outlet to prevent damage to the CPU.

Step 1:

Gently press the CPU socket lever handle down

andawayfromthesocketwithyournger.Then

completely lift the CPU socket lever and the metal

load plate will be lifted as well.

Step 3:

HoldtheCPUwithyourthumbandindexngers.

Align the CPU pin one marking (triangle) with the

pin one corner of the CPU socket (or you may align

the CPU notches with the socket alignment keys)

and gently insert the CPU into position.

Step 5:

Push the CPU socket lever back into its locked

position.

Step 4:

Once the CPU is properly inserted, use one hand

to hold the socket lever and use the other to lightly

replace the load plate. When replacing the load

plate, make sure the front end of the load plate is

under the shoulder screw.

NOTE:

Hold the CPU socket lever by the handle, not the

lever base portion.

Step 2:

Remove the CPU socket cover as shown. Hold

yourindexngerdownonthereargripofthe

socket cover and use your thumb to lift up the

front edge (next to the "REMOVE" mark) and then

remove the cover. (DO NOT touch socket contacts.

To protect the CPU socket, always replace the pro-

tective socket cover when the CPU is not installed.)
