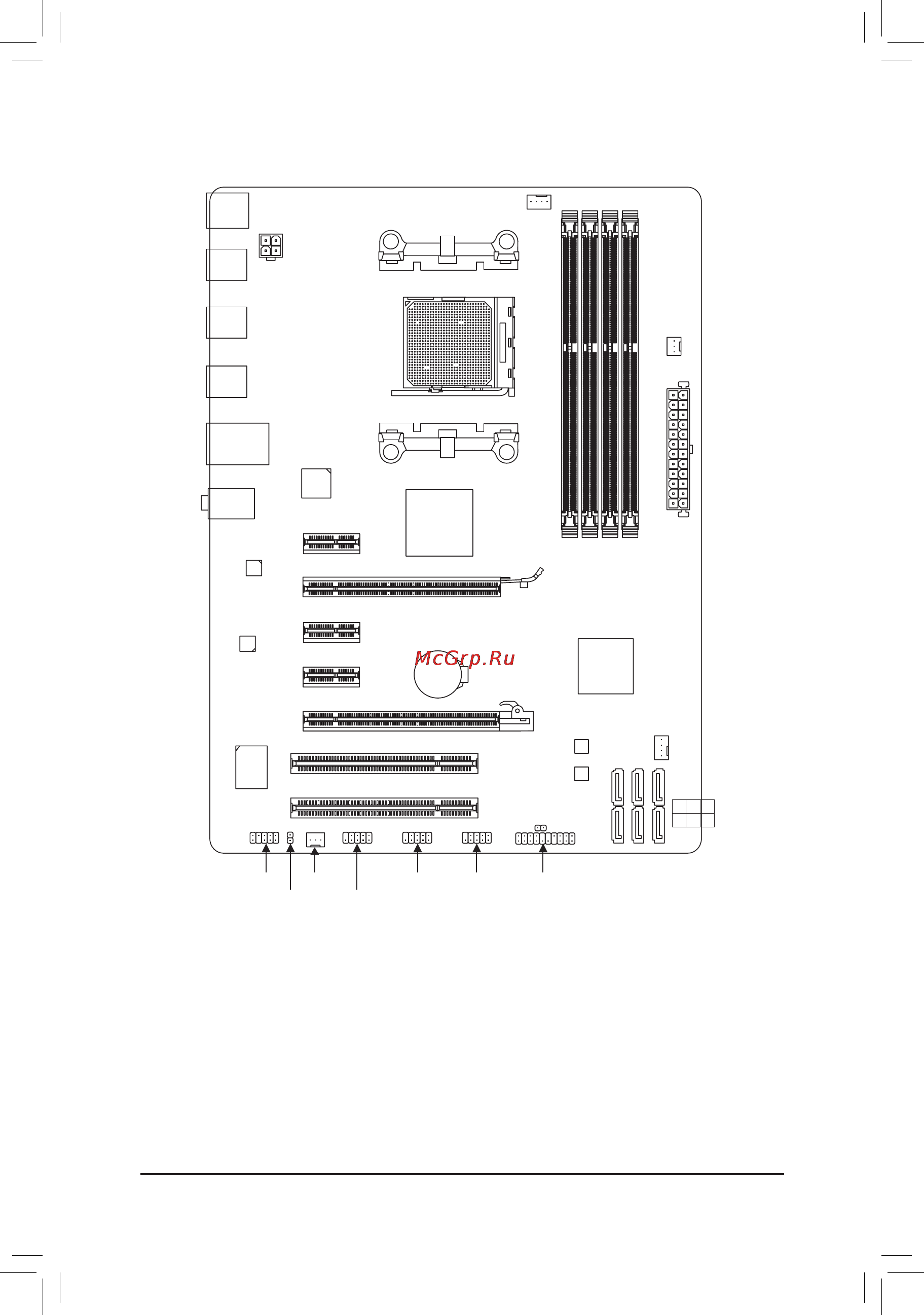

GA-970A-DS3 Motherboard Layout
KB_MS
CPU_FAN
Socket AM3+
ATX
GA-970A-DS3
F_AUDIO
AUDIO
PCIEX4
DDR3_4
DDR3_3
DDR3_2
DDR3_1
BAT
F_PANELF_USB2
F_USB3
SYS_FAN2
SPDIF_O
ATX_12V
AMD 970
AMD SB950
SATA3
0 2 4
1 3 5
PCI1
PCI2
R_USB2
R_USB1
R_USB30
CODEC
PWR_FAN
SYS_FAN1
PCIEX1_2
PCIEX1_1
(Note)
USB_LAN
PCIEX16
PCIEX1_3
F_USB1
M_BIOS
B_BIOS
CLR_CMOS
Realtek
GbE LAN
Etron
EJ168
iTE
IT8728
(Note) Due to a hardware limitation, the PCIEX1_1 slot can only accommodate a shorter PCI Express x1
expansion card. For a longer expansion card, use other expansion slots.
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
Box Contents
GA-970A-DS3 motherboard 5
Motherboard driver disk 5 Two SATA cables 5
User's Manual 5 I/O Shield 5
