![Gigabyte GA-780T-D3L [23/96] Sata2 0 1 2 3 4 5 sata 3gb s connectors](/views2/1168047/page23/bg17.png)

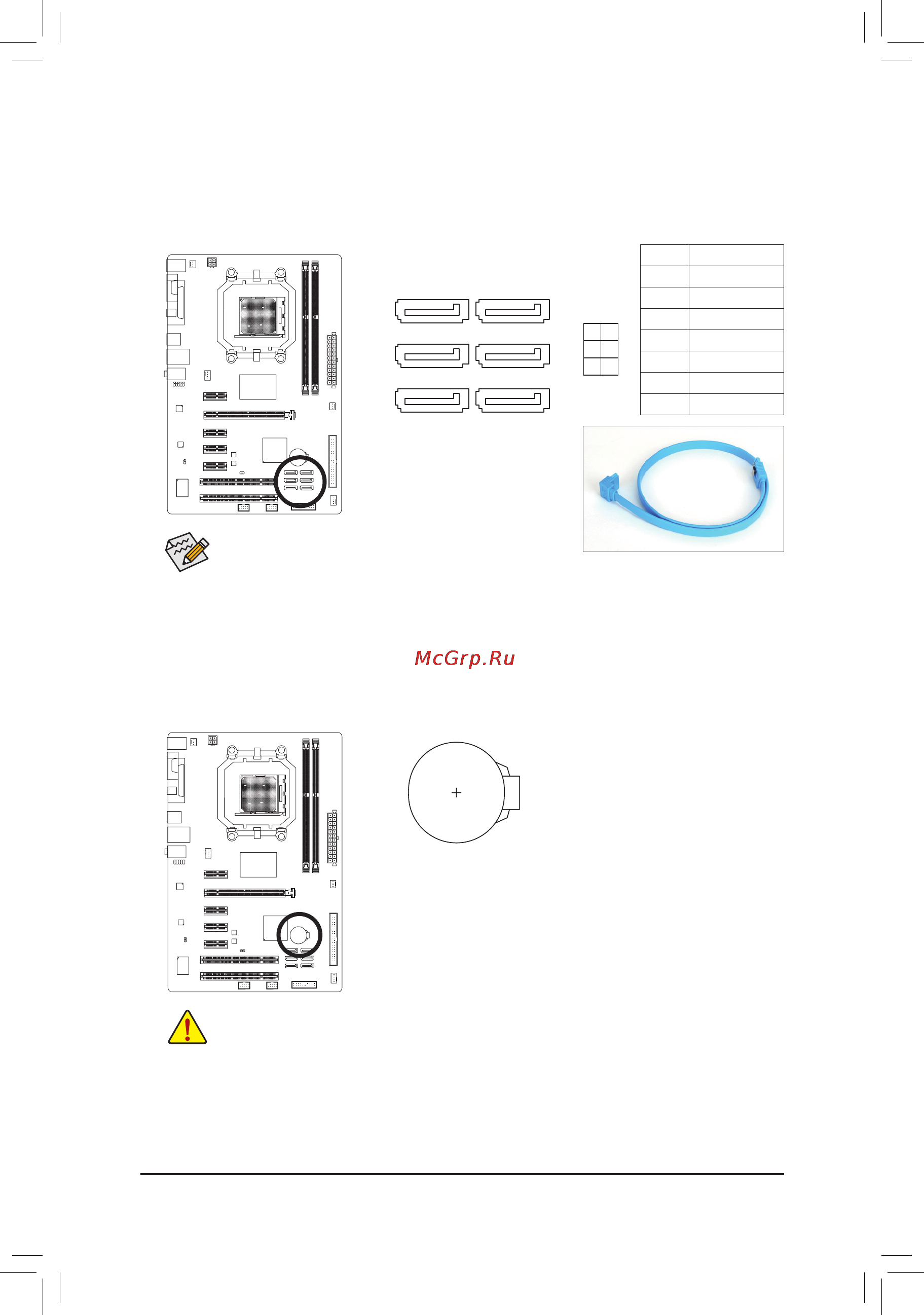

- 23 - Hardware Installation
7) SATA2 0/1/2/3/4/5 (SATA 3Gb/s Connectors)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The AMD SB710 controller supports RAID 0, RAID 1,
RAID 10, and JBOD. Refer to Chapter 5, "Conguring SATA Hard Drive(s)," for instructions on conguring
a RAID array.
A RAID 0 or RAID 1 conguration requires at least •
two hard drives. If more than two hard drives are to
be used, the total number of hard drives must be an
even number.
A RAID 10 conguration requires four hard drives. •
1 7
1 7
1 7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
Please connect the L-shaped end of the
SATA cable to your SATA hard drive.
2 5
1 4
0 3
8) BAT (Battery)
The battery provides power to keep the values (such as BIOS congurations, date, and time information)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low
level, or the CMOS values may not be accurate or may be lost.
You may clear the CMOS values by removing the battery:
Turn off your computer and unplug the power cord.1.
Gently remove the battery from the battery holder and wait for one 2.
minute. (Or use a metal object like a screwdriver to touch the positive
and negative terminals of the battery holder, making them short for 5
seconds.)
Replace the battery. 3.
Plug in the power cord and restart your computer.4.
Always turn off your computer and unplug the power cord before replacing the battery. •
Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with •
an incorrect model.
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself •
or uncertain about the battery model.
When installing the battery, note the orientation of the positive side (+) and the negative side (-) •
of the battery (the positive side should face up).
Used batteries must be handled in accordance with local environmental regulations. •
SATA2
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
