Appendix - 88 -
If the procedure above is unable to solve your problem, contact the place of purchase or local dealer
for help. Or go to the Support & Downloads\Technical Support page to submit your question. Our
customer service staff will reply you as soon as possible.
The power supply, CPU or
CPU socket might fail.
The keyboard or keyboard
connector might fail.
END
A

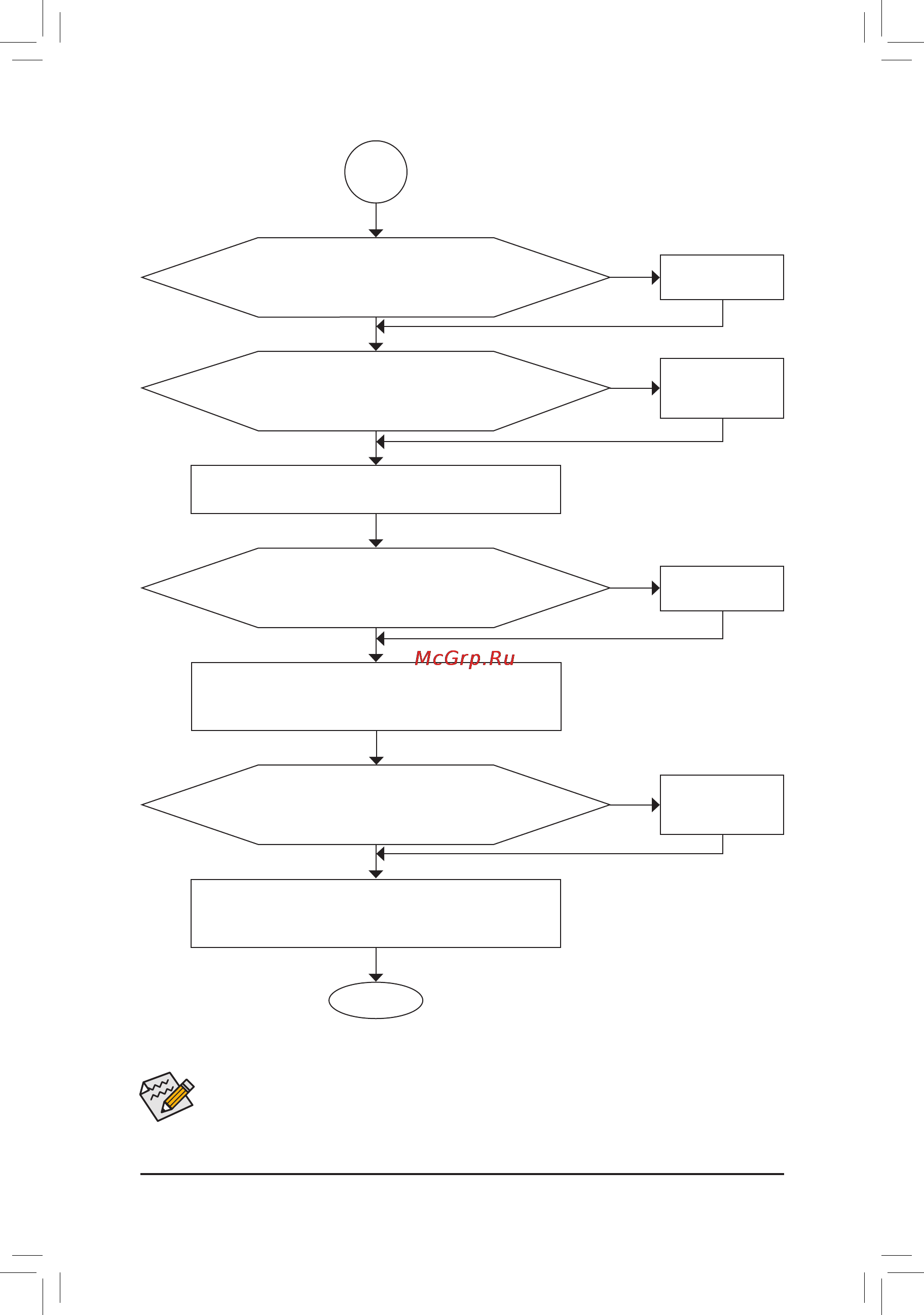

Turn off the computer. Plug in the keyboard and mouse and restart
the computer.
The graphics card,
expansion slot, or monitor
might fail.
The IDE/SATA device,
connector, or cable
might fail.
No
The problem is veried and solved.
The problem is veried and solved.
The problem is veried and solved.
No
No
Yes
Yes
Yes
Reinstall the operating system. Reinstall other devices one by one
(install one device at one time and then boot the system to see if the
device works successfully).
Press <Delete> to enter BIOS Setup. Select "Load Fail-Safe Defaults"
(or "Load Optimized Defaults"). Select "Save & Exit Setup" to save
changes and exit BIOS Setup.
When the computer is turned on, is the CPU cooler running?
Check if there is display on your monitor.
Check if the keyboard is working properly.
No
The problem is veried and solved.
Yes
Turn off the computer and connect the IDE/SATA devices. Check if the
system can boot successfully.
