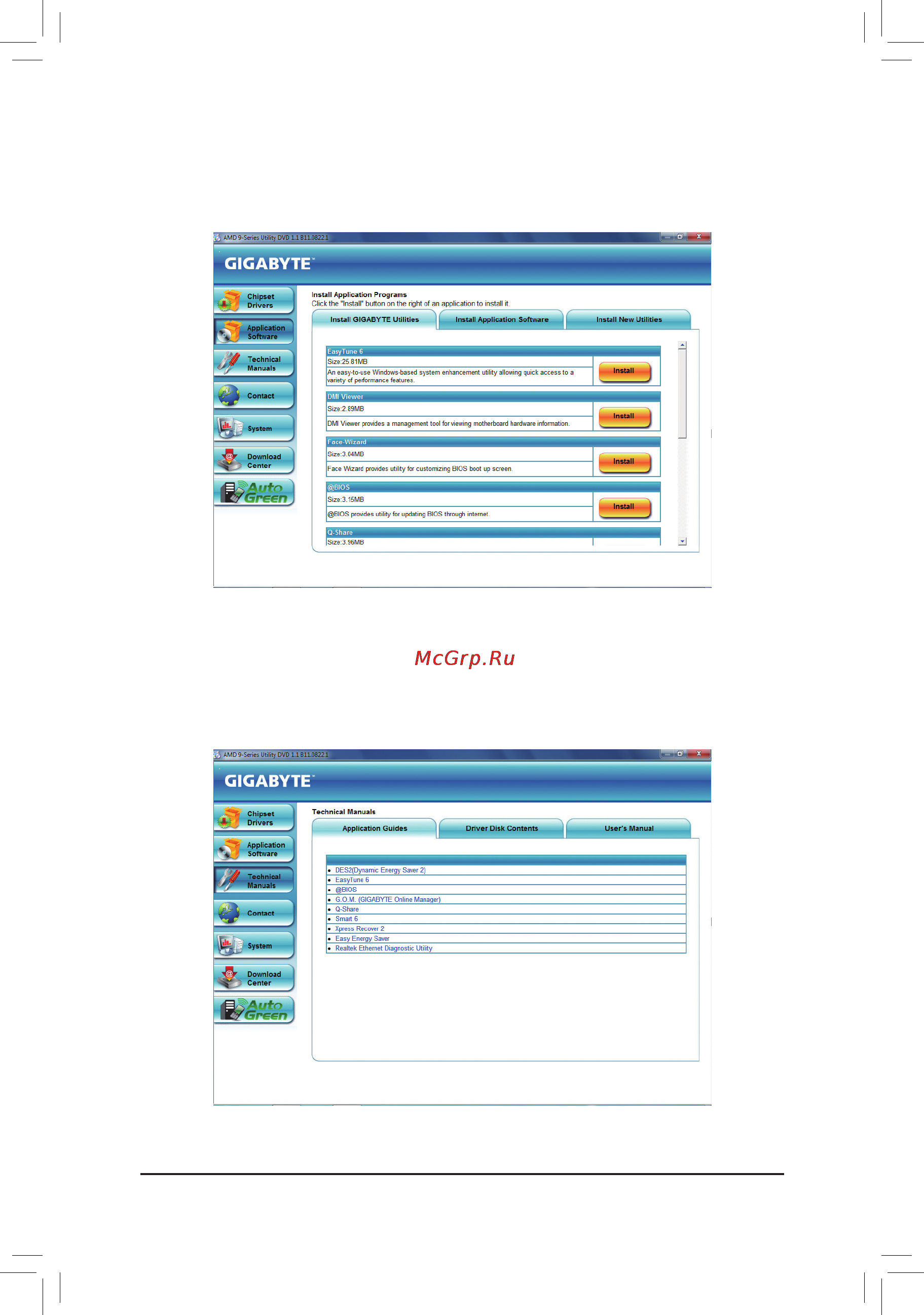

Drivers Installation - 52 -
3-2 Application Software
This page displays all the utilities and applications that GIGABYTE develops and some free software. You can
click the Install button on the right of an item to install it.
3-3 Technical Manuals
This page provides GIGABYTE's application guides, content descriptions for this driver disk, and the motherboard
manuals.
