Hardware Installation - 22 -
1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
3
5

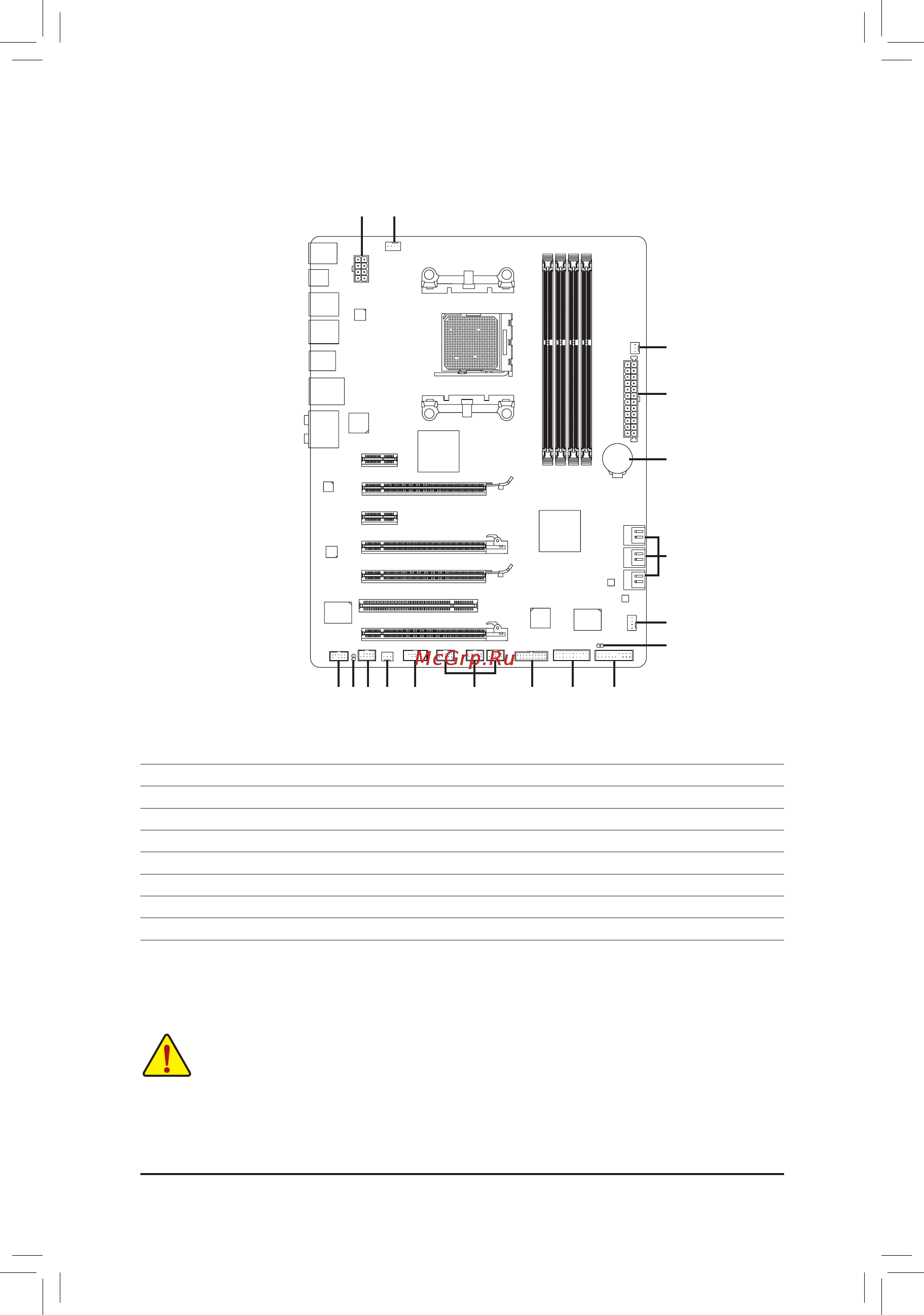

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) SATA3_0/1/2/3/4/5
7) F_PANEL
8) F_AUDIO
9) SPDIF_O
10) F_USB1/F_USB2/F_USB3
11) F_USB30
12) F_1394
13) COMA
14) CLR_CMOS
15) BAT
16) TPM
1
2
15
6
4
14
71611101341298
