- 8 -

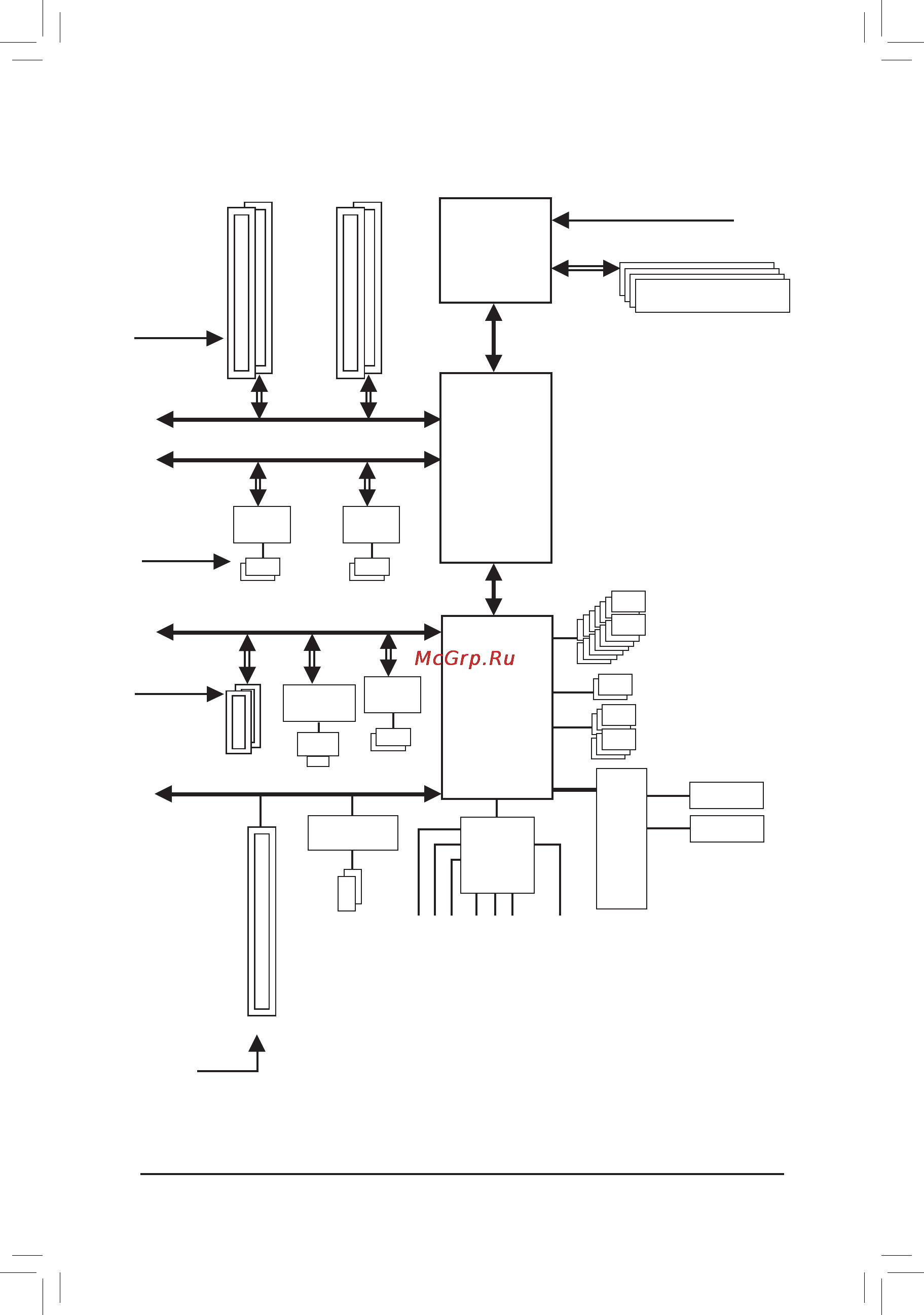

GA-990FXA-UD3 Motherboard Block Diagram
AM3+/AM3 CPU
Hyper Transport 3.0
AMD 990FX
CPU CLK+/- (200 MHz)
DDR3 2000(O.C.)/1866/1600/1333/1066 MHz
Dual Channel Memory
AMD SB950
iTE
IT8720
COM Port
LPC
Bus
6 SATA 6Gb/s
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
1 PCI
PCI Bus
PCI CLK
(33 MHz)
VIA
VT6308
2 IEEE 1394a
Dual BIOS
PCIe CLK
(100 MHz)
PCI Express Bus
LAN
RJ45
x1
PS/2 KB/Mouse
Realtek
RTL8111E
14 USB 2.0/1.1
PCI Express Bus
PCIe CLK
(100 MHz)
2 PCI Express x16
x16
x1
Etron
EJ168
2 USB 3.0/2.0
x1
Marvell
88SE9172
2 SATA 6Gb/s
2 PCI Express x4
x4
PCI Express Bus
PCIe CLK
(100 MHz)
x1
Etron
EJ168
2 USB 3.0/2.0
2 PCI Express x1
x1
