Appendix - 88 -
Step 2:
For the Marvell 88SE9172:
Insert the motherboard driver disk and then browse to the location of the driver. The locations of the drivers
are as follows:
RAID driver for Windows 32-bit: \BootDrv\Marvell\RAID\i386
RAID driver for Windows 64-bit: \BootDrv\Marvell\RAID\amd64
AHCI driver for Windows 32-bit: \BootDrv\Marvell\AHCI\Floppy32
AHCI driver for Windows 64-bit: \BootDrv\Marvell\AHCI\Floppy64
Step 3:

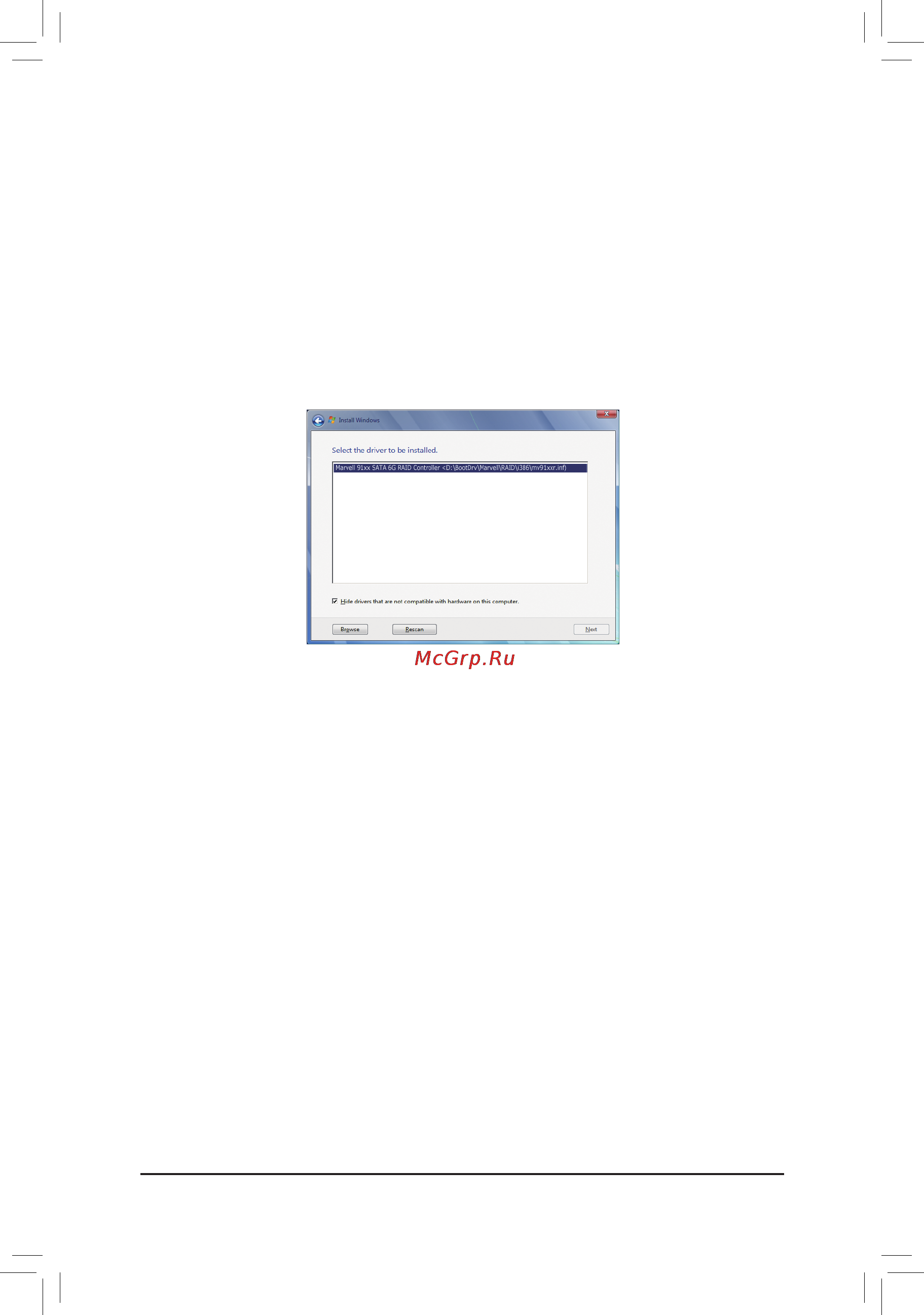

When a screen as shown in Figure 2 appears, select Marvell 91xx SATA 6G RAID Controller and click Next
to load the driver and continue the OS installation
Figure 2
Содержание
- Ga 990fxa ud3 1
- User s manual 1
- Copyright 3
- Disclaimer 3
- Documentation classifications 3
- Identifying your motherboard revision 3
- Box contents optional items 4
- Chapter 1 hardware installation 4
- Chapter 2 bios setup 1 4
- Ga 990fxa ud3 motherboard layout ga 990fxa ud3 motherboard block diagram 4
- Table of contents 4
- Chapter 3 drivers installation 7 5
- Chapter 4 unique features 1 5
- Chapter 5 appendix 5 5
- Box contents 6
- Optional items 6
- Ga 990fxa ud3 7
- Ga 990fxa ud3 motherboard layout 7
- Ga 990fxa ud3 motherboard block diagram 8
- 1 installation precautions 9
- Chapter 1 hardware installation 9
- 2 product specifications 10
- 3 1 installing the cpu 13
- 3 installing the cpu and cpu cooler 13
- 3 2 installing the cpu cooler 15
- 4 1 dual channel memory configuration 16
- 4 installing the memory 16
- 4 2 installing a memory 17
- 5 installing an expansion card 18
- 6 setting up amd crossfire 19
- A system requirements 19
- B connecting the graphics cards 19
- C configuring the graphics card driver 19
- Configuration 19
- 7 back panel connectors 20
- Esata 6gb s connector 20
- Ieee 1394a port 20
- Optical s pdif out connector 20
- Ps 2 keyboard mouse port 20
- Rj 45 lan port 20
- Usb 2 1 port 20
- Usb 3 2 port 20
- Center subwoofer speaker out jack orange 21
- Line in jack blue 21
- Line out jack green 21
- Mic in jack pink 21
- Rear speaker out jack black 21
- Side speaker out jack gray 21
- 8 internal connectors 22
- 2 atx_12v atx 2x4 12v power connector and 2x12 main power connector 23
- 23 hardware installation 23
- To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 23
- With the use of the power connector the power supply can supply enough stable power to all the com ponents on the motherboard before connecting the power connector first make sure the power supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation the 12v power con nector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 23
- 4 5 cpu_fan sys_fan1 sys_fan2 pwr_fan fan headers 24
- A raid 0 or raid 1 configuration requires at least two 24
- A raid 10 configuration requires four hard drives 24
- A raid 5 configuration requires at least three hard drives 24
- Hard drives if more than two hard drives are to be used the total number of hard drives must be an even number 24
- Hardware installation 24 24
- Sata3_0 1 2 3 4 5 sata 6gb s connectors controlled by amd sb950 south bridge 24
- The motherboard has a 4 pin cpu fan header cpu_fan a 3 pin sys_fan2 and a 4 pin sys_ fan1 system fan headers and a 3 pin power fan header pwr_fan most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the motherboard supports cpu fan speed control which requires the use of a cpu fan with fan speed control design for optimum heat dissipation it is recom mended that a system fan be installed inside the chassis 24
- The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standards each sata connector supports a single sata device the amd sb950 south bridge supports raid 0 raid 1 raid 5 raid 10 and jbod refer to chapter 5 configuring sata hard drive s for instructions on configuring a raid array 24
- The total number of hard drives does not have to be an even number 24
- F_panel front panel header 25
- Audio signals will be present on both of the front and back panel audio connections simultane 26
- F_audio front panel audio header 26
- Front panel audio module refer to the instructions on how to activate ac 97 functionality via the audio software in chapter 5 configuring 2 4 5 7 channel audio 26
- Hardware installation 26 26
- Instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer 26
- Ously if you want to mute the back panel audio only supported when using an hd front panel audio module refer to chapter 5 configuring 2 4 5 7 channel audio 26
- Some chassis provide a front panel audio module that has separated connectors on each wire 26
- Spdif_o s pdif out header 26
- The front panel audio header supports hd audio by default if your chassis provides an ac 97 26
- The front panel audio header supports intel high definition audio hd and ac 97 audio you may connect your chassis front panel audio module to this header make sure the wire assignments of the module con nector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 26
- This header supports digital s pdif out and connects a s pdif digital audio cable provided by expan sion cards for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards for example some graphics cards may require you to use a s pdif digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an hdmi display to the graphics card and have digital audio output from the hdmi display at the same time for information about connecting the s pdif digital audio cable carefully read the manual for your expan sion card 26
- 27 hardware installation 27
- Cord from the power outlet to prevent damage to the usb bracket 27
- Do not plug the ieee 1394 bracket 2x5 pin cable into the usb 2 1 header 27
- F_usb1 f_usb2 f_usb3 2 1 usb headers 27
- F_usb30 usb 3 2 header 27
- Prior to installing the usb bracket be sure to turn off your computer and unplug the power 27
- The header conforms to usb 3 2 specification the usb header can provide two usb ports for pur chasing the optional 3 front panel that provides two usb 3 2 ports please contact the local dealer 27
- The headers conform to usb 2 1 specification each usb header can provide two usb ports via an optional usb bracket for purchasing the optional usb bracket please contact the local dealer 27
- When the system is in s4 s5 mode only the usb ports routed to the f_usb1 header can sup port the on off charge function 27
- Coma serial port header 28
- Do not plug the usb bracket cable into the ieee 1394a header prior to installing the ieee 1394a bracket be sure to turn off your computer and unplug the 28
- F_1394 ieee 1394a header 28
- Hardware installation 28 28
- Power cord from the power outlet to prevent damage to the ieee 1394a bracket 28
- The com header can provide one serial port via an optional com port cable for purchasing the op tional com port cable please contact the local dealer 28
- The header conforms to ieee 1394a specification the ieee 1394a header can provide one ieee 1394a port via an optional ieee 1394a bracket for purchasing the optional ieee 1394a bracket please con tact the local dealer 28
- Then attach the other end of the cable to the ieee 1394a device ensure that the cable is se curely connected 28
- To connect an ieee 1394a device attach one end of the device cable to your computer and 28
- Clr_cmos clearing cmos jumper 29
- Always turn off your computer and unplug the power cord before replacing the battery replace the battery with an equivalent one danger of explosion if the battery is replaced with 30
- An incorrect model 30
- Bat battery 30
- Contact the place of purchase or local dealer if you are not able to replace the battery by your 30
- Hardware installation 30 30
- Of the battery the positive side should face up 30
- Self or uncertain about the battery model 30
- The battery provides power to keep the values such as bios configurations date and time information in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost 30
- Tpm trusted platform module header 30
- Used batteries must be handled in accordance with local environmental regulations 30
- When installing the battery note the orientation of the positive side and the negative side 30
- You may connect a tpm trusted platform module to this header 30
- Chapter 2 bios setup 31
- 1 startup screen 32
- A the logo screen default 32
- B the post screen 32
- 2 the main menu 33
- Bios setup program function keys 33
- Sample bios version d4 33
- Advanced bios features 34
- Exit without saving 34
- Integrated peripherals 34
- Keys for the main menu only 34
- Load fail safe defaults 34
- Load optimized defaults 34
- Mb intelligent tweaker m i t 34
- Pc health status 34
- Power management setup 34
- Save exit setup 34
- Set supervisor password 34
- Set user password 34
- Standard cmos features 34
- 3 mb intelligent tweaker m i t 35
- 35 bios setup 35
- Dent on your overall system configurations incorrectly doing overclock overvoltage may result in damage to cpu chipset or memory and reduce the useful life of these components this page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results inadequately altering the settings may result in system s failure to boot if this occurs clear the cmos values and reset the board to default values 35
- Note this item is present only when you install a cpu that supports this feature 35
- System voltage control item to auto to optimize the system voltage settings 35
- When the system voltage optimized item blinks in red it is recommended that you set the 35
- Whether the system will work stably with the overclock overvoltage settings you made is depen 35
- Core performance boos 36
- Cpb rati 36
- Cpu clock ratio 36
- Cpu frequency mhz 36
- Cpu host clock control 36
- Cpu northbridge freq 36
- Ht link frequency 36
- Ht link width 36
- Memory clock 36
- Pcie clock mhz 36
- Set memory clock 36
- Turbo cp 36
- 37 bios setup 37
- Dram configuration 37
- Cas latency 38
- Cpu host clock control cpu frequency mhz set memory clock memory clock 38
- Dcts mode 38
- Ddr3 timing items 38
- Dqs drive strength 38
- Minimum ras active time 38
- Precharge time 38
- Procodt ohms 38
- Ras to cas r w delay 38
- Ras to ras delay 38
- Row cycle time 38
- Row precharge time 38
- T 2t command timing 38
- Trfc0 for dimm1 dimm3 38
- Trfc2 for dimm2 dimm4 38
- Twtr command delay 38
- Write recovery time 38
- Addr cmd drive strength 39
- Addr cmd fine delay 39
- Addr cmd setup time 39
- Bank interleaving 39
- Channel interleaving 39
- Cke drive strength 39
- Cke fine delay 39
- Cke power down mode 39
- Cke setup time 39
- Cs odt drive strength 39
- Cs odt fine delay 39
- Cs odt setup time 39
- Data drive strength 39
- Dqs training control 39
- Memclk drive strength 39
- Memclock tri stating 39
- Cpu nb vid control 40
- Cpu pll voltage control 40
- Cpu voltage control 40
- Ddr vtt voltage control 40
- Dram voltage control 40
- Ht link voltage control 40
- Nb pcie pll voltage ctrl 40
- Nb voltage control 40
- Normal cpu vcore 40
- System voltage control 40
- 4 standard cmos features 41
- 41 bios setup 41
- Access mode access mode sets the hard drive access mode options are auto default chs lba large 41
- Access mode access mode sets the hard drive access mode options are auto default large 41
- Auto lets the bios automatically detect sata devices during the post default 41
- Capacity capacity approximate capacity of the currently installed hard drive 41
- Configure your sata devices by using one of the two methods below configure your sata devices by using one of the two methods below 41
- Date mm dd yy 41
- Extended ide drive extended ide drive 41
- Ide auto detection 41
- Ide channel 0 1 master slave 41
- Ide channel 0 1 master slave ide channel 0 1 master slave 41
- Ide channel 2 4 master slave 41
- Ide hdd auto detection 41
- None if no sata devices are used set this item to none so the system will skip 41
- Sets the system date the date format is week read only month date and year select the desired field and use the up arrow or down arrow key to set the date 41
- Sets the system time for example 1 p m is 13 0 0 select the desired field and use the up arrow or down arrow key to set the time 41
- The detection of the device during the post for faster system startup the detection of the device during the post for faster system startup 41
- Time hh mm ss 41
- To autodetect the parameters of the sata device on this channel 41
- Halt on 42
- Memory 42
- 43 bios setup 43
- 5 advanced bios features 43
- Amd c1e support 43
- Auto auto if a cpu that supports hardware c1e is installed the bios will automatically enable the 43
- Disabled disabled disables the c1e function 43
- Enabled enabled if a cpu that supports hardware c1e is installed the bios will automatically enable the 43
- Enables or disables the c1e cpu power saving function in system halt state when enabled the power consumption will be reduced during system halt state 43
- Hardware c1e function if not the bios will enable the software c1e function hardware c1e function if not the bios will enable the software c1e function 43
- Hardware c1e function if not the c1e function will be disabled default hardware c1e function if not the c1e function will be disabled default 43
- Note this item is present only when you install a cpu that supports this feature 43
- Amd k8 cool quiet control 44
- Cpu core 0 44
- Cpu core 1 2 3 4 44
- Cpu core control 44
- Cpu unloc 44
- Efi cd dvd boot option 44
- First second third boot device 44
- Hard disk boot priority 44
- Password check 44
- Virtualization 44
- Away mode 45
- Full screen logo show 45
- Hdd s m a r t capability 45
- Init display first 45
- Iommu support 45
- 6 integrated peripherals 46
- Ahci ahci configures the sata controller to ahci mode advanced host controller interface 46
- Ahci is an interface specification that allows the storage driver to enable advanced ahci is an interface specification that allows the storage driver to enable advanced 46
- As sata type the mode depends on the as sata type the mode depends on the onchip sata type settings 46
- Bios setup 46 46
- Configures the operating mode of the sata3_0 sata3_3 connectors 46
- Enable native ide mode if you wish to install operating systems that support native enable native ide mode if you wish to install operating systems that support native 46
- Enables or disables raid 5 support for the sata controller integrated in the amd sb950 south bridge this option is configurable only when onchip sata type is set to raid 46
- Enables or disables the integrated sata controller default enabled 46
- Enables or disables the sata 6gb s function integrated in the south bridge when set to disabled the sata controller will operate in sata 3gb s mode default enabled 46
- Ide ide disables raid for the sata controller and configures the sata controller to ide 46
- Mode default mode default 46
- Mode mode 46
- Native ide native ide allows the sata controller to operate in native ide mode default 46
- Onchip sata controller amd sb950 sata3_0 sata3_5 connectors 46
- Onchip sata port4 5 type amd sb950 sata3_4 and sata3_5 connectors 46
- Onchip sata raid5 support amd sb950 sata3_0 sata3_5 connectors 46
- Onchip sata type amd sb950 sata3_0 sata3_3 connectors 46
- Onchip sata3 support 46
- Raid raid enables raid for the sata controller 46
- Serial ata features such as native command queuing and hot plug serial ata features such as native command queuing and hot plug 46
- This option is configurable only when onchip sata type is set to raid or ahci configures the oper ating mode of the integrated sata3_4 and sata3_5 connectors 46
- Board f_usb30 header board f_usb30 header 47
- Chip esata connectors on the back panel 47
- Esata3 controller marvell 88se9172 chip esata connectors on the back panel 47
- Esata3 ctrl mode 47
- F_usb30 controller etron ej168 usb controller usb 3 2 ports routed to the on 47
- Marvell 88se917 47
- Onchip sata port as esp 47
- Port0 as esp port1 as esp port2 as esp port3 as esp 47
- Port4 as esp port5 as esp 47
- Onboard lan boot rom 48
- Onboard lan function 48
- Smart lan lan cable diagnostic function 48
- Onboard 1394 function 49
- Onboard audio function 49
- Onboard serial port 1 49
- R_usb30 controller etron ej168 usb controller usb 3 2 ports on the back panel 49
- Usb controllers 49
- Usb legacy function 49
- Usb storage function 49
- 7 power management setup 50
- Acpi suspend type 50
- Allows the system to be awakened from acpi s3 sleep state by a wake up signal from the installed usb device default enabled 50
- Allows the system to be awakened from an acpi sleep state by a wake up signal from a modem that supports wake up function default disabled 50
- Bios setup 50 50
- Button is pressed for less than 4 seconds the system will enter suspend mode button is pressed for less than 4 seconds the system will enter suspend mode 50
- Configures the way to turn off the computer in ms dos mode using the power button 50
- Delay 4 sec delay 4 sec press and hold the power button for 4 seconds to turn off the system if the power 50
- In s1 sleep state the system appears suspended and stays in a low power mode in s1 sleep state the system appears suspended and stays in a low power mode 50
- In s3 sleep state the system appears to be off and consumes less power than in in s3 sleep state the system appears to be off and consumes less power than in 50
- Instant off instant off press the power button and then the system will be turned off instantly default 50
- Its working state exactly where it was left off its working state exactly where it was left off 50
- Modem ring resume 50
- Note supported on windows 7 vista operating system only 50
- S1 pos s1 pos enables the system to enter the acpi s1 power on suspend sleep state 50
- S3 str s3 str enables the system to enter the acpi s3 suspend to ram sleep state default 50
- Soft off by power button 50
- Specifies the acpi sleep state when the system enters suspend 50
- The s1 state when signaled by a wake up device or event the system resumes to the s1 state when signaled by a wake up device or event the system resumes to 50
- The system can be resumed at any time the system can be resumed at any time 50
- Usb wake up from s3 50
- Ac back function 51
- Erp support 51
- Hpet suppor 51
- Kb power on password 51
- Pme event wake up 51
- Power on by alarm 51
- Power on by keyboard 51
- Power on by mouse 51
- 8 pc health status 52
- Bios setup 52 52
- Case opened 52
- Displays the detection status of the chassis intrusion detection device attached to the motherboard ci header if the system chassis cover is removed this field will show yes otherwise it will show no to clear the chassis intrusion status record set reset case open status to enabled save the settings to the cmos and then restart your system 52
- Enables or disables the cpu overheating protection function when enabled the cpu core voltage and ratio will be reduced when the cpu is overheated default enabled 52
- Hardware thermal control 52
- Keeps or clears the record of previous chassis intrusion status enabled clears the record of previous chassis intrusion status and the case opened field will show no at next boot default disabled 52
- Reset case open status 52
- Cpu smart fan control 53
- Cpu smart fan mode 53
- Cpu system power fan fail warning 53
- Cpu warning temperature 53
- Current cpu system power fan speed rpm 53
- Current system cpu temperature 53
- Current voltage v vcore ddr3 1 v 3 v 12v 53
- System smart fan control 53
- 10 load optimized defaults 54
- 9 load fail safe defaults 54
- Bios setup 54 54
- Key to load the optimal bios default settings the bios defaults settings help the system to operate in optimum state always load the optimized defaults after updating the bios or after clearing the cmos values 54
- Key to load the safest bios default settings in case system instability occurs you may try to load fail safe defaults which are the safest and most stable bios settings for the motherboard 54
- 11 set supervisor user password 55
- 55 bios setup 55
- Again the message password disabled will appear indicating the password has been can celled 55
- Supervisor password 55
- The bios setup program allows you to specify two separate passwords 55
- User password 55
- When a system password is set and the when a system password is set and the password check item in advanced bios features is set to setup you must enter the supervisor password for entering bios setup and making bios changes 55
- When the when the password check item is set to system you must enter the supervisor password or user password at system startup and when entering bios setup 55
- When the when the password check item is set to system you must enter the supervisor password or user password at system startup to continue system boot in bios setup you must enter the supervisor password if you wish to make changes to bios settings the user password only allows you to view the bios settings but not to make changes 55
- 12 save exit setup 56
- 13 exit without saving 56
- Bios setup 56 56
- To return to the bios setup main menu 56
- 1 installing chipset drivers 57
- Chapter 3 drivers installation 57
- 2 application software 58
- 3 technical manuals 58
- 4 contact 59
- 5 system 59
- 6 download center 60
- 7 new utilities 60
- 1 xpress recovery2 61
- Before you begin 61
- Chapter 4 unique features 61
- Installation and configuration 61
- System requirements 61
- 2 1 updating the bios with the q flash utility 64
- 2 bios update utilities 64
- A before you begin 64
- 65 unique features 65
- B updating the bios 65
- Do not turn off or restart the system when the system is reading updating the bios do not remove the usb flash drive or hard drive when the system is updating the bios 65
- Key during the post to access q flash 65
- Make sure the bios update file matches your motherboard model 65
- Step 3 when the update process is complete press any key to return to the main menu 65
- The save main bios to drive option allows you to save the current bios file q flash only supports usb flash drive or hard drives using fat32 16 12 file system if the bios update file is saved to a hard drive in raid ahci mode or a hard drive attached to 65
- To begin the bios update the monitor will display the update process 65
- When updating the bios choose the location where the bios file is saved the following procedure as sumes that you save the bios file to a usb flash drive 65
- To exit q flash and reboot the system as the system boots you should see the new bios version is present on the post screen 66
- To load bios defaults 66
- To load bios defaults system will re detect all peripheral devices after a bios update so we recommend that you reload bios defaults 66
- To save settings to cmos and exit bios setup the proce dure is complete after the system restarts 66
- Unique features 66 66
- 2 2 updating the bios with the bios utility 67
- A before you begin 67
- B using bios 67
- C after updating the bios 67
- 3 easytune 6 68
- Gigabyte s easytune 6 is a simple and easy to use interface that allows users to fine tune their system settings or do overclock overvoltage in windows environment the user friendly easytune 6 interface also includes tabbed pages for cpu and memory information letting users read their system related information without the need to install additional software 68
- Tab function 68
- Tabs information 68
- The easytune 6 interface 68
- Unique features 68 68
- 4 easy energy saver 69
- Meter mode button information table 69
- The easy energy saver interface a meter mode 69
- B total mode 70
- C stealth mode 70
- Total mode button information table 70
- 5 q share 71
- Directions for using q share 71
- Options descriptions 71
- 6 smart recovery 72
- 7 auto green 73
- 73 unique features 73
- Auto green is an easy to use tool that provides users with simple options to enable system power savings via a bluetooth cell phone when the phone is out of the range of the computer s bluetooth receiver the sys tem will enter the specified power saving mode 73
- Configuring other bluetooth settings 73
- Configuring the bluetooth cell phone key 73
- Selecting a system energy saving mode 73
- The configuration dialog box 73
- 8 cloud oc 74
- A launching cloud oc 74
- And logging in to the cloud oc server you can easily access three major functions of cloud oc including tuner system tweaking system info system monitoring and control system status control 74
- B directions for us 74
- Bluetoot 74
- Cloud o 74
- Is an easy to use overclocking utility designed for system overclock ing via virtually any internet connected device such as a smart phone iphone note book pc etc by simply connecting to an internet browser via lan wireless lan or 74
- Unique features 74 74
- 1 1 configuring amd sb950 sata controllers 75
- 1 configuring sata hard drive s 75
- A installing sata hard drive s in your computer 75
- Before you begin 75
- Chapter 5 appendix 75
- To configure sata hard drive s follow the steps below 75
- Appendix 76 76
- B configuring sata controller mode in bios setup 76
- Figure 1 76
- Make sure to configure the sata controller mode correctly in system bios setup 76
- Step 2 save changes and exit bios setup 76
- The bios setup menus described in this section may differ from the exact settings for your moth erboard the actual bios setup menu options you will see shall depend on the motherboard you have and the bios version 76
- To enter bios setup during the post power on self test make sure onchip sata controller is enabled to enable raid for the sata3_0 1 2 3 connectors set on chip sata type to raid to enable raid for the sata3_4 5 connectors set onchip sata type to raid and set onchip sata port4 5 type to as sata type figure 1 to enable support for raid 5 set onchip sata raid5 support to enabled 76
- C configuring raid set in raid bios 77
- Appendix 78 78
- Figure 4 78
- Figure 5 78
- In the ld define menu use the up or down arrow key to move to an item for further configuration figure 5 78
- To access the ld define menu 78
- Appendix 80 80
- Delete an array the delete array menu option allows for deletion of disk array assignments 80
- Deleting an existing disk array could result in loss of data record all array information including the array type the disk members and stripe block size in case you wish to undo a deletion 80
- Figure 10 80
- Figure 9 80
- If you are sure to delete the array or other keys to abort 80
- In the main menu to enter the delete ld menu then highlight the array you 80
- The view ld defination menu will appear as shown in figure 10 showing which drives are assigned to 80
- To return to main menu 80
- View drive assignments the view drive assignments option in the main menu displays whether the attached hard drives are as signed to a disk array or are unassigned under the assignment column drives are labeled with their as signed disk array or shown as free if unassigned 80
- 1 2 configuring marvell 88se9172 sata controller 81
- 81 appendix 81
- A installing sata hard drive s in your computer 81
- Attach one end of the sata signal cable to the rear of the sata hard drive and the other end to available sata port on the motherboard the marvell 88se9172 sata controller controls the esata connectors on the back panel 81
- B configuring sata controller and raid mode in bios setup 81
- Figure 1 81
- Step 2 save changes and exit bios setup 81
- The bios setup menus described in this section may differ from the exact settings for your moth erboard the actual bios setup menu options you will see shall depend on the motherboard you have and the bios version 81
- To enter bios setup during the post in bios setup go to inte grated peripherals and make sure esata3 controller is enabled to enable raid set esata3 ctrl mode to raid figure 1 81
- Appendix 82 82
- C configuring a raid array in raid bios 82
- Enter the raid bios setup utility to configure a raid array skip this step and proceed to the installation of windows operating system for a non raid configuration 82
- Figure 2 82
- Figure 3 82
- On the main screen of the raid setup utility figure 3 use the left or right arrow key to move through tabs 82
- To en ter the raid setup utility 82
- 83 appendix 83
- Figure 4 83
- Figure 5 83
- On next 83
- On the create vd item 83
- Appendix 84 84
- Figure 6 84
- Figure 7 84
- To begin creating the array 84
- To cancel figure 7 84
- To display options set the required items in sequence and press the down arrow key to proceed to the next item sequence 1 raid level select a raid level options include raid 0 stripe and raid 1 mirror 2 stripe size select the stripe block size options include 32 kb 64 kb and 128 kb 3 quick init select whether to quickly erase old data on the hard drives when creating the array 4 cache mode select write back or write through cache 5 vd name enter an array name with 1 10 letters letters cannot be special characters 84
- 85 appendix 85
- Delete the raid array 85
- Figure 8 85
- Figure 9 85
- To clear the mbr or press other keys to ignore 85
- To confirm figure 9 85
- To confirm now you can proceed to install the operating system 85
- When completed the raid tab will display the new array figure 8 85
- 1 3 installing the sata raid ahci driver and operating system 87
- A installing windows 7 vista 87
- B installing windows xp 89
- Appendix 90 90
- Figure 4 90
- 93 appendix 93
- For the marvell 88se9172 93
- On spare management 93
- Step 2 93
- To confirm the new hard drive is now set as a spare drive 93
- To enter the raid setup utility on the main screen 93
- Turn off your computer and replace the failed hard drive with a new one restart your computer to enable an automatic rebuild in the operating system you have to set the new hard drive as a spare drive in the raid setup utility first 93
- 2 1 configuring 2 4 5 7 channel audio 95
- 2 configuring audio input and output 95
- A configuring speakers 95
- B configuring sound effect 96
- C activating an ac 97 front panel audio module 96
- D muting the back panel audio for hd audio only 96
- 2 2 configuring s pdif out 97
- 2 3 enabling the dolby home theater function 98
- 2 4 configuring microphone recording 99
- Enabling stereo mix 100
- 2 5 using the sound recorder 101
- A recording sound 101
- B playing the recorded sound 101
- 3 1 frequently asked questions 102
- 3 troubleshooting 102
- Appendix 102 102
- To read more faqs for your motherboard please go to the support downloads faq page on gigabyte s website 102
- 103 appendix 103
- 3 2 troubleshooting procedure 103
- If you encounter any troubles during system startup follow the troubleshooting procedure below to solve the problem 103
- Appendix 104 104
- If the procedure above is unable to solve your problem contact the place of purchase or local deal er for help or go to the support downloads technical support page to submit your question our customer service staff will reply you as soon as possible 104
- 3 3 regulatory statements 105
- Our commitment to preserving the environment 105
- Regulatory notices 105
- Restriction of hazardous substances rohs directive statement 105
- Waste electrical electronic equipment weee directive statement 105
- Weee symbol statement 105
- 111 appendix 111
- Contact us 111
- Appendix 112 112
- Gigabyte global service system 112
- To submit a technical or non technical sales market ing question please link to http ggts gigabyte com tw then select your language to enter the system 112
