Chapter 13 Spanning Tree Protocol
GS1920 Series User’s Guide
134

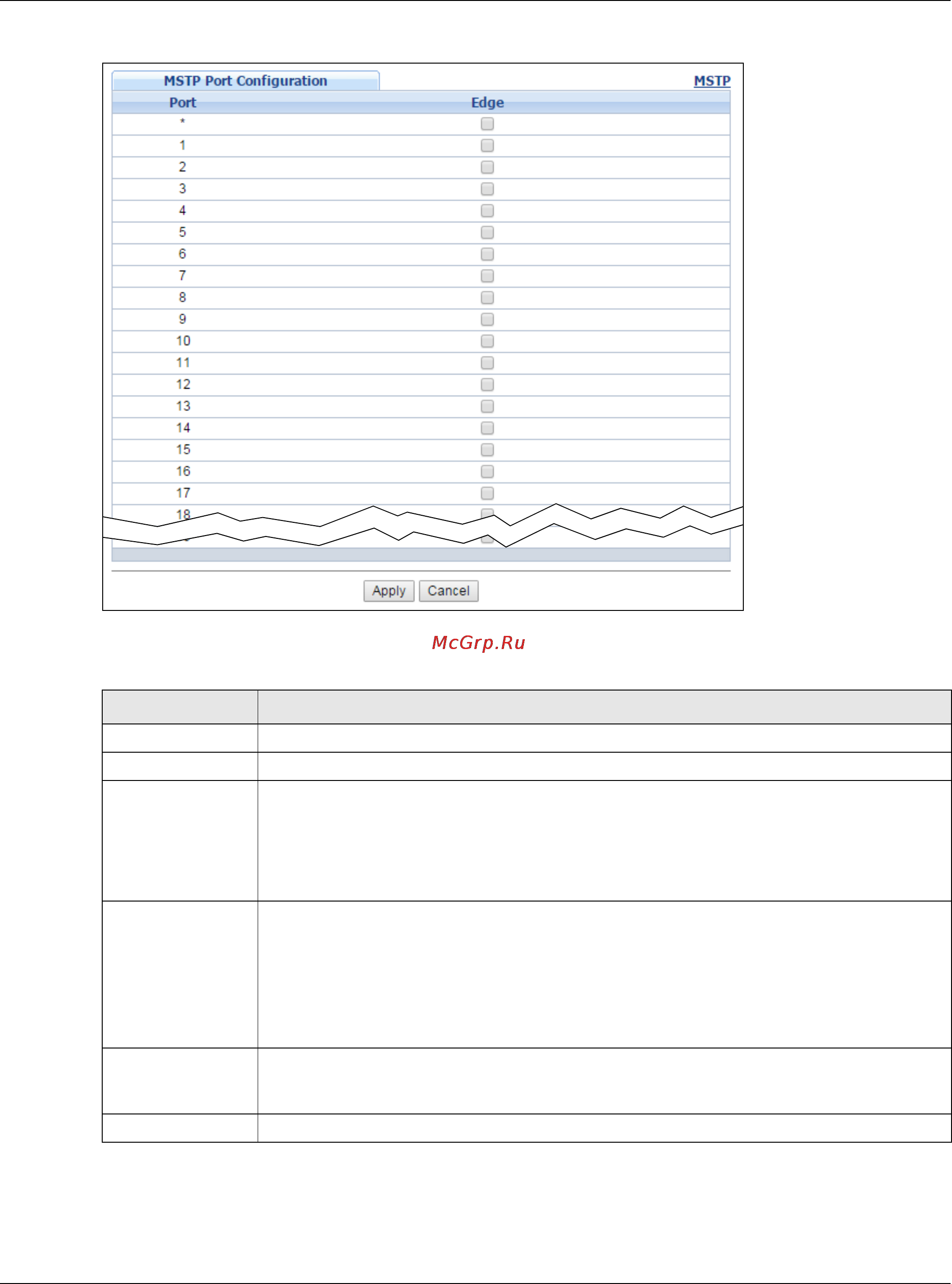

Figure 98 Advanced Application > Spanning Tree Protocol > MSTP > Port
The following table describes the labels in this screen.
Table 53 Advanced Application > Spanning Tree Protocol > MSTP > Port
LABEL DESCRIPTION
MSTP Click MSTP to edit MSTP settings on the Switch.
Port This field displays the port number.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row
first to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Edge Select this check box to configure a port as an edge port when it is directly attached to a
computer. An edge port changes its initial STP port state from blocking state to
forwarding state immediately without going through listening and learning states right
after the port is configured as an edge port or when its link status changes.
Note: An edge port becomes a non-edge port as soon as it receives a Bridge Protocol Data
Unit (BPDU).
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top navigation
panel to save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
