Chapter 44 MAC Table
GS1920 Series User’s Guide
361

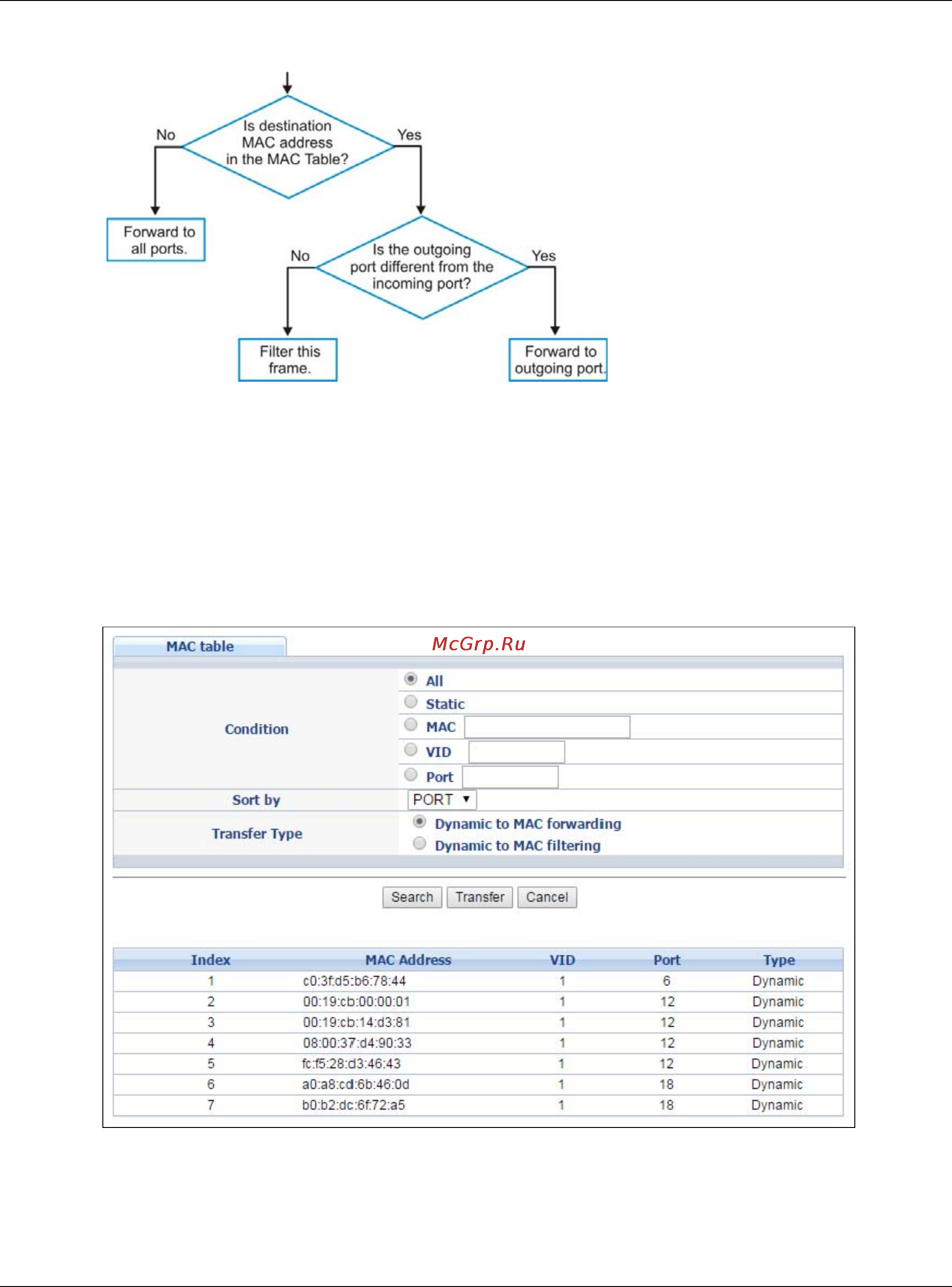

Figure 257 MAC Table Flowchart
44.2 Viewing the MAC Table
Use this screen to check whether the MAC address is dynamic or static.
Click Management > MAC Table in the navigation panel to display the following screen.
Figure 258 Management > MAC Table
