Chapter 5 Initial Setup Example
GS1920 Series User’s Guide
43

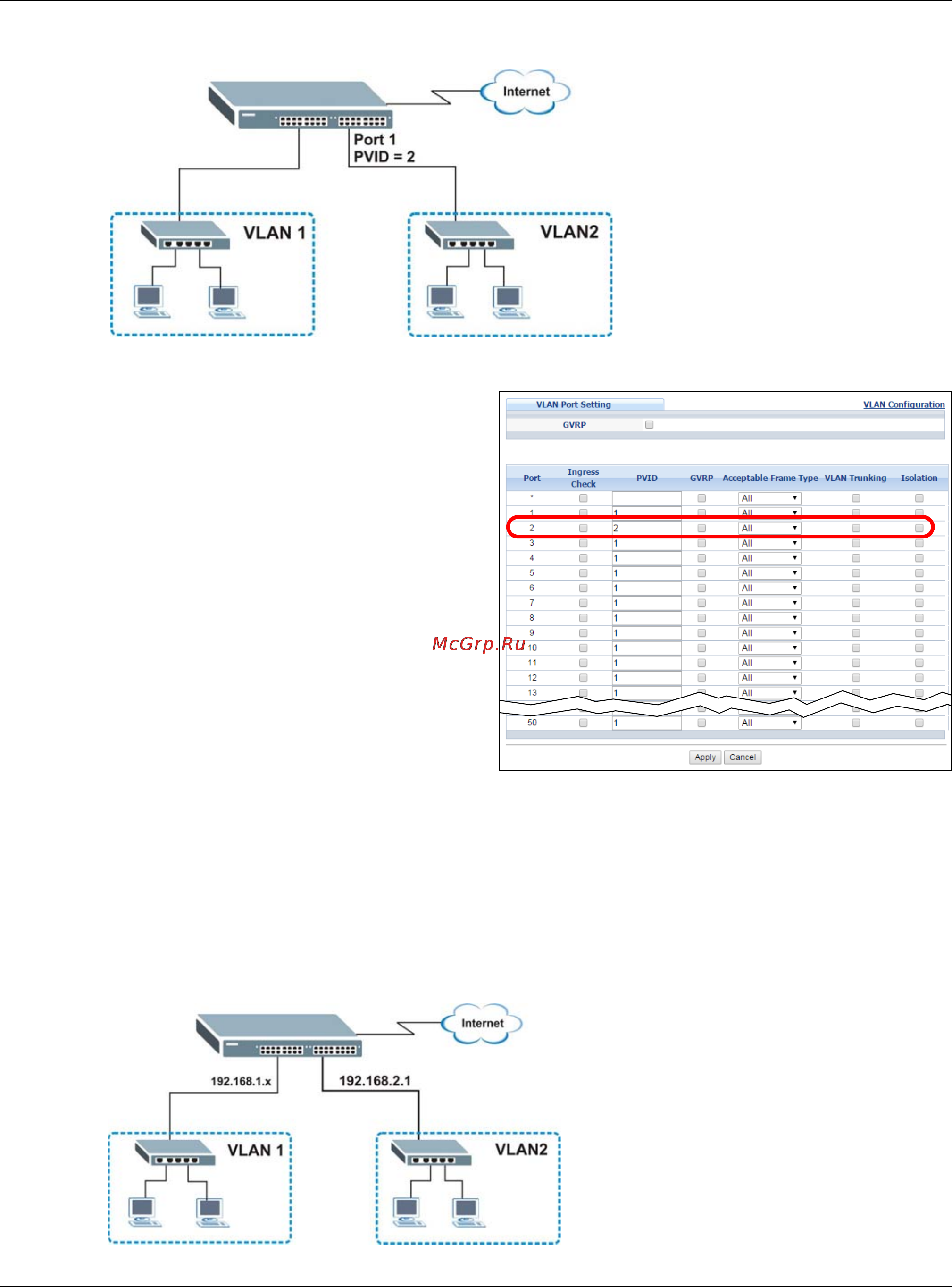

Figure 27 Initial Setup Network Example: Port VID
1 Click Advanced Applications > VLAN >
VLAN Configuration in the navigation
panel. Then click the VLAN Port Setup link.
2 Enter 2 in the PVID field for port 2 and click
Apply to save your changes back to the run-
time memory. Settings in the run-time
memory are lost when the Switch’s power is
turned off.
5.2 Configuring Switch Management IP Address
The default management IP address of the Switch is 192.168.1.1. You can configure another IP
address in a different subnet for management purposes. The following figure shows an example.
Figure 28 Initial Setup Example: Management IP Address
