Chapter 39 Access Control
GS1920 Series User’s Guide
345

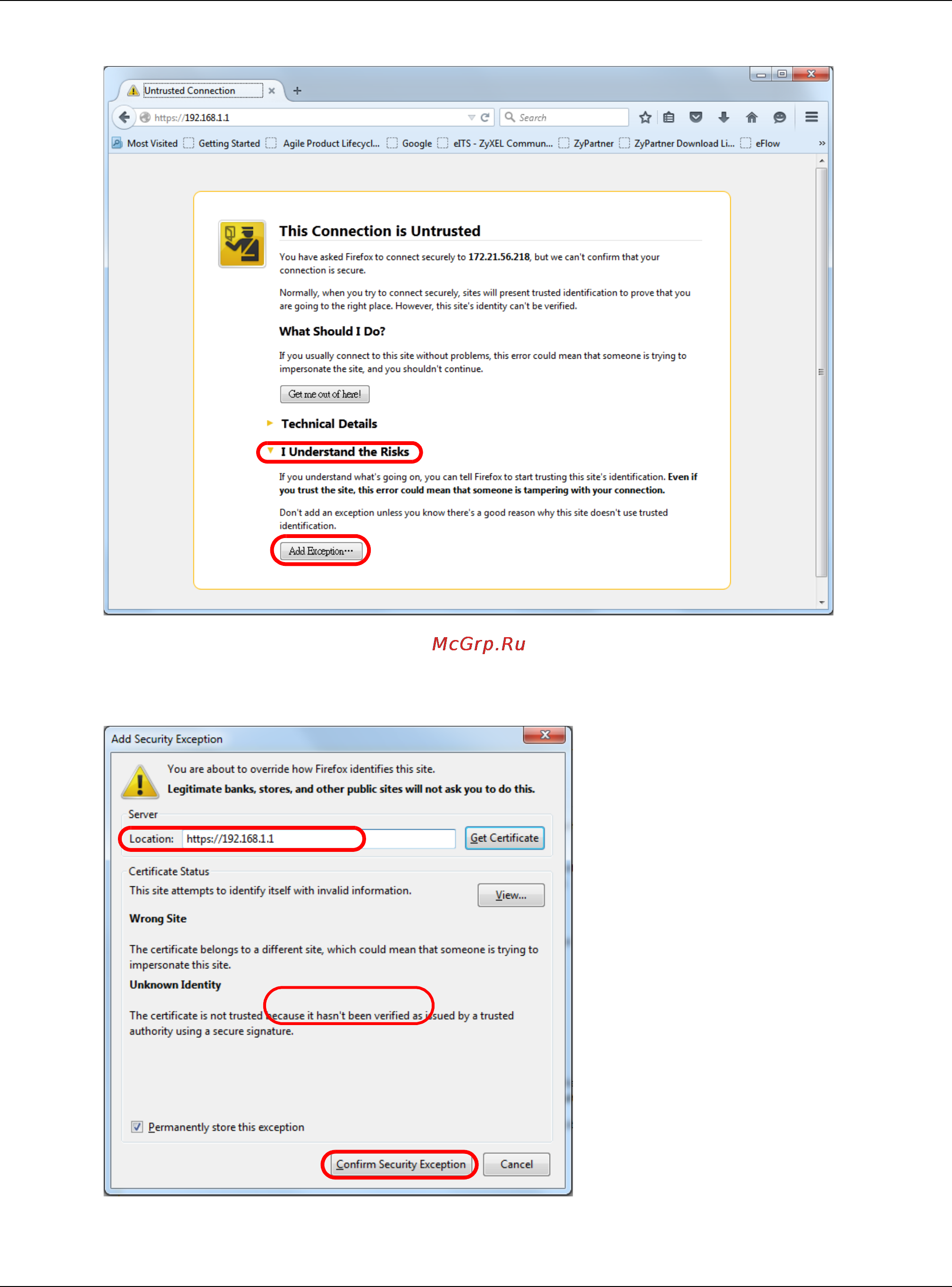

Figure 246 Security Alert (Mozilla Firefox)
Confirm the HTTPS server URL matches. Click Confirm Security Exception to proceed to the web
configurator login screen.
Figure 247 Security Alert (Mozilla Firefox)
EXAMPLE
