Zyxel GS1920-48HP [207/405] Example
![Zyxel GS1920-48HP [207/405] Example](/views2/1168631/page207/bgcf.png)
Chapter 24 Multicast
GS1920 Series User’s Guide
207

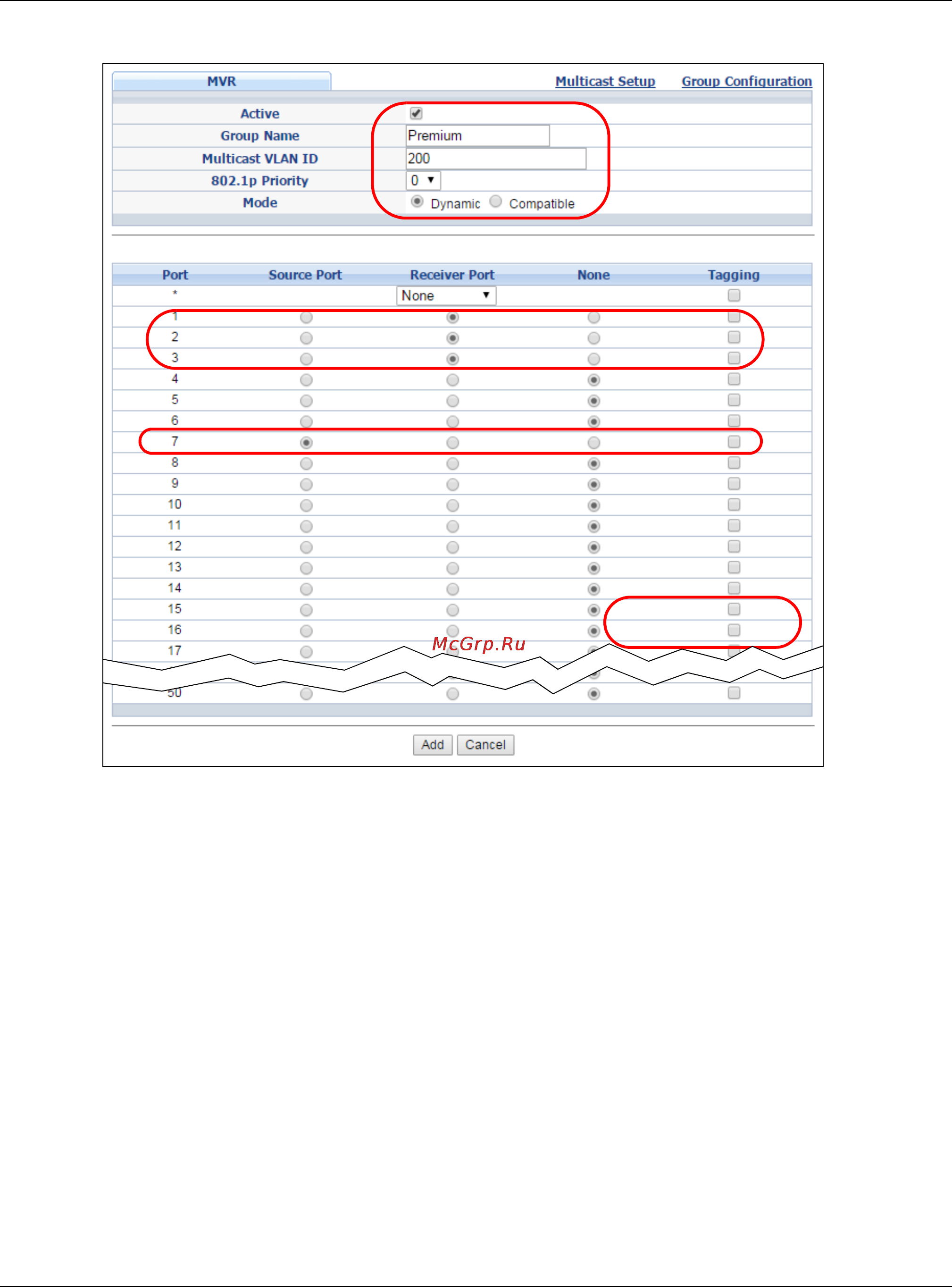

Figure 145 MVR Configuration Example
To set the Switch to forward the multicast group traffic to the subscribers, configure multicast group
settings in the Group Configuration screen. The following figure shows an example where two
IPv4 multicast groups (News and Movie) are configured for the multicast VLAN 200.
EXAMPLE
