Chapter 33 Link Layer Discovery Protocol (LLDP)
GS1920 Series User’s Guide
291
33.7 LLDP-MED Configuration
Click Advanced Application > LLDP > LLDP-MED Configuration to display the screen as shown
next.

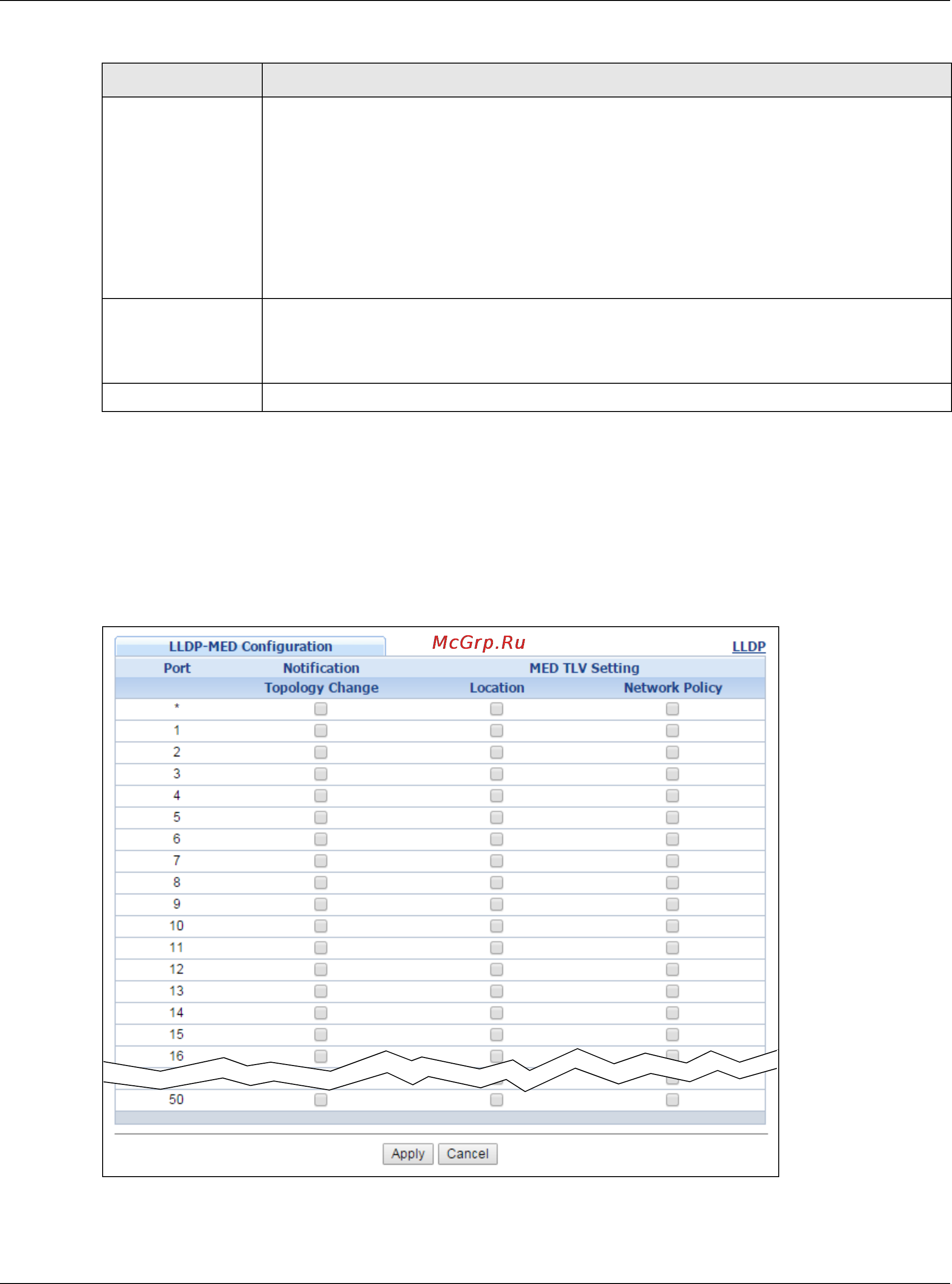

Figure 202 Advanced Application > LLDP > LLDP-MED Configuration
Power Via MDI Note: For PoE models only. The Power Via MDI TLV allows network management to
advertise and discover the MDI power support capabilities of the sending port on the
remote device.
•Port Class
• MDI Supported
•MDI Enabled
• Pair Controlable
• PSE Power Pairs
•Power Class
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 136 Advanced Application > LLDP > LLDP Configuration > Org-specific TLV Setting
LABEL DESCRIPTION
