Chapter 30 Error Disable
GS1920 Series User’s Guide
263

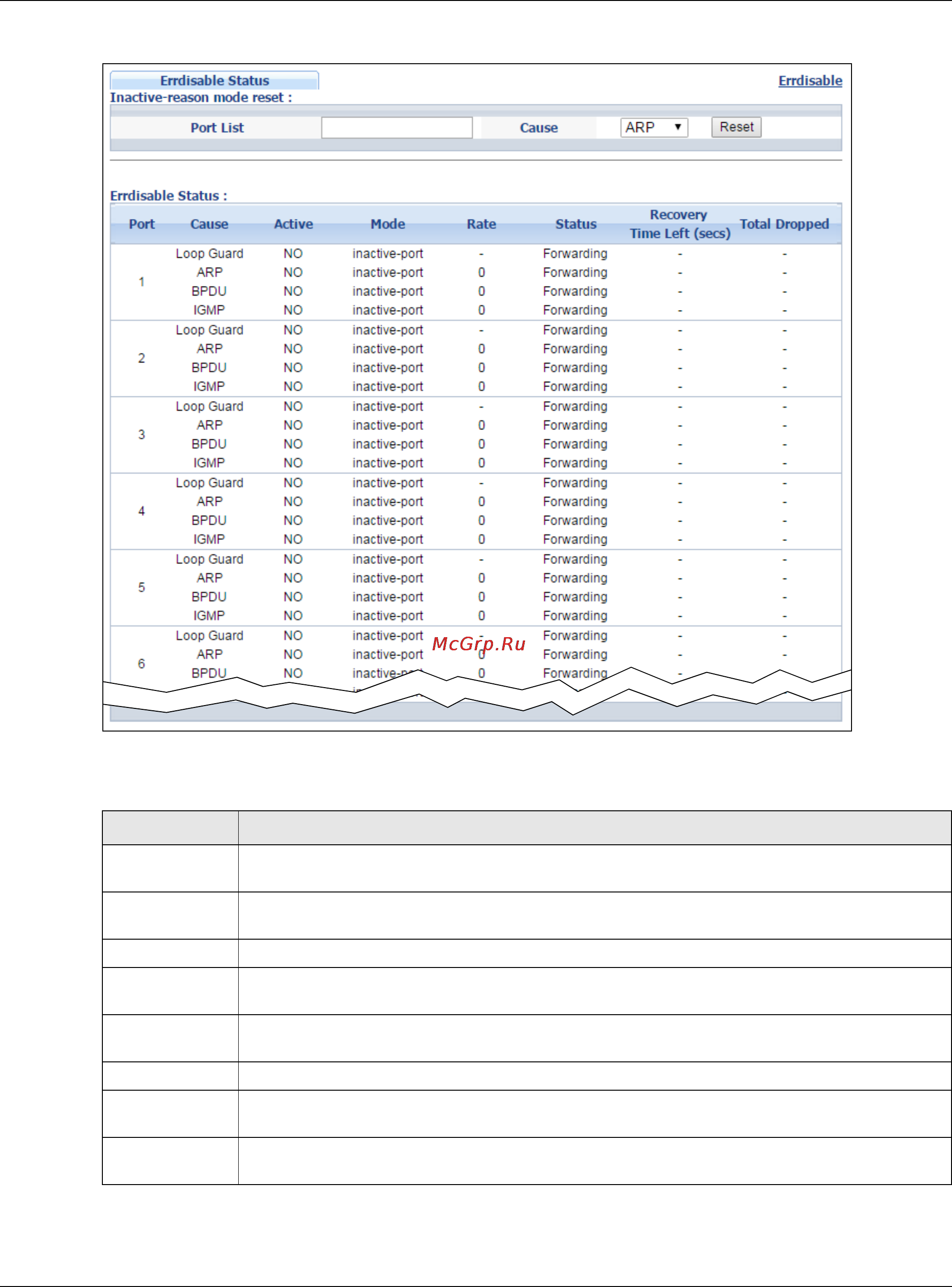

Figure 183 Advanced Application > Errdisable > Errdisable Status
The following table describes the labels in this screen.
Table 121 Advanced Application > Errdisable > Errdisable Status
LABEL DESCRIPTION
Inactive-reason
mode reset
Port List Enter the number of the port(s) (separated by a comma) on which you want to reset
inactive-reason status.
Cause Select the cause of inactive-reason mode you want to reset here.
Reset Press to reset the specified port(s) to handle ARP, BPDU or IGMP packets instead of ignoring
them, if the port(s) is in inactive-reason mode.
Errdisable
Status
Port This is the number of the port on which you want to configure Errdisable Status.
Cause This displays the type of the control packet received on the port or the feature enabled on
the port and causing the Switch to take the specified action.
Active This field displays whether the control packets (ARP, BPDU, and/or IGMP) on the port is
being detected or not. It also shows whether loop guard is enabled on the port.
