ZyWALL USG Support Notes
10
All contents copyright (c) 2010 ZyXEL Communications Corporation.
up routing rules to fulfill your network scenario requirements.

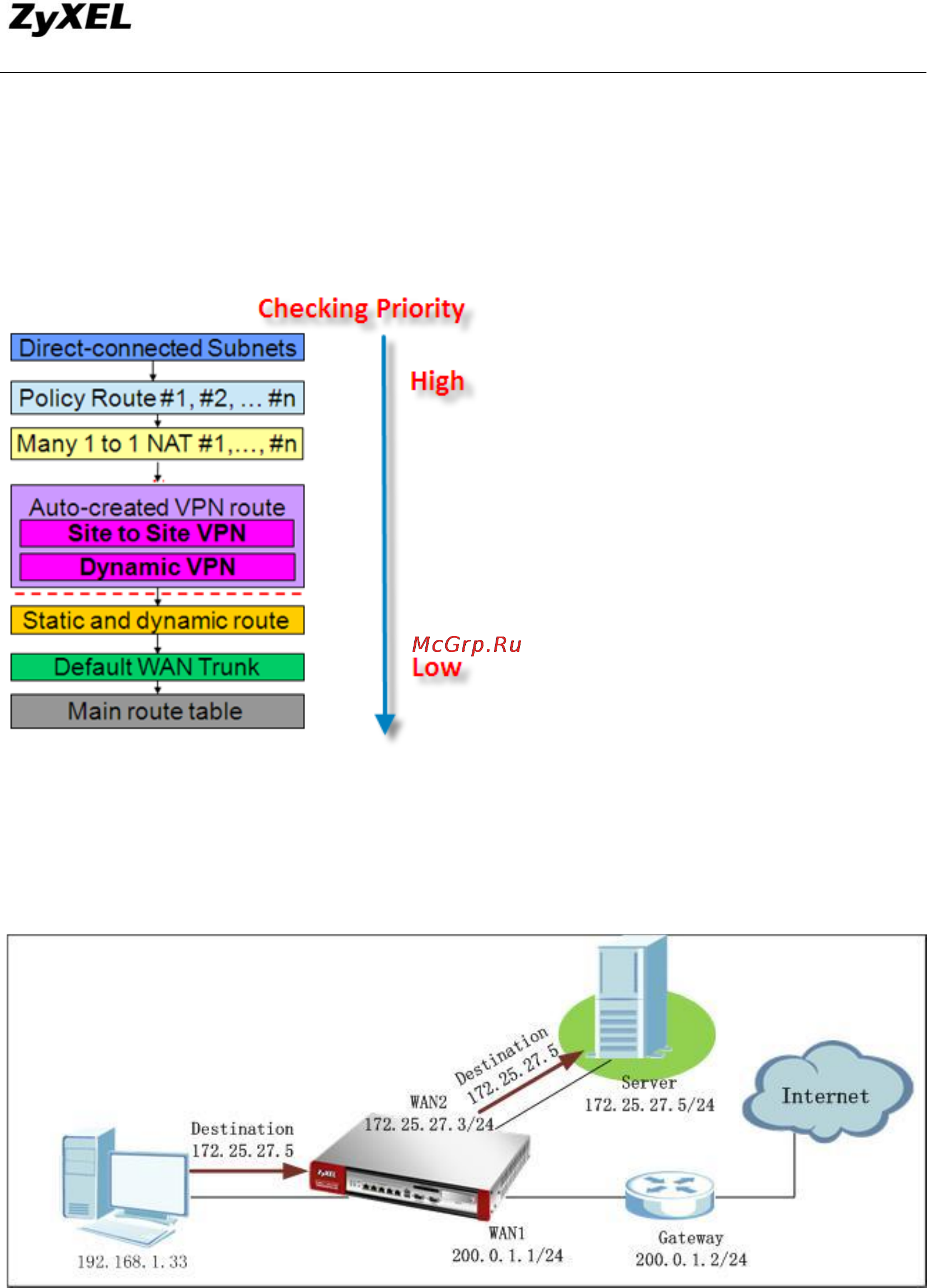

The picture below shows the routing priority in USG ZyWALL. The priorities
determine which routing the USG will take according to the traffic‟s source,
destination, and service type.
1. USG directly connected routing takes first priority over all other routings.
Take the following scenario as an example.
On the USG ZyWALL, a policy route is set:
Incoming interface: LAN1
Source Address: LAN subnet 192.168.1.0/24
Destination Address: Any
Service: Any
Next Hop: WAN1 (200.0.1.1)
SNAT: Outgoing Interface
