ZyWALL USG Support Notes
13
All contents copyright (c) 2010 ZyXEL Communications Corporation.

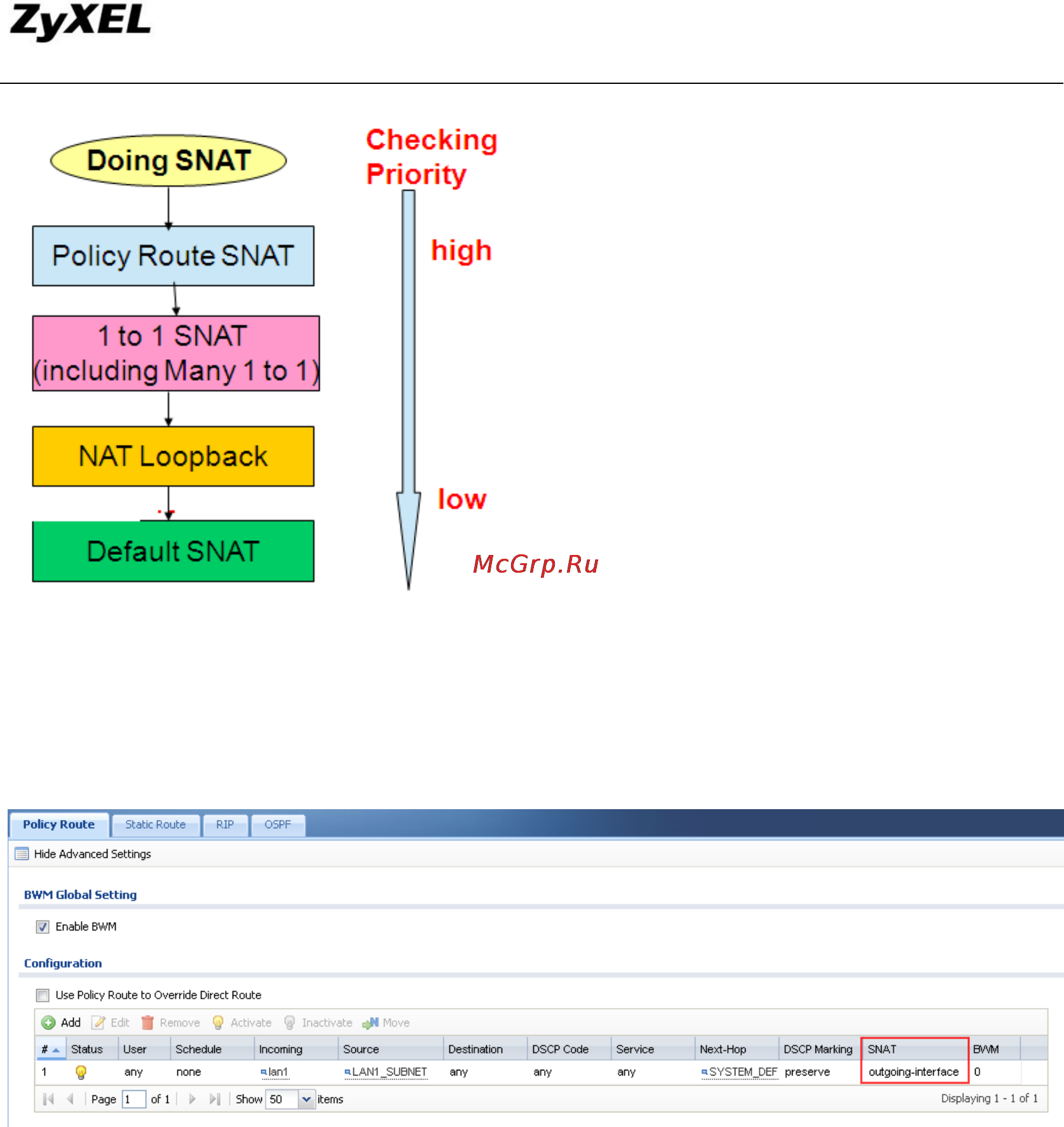

1. Policy Route SNAT takes the first priority.
Usually we will set SNAT for traffic in Polity Route.
You can set SNAT to map the original source address to:
Outgoing interface
Customized single address
Customized group address
Outgoing interface:
