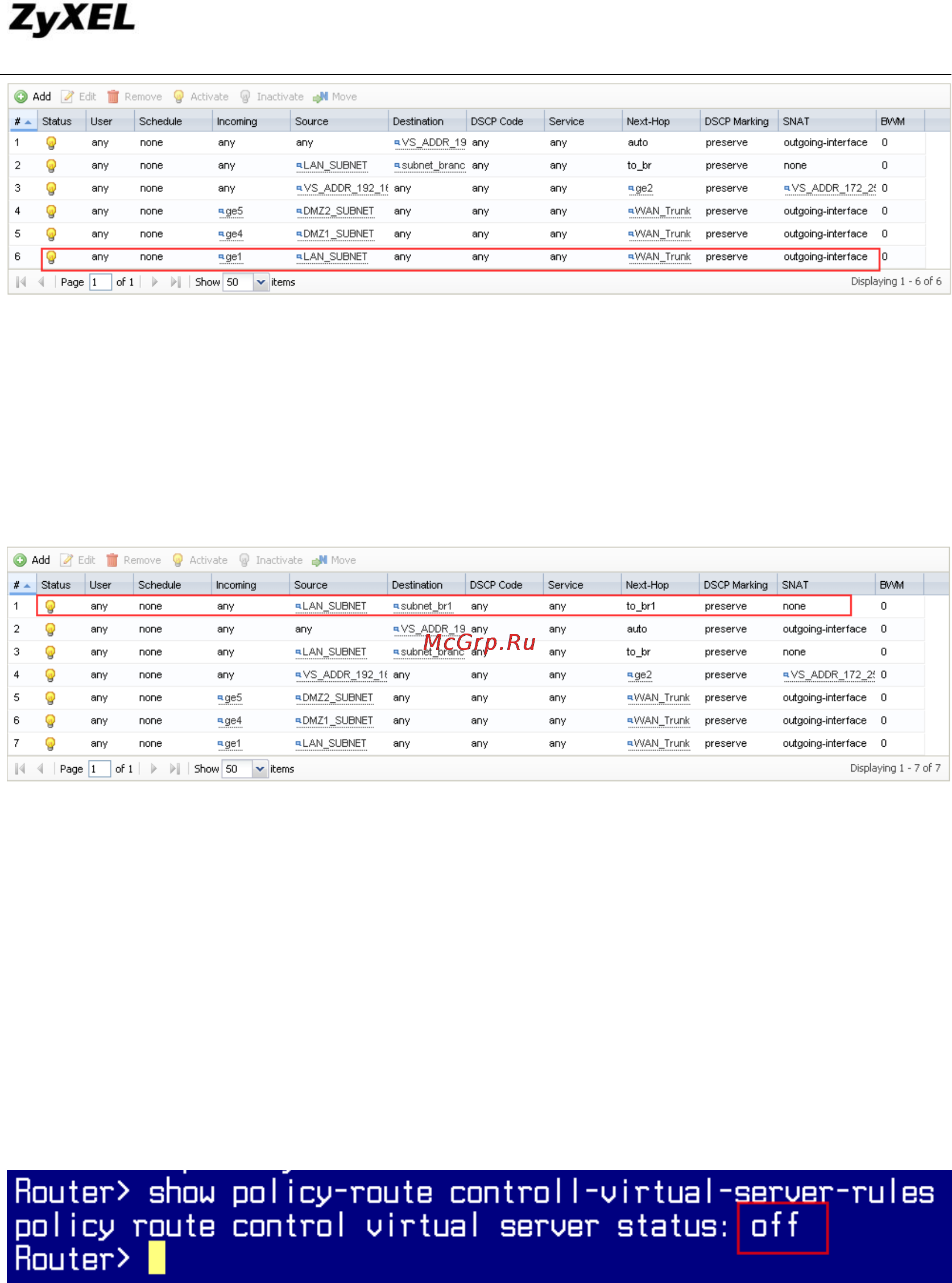

To solve the routing issues, there‟re two ways:
Way 1 --- Keep the original policy routes, and add new policy routes for the newly
added IPSec VPN rules.
For 1:1 NAT mapping rules, there‟s a CLI can change the priority of policy route and
1:1 NAT rule.
[no] policy controll-virtual-server-rules activate
This function will be disabled automatically when the system detects the firmware is
upgraded from v2.1x to v2.20.
So after firmware upgrade from v2.1x to v2.20, the routing priority table becomes
below:
