ZyWALL USG Support Notes
105
All contents copyright (c) 2010 ZyXEL Communications Corporation.

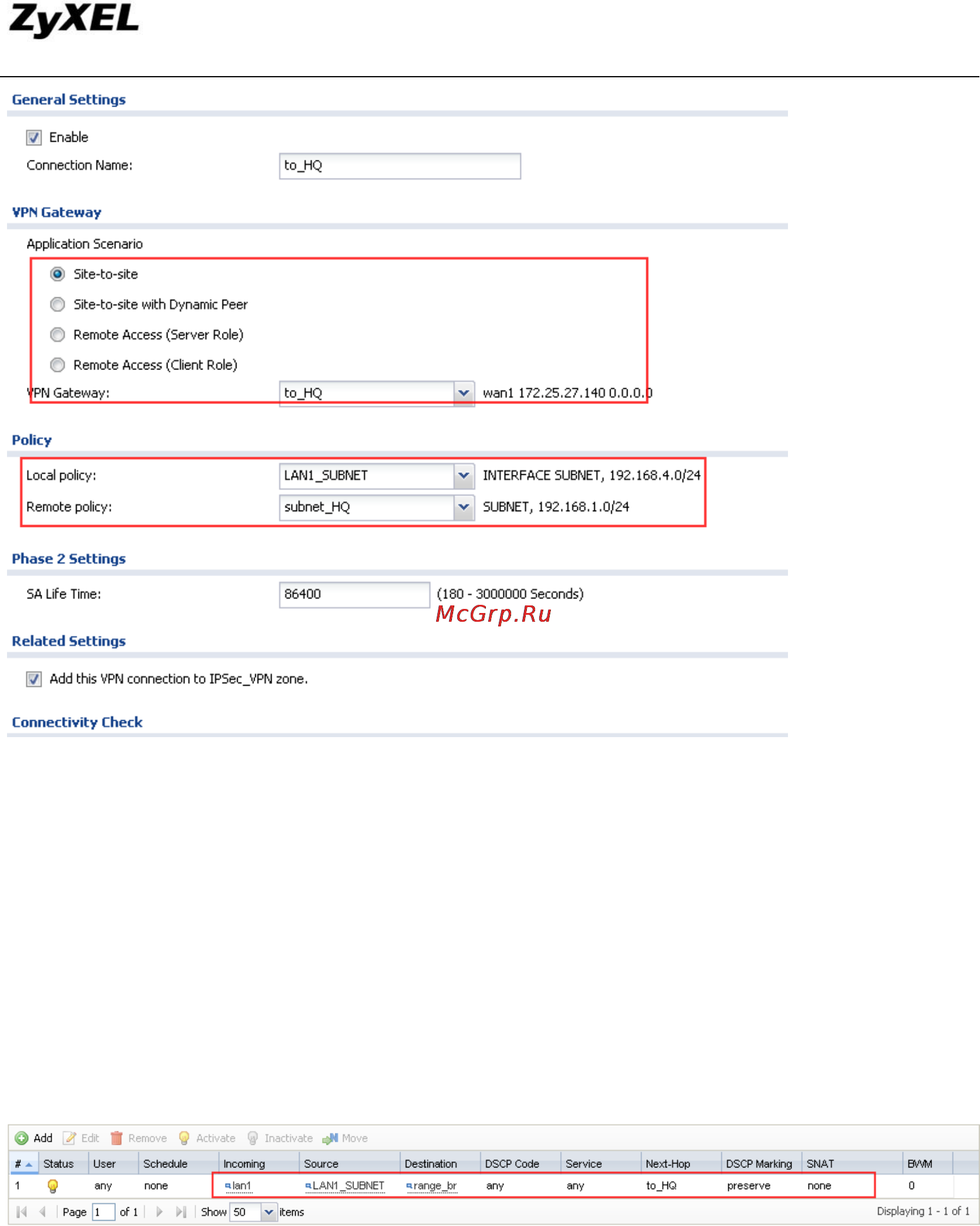

Step5. Go to Configuration > Network > Routing>Policy Route, add a policy route
rule to route traffic from local subnets to all branch offices to IPSec VPN tunnel
to_HQ.
Incoming interface: LAN1
Source: LAN1_Subnet (192.168.4.0/24)
Destination: range_br(192.168.1.0~192.168.5.255)
Next Hop: VPN tunnel to_HQ
On Br2
Step1. Go to Monitor > System Status > Interface Status, check the interface IP
information for later use in IPSec VPN configuration.
