ZyWALL USG Support Notes
16
All contents copyright (c) 2010 ZyXEL Communications Corporation.

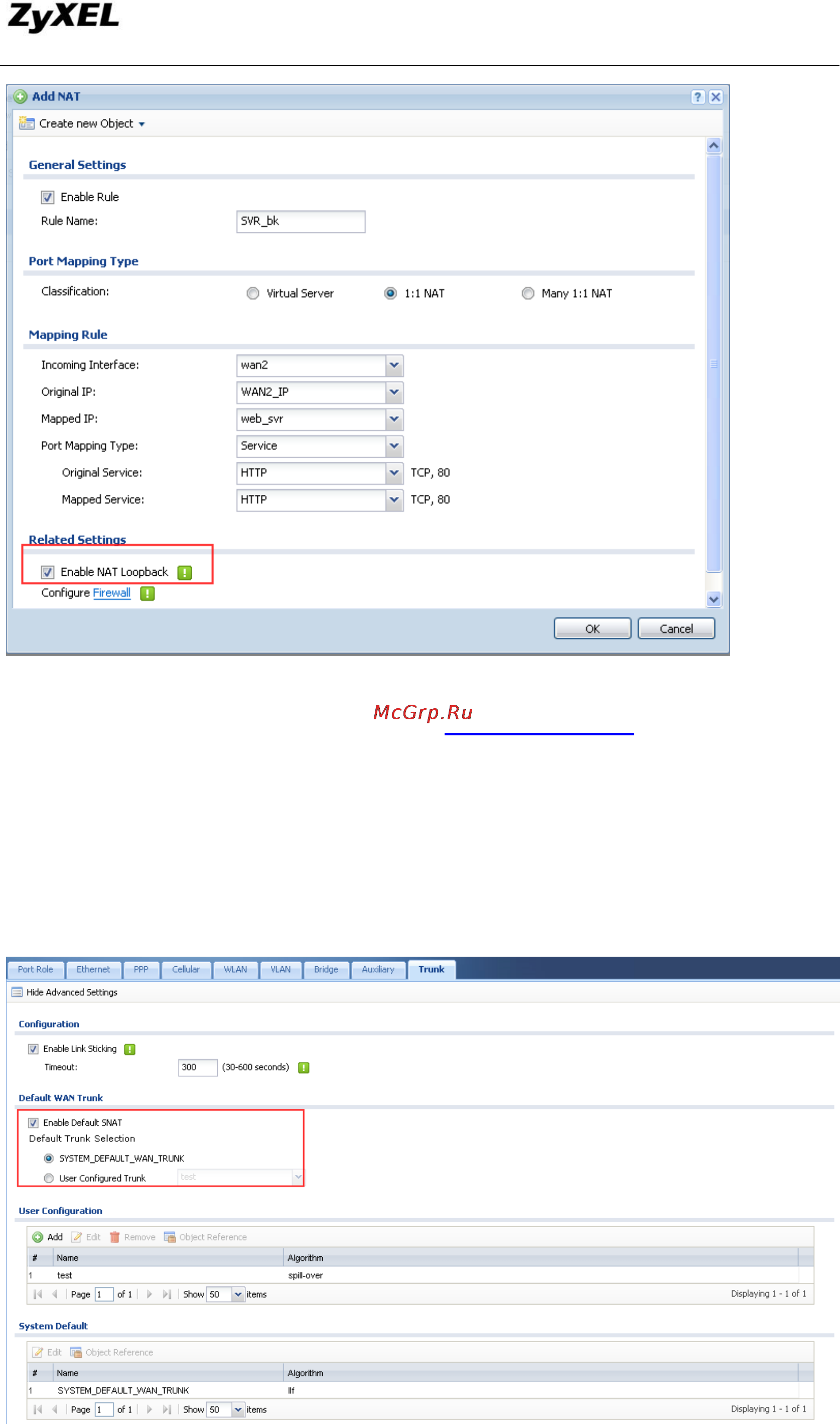

For detailed explanation, please go to section 1.6 NAT Loopback.
4. Default SNAT takes the last priority. USG ZyWALL uses the Default WAN Trunk
to route traffic from intranet to internet, and maps the traffic‟s original address to
the outgoing interface in the Default WAN Trunk.
Go to Configuration > Network > Interface > Trunk.
