Setup strategy 2:
1. Disable bridge interfaces on the two USG.
2. Connect the USG‟s according to topology.
3. Configure Device HA and add bridge interfaces into Device HA.
4. Activate Device HA.
5. Reactivate bridge interfaces.
Q08. I upgraded my USG firmware from v2.12 to v2.20. There
seem to be some routing issues after the upgrade. I know
there’re some changes in routing design in v2.20. How can I
solve the routing issues related with firmware upgrade?
In previous firmware version, outing going traffic from local to internet, NAT 1:1
mapping, NAT Loopback and VPN site-to-site routings all need policy route to

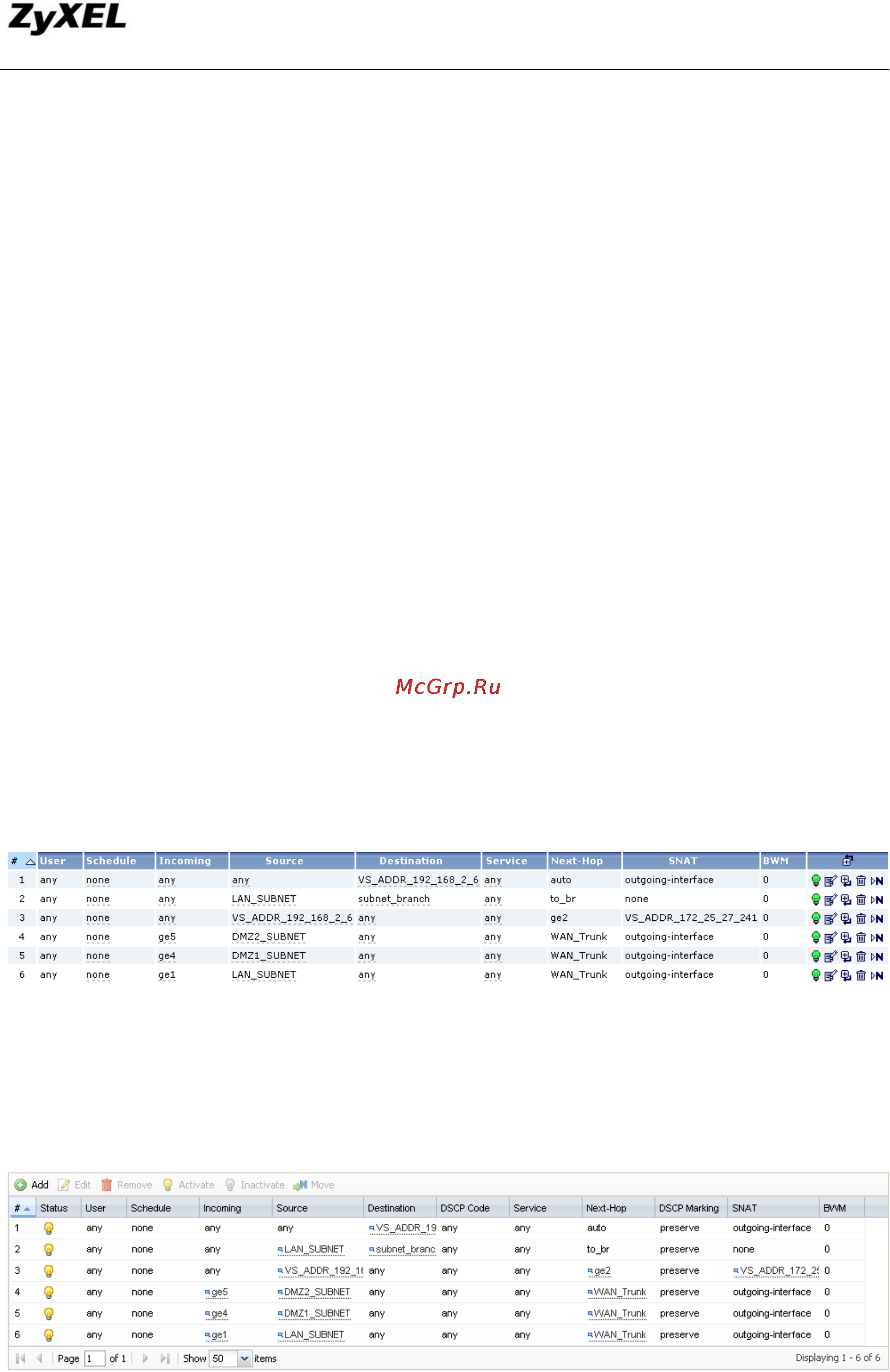

achieve. Please see the screenshot below as an example.
After upgrading firmware version to v2.20, the policy routes configured in old
firmware will be kept.
In v2.20, the routings of outgoing traffic from local to internet, NAT 1:1 mapping,
NAT Loopback, and VPN site-to-site routing can all be done by system automatically
created routes. And different routings and SNAT have the priority shown below:
