ZyWALL USG Support Notes
22
All contents copyright (c) 2010 ZyXEL Communications Corporation.

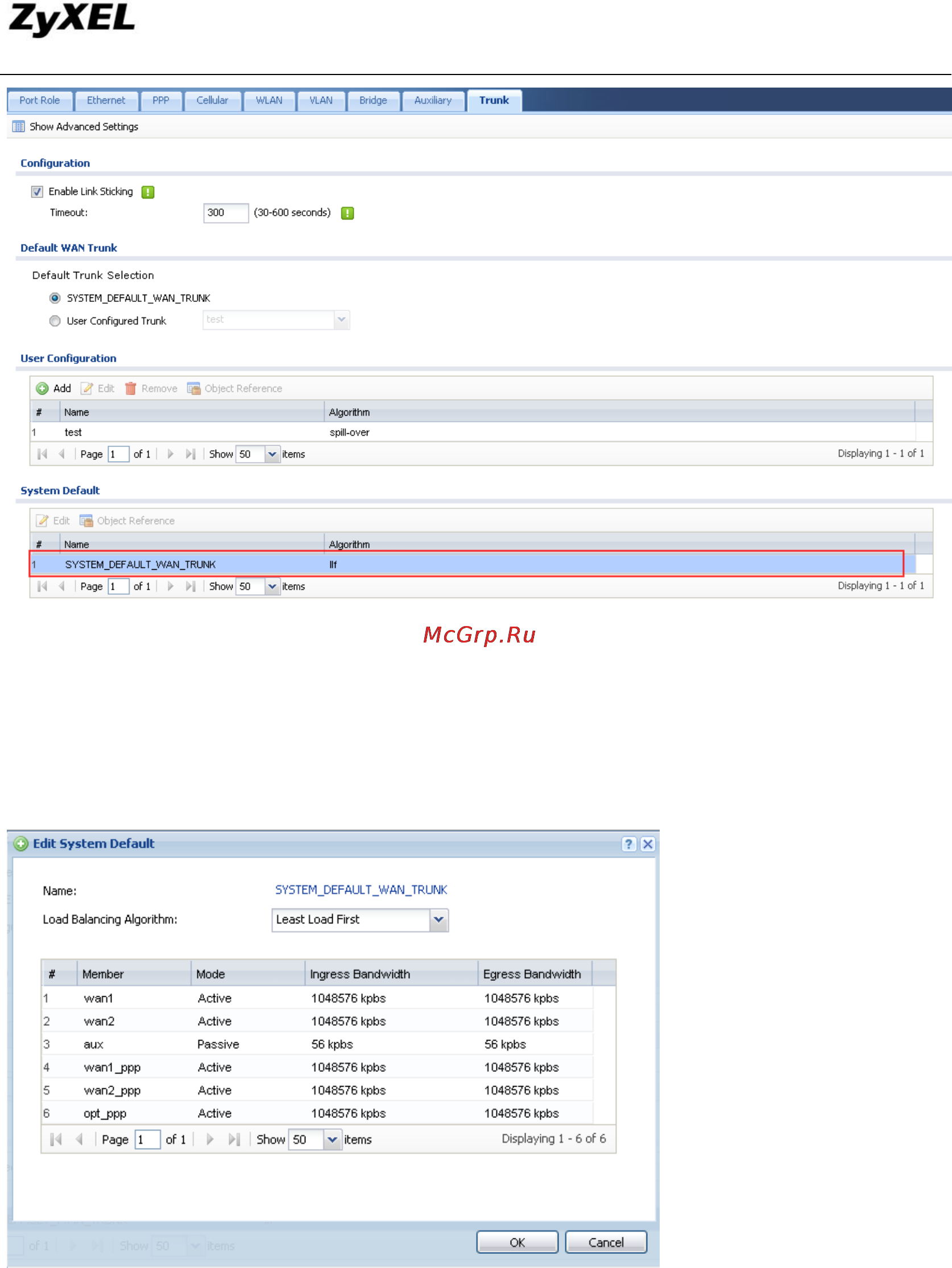

Double click this default WAN trunk, you will find it consists of all the external
interfaces.
Please be noted that all ppp interfaces and aux interface are external type by default.
User can also add customized default WAN trunk. Go to Configuration > Network >
Interface > Trunk. Add customized WAN trunk in User Configuration, then choose
User Configuration Trunk, and select the customized WAN trunk.
