ZyWALL USG Support Notes
51
All contents copyright (c) 2010 ZyXEL Communications Corporation.

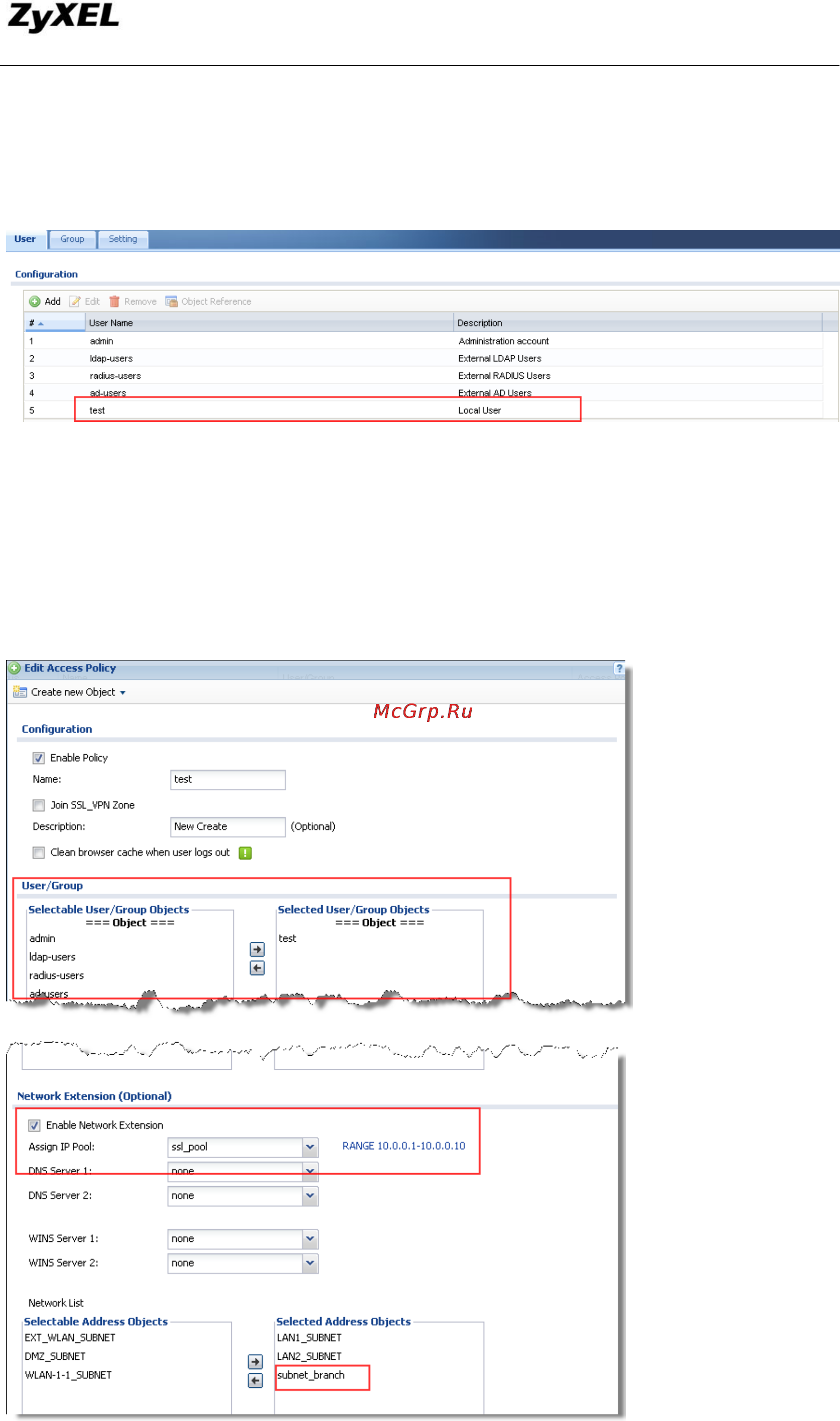

Step2. Go to Configuration > Object > User/Group, add SSL VPN user account, e.g.
“test”.
Step3. Go to Configuration > VPN > SSL VPN > Access Privilege, add one SSL VPN
rule.
Enable Network Extension (full tunnel).
In the Network List, make sure the subnet_branch object (192.168.10.0) is selected.
