Chapter 33 Private VLAN
MES3500/MGS3520 Series User’s Guide
248

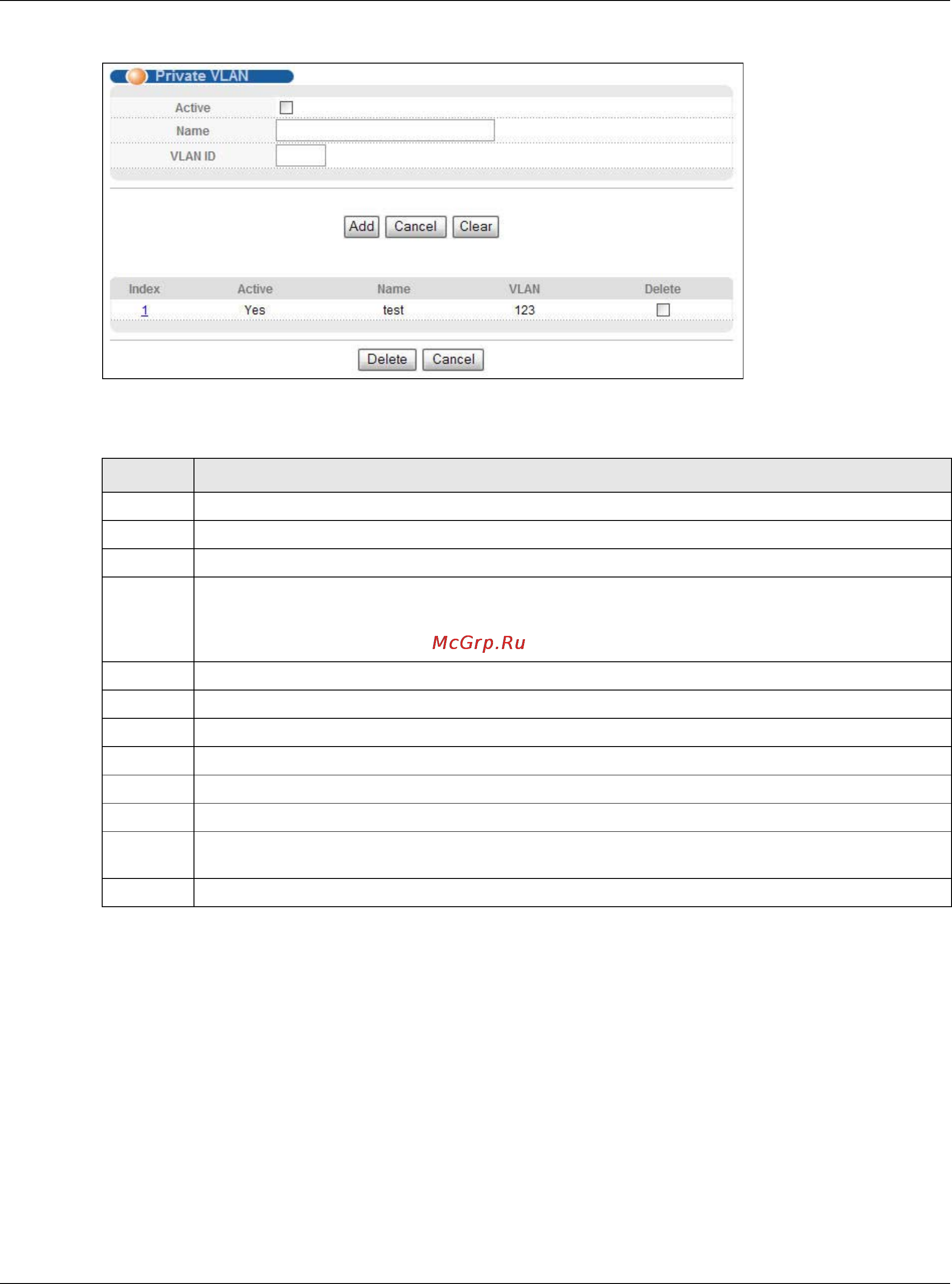

Figure 153 Advanced Application > Private VLAN
The following table describes the labels in this screen.
Table 106 Advanced Application > Private VLAN
LABEL DESCRIPTION
Active Check this box to enable private VLAN in a VLAN.
Name Enter a descriptive name (up to 32 printable ASCII characters) for identification purposes.
VLAN ID Enter a VLAN ID from 1 to 4094. This is the VLAN to which this rule applies.
Add Click Add to insert the entry in the summary table below and save your changes to the Switch’s
run-time memory. The Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-volatile memory when you
are done configuring.
Cancel Click Cancel to reset the fields to your previous configuration.
Clear Click Clear to clear the fields to the factory defaults.
Index This is the index number of the rule.
Active This shows whether this rule is activated or not.
Name This is the descriptive name for this rule.
VLAN This is the VLAN to which this rule is applied.
Delete Check the rule(s) that you want to remove in the Delete column and then click the Delete
button.
Cancel Click Cancel to clear the Delete check boxes.
