Chapter 36 DHCP
MES3500/MGS3520 Series User’s Guide
261
The following table describes the labels in this screen.
36.2.1 Option 82 Profile
Use this screen to create DHCPv4 option 82 profiles. Click IP Application > DHCP in the
navigation panel and click the Option 82 Profile link to display the screen as shown.

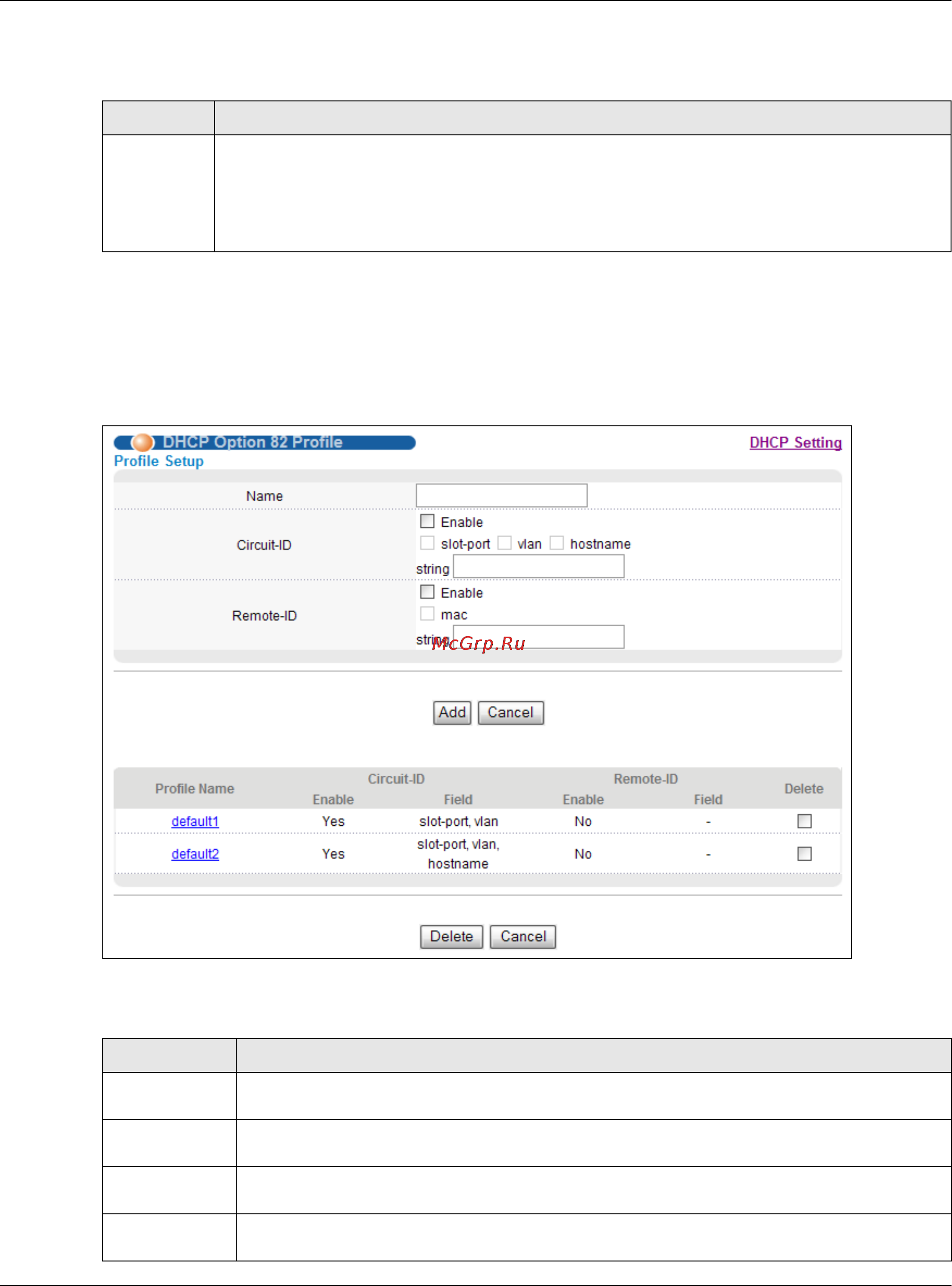

Figure 165 IP Application > DHCP > Option 82 Profile
The following table describes the labels in this screen.
Table 113 IP Application > DHCP
LABEL DESCRIPTION
Relay Mode This field displays:
• None: if the Switch is not configured as a DHCP relay agent.
• Global: if the Switch is configured as a DHCP relay agent only.
• VLAN: followed by a VLAN ID or multiple VLAN IDs if it is configured as a relay agent for
specific VLAN(s).
Table 114 IP Application > DHCP > Option 82 Profile
LABEL DESCRIPTION
Name Enter a descriptive name for the profile for identification purposes. You can use up to 32
ASCII characters. Spaces are allowed.
Circuit-ID Use this section to configure the Circuit ID sub-option to include information that is specific
to the relay agent (the Switch).
Enable Select this option to have the Switch add the Circuit ID sub-option to client DHCP requests
that it relays to a DHCP server.
slot-port Select this option to have the Switch add the number of port that the DHCP client is
connected to.
