Chapter 38 Access Control
MES3500/MGS3520 Series User’s Guide
299

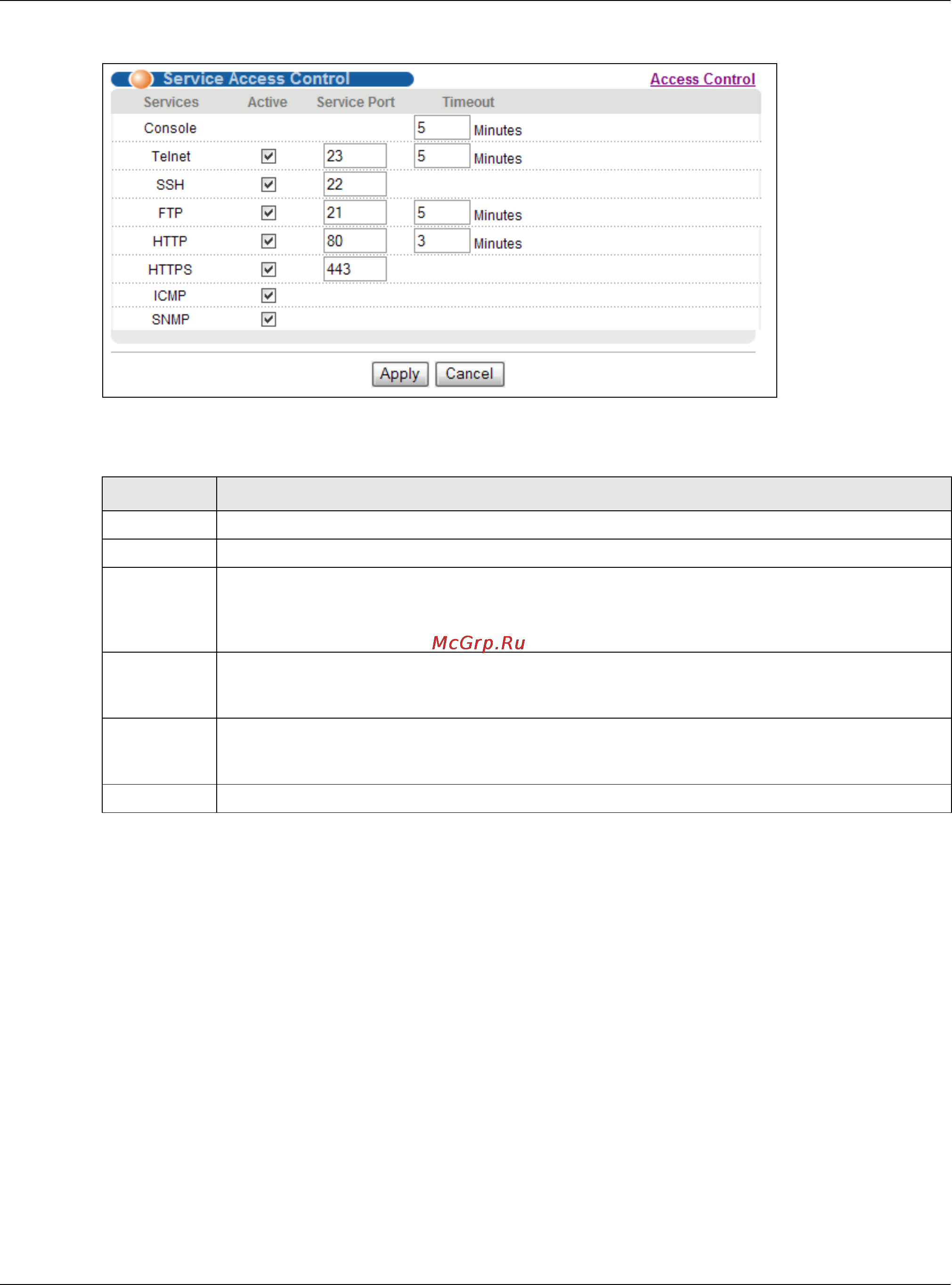

Figure 195 Management > Access Control > Service Access Control
The following table describes the fields in this screen.
38.11 Remote Management
Click Management > Access Control > Remote Management to view the screen as shown
next.
You can specify a group of one or more “trusted computers” from which an administrator may use a
service to manage the Switch. Click Access Control to return to the Access Control screen.
Table 137 Management > Access Control > Service Access Control
LABEL DESCRIPTION
Services Services you may use to access the Switch are listed here.
Active Select this option for the corresponding services that you want to allow to access the Switch.
Service Port For Telnet, SSH, FTP, HTTP or HTTPS services, you may change the default service port by
typing the new port number in the Server Port field. If you change the default port number
then you will have to let people (who wish to use the service) know the new port number for
that service.
Timeout Type how many minutes (from 1 to 255) a management session can be left idle before the
session times out. After it times out you have to log in with your password again. Very long idle
timeouts may have security risks.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
