Chapter 6 Tutorials
MES3500/MGS3520 Series User’s Guide
57

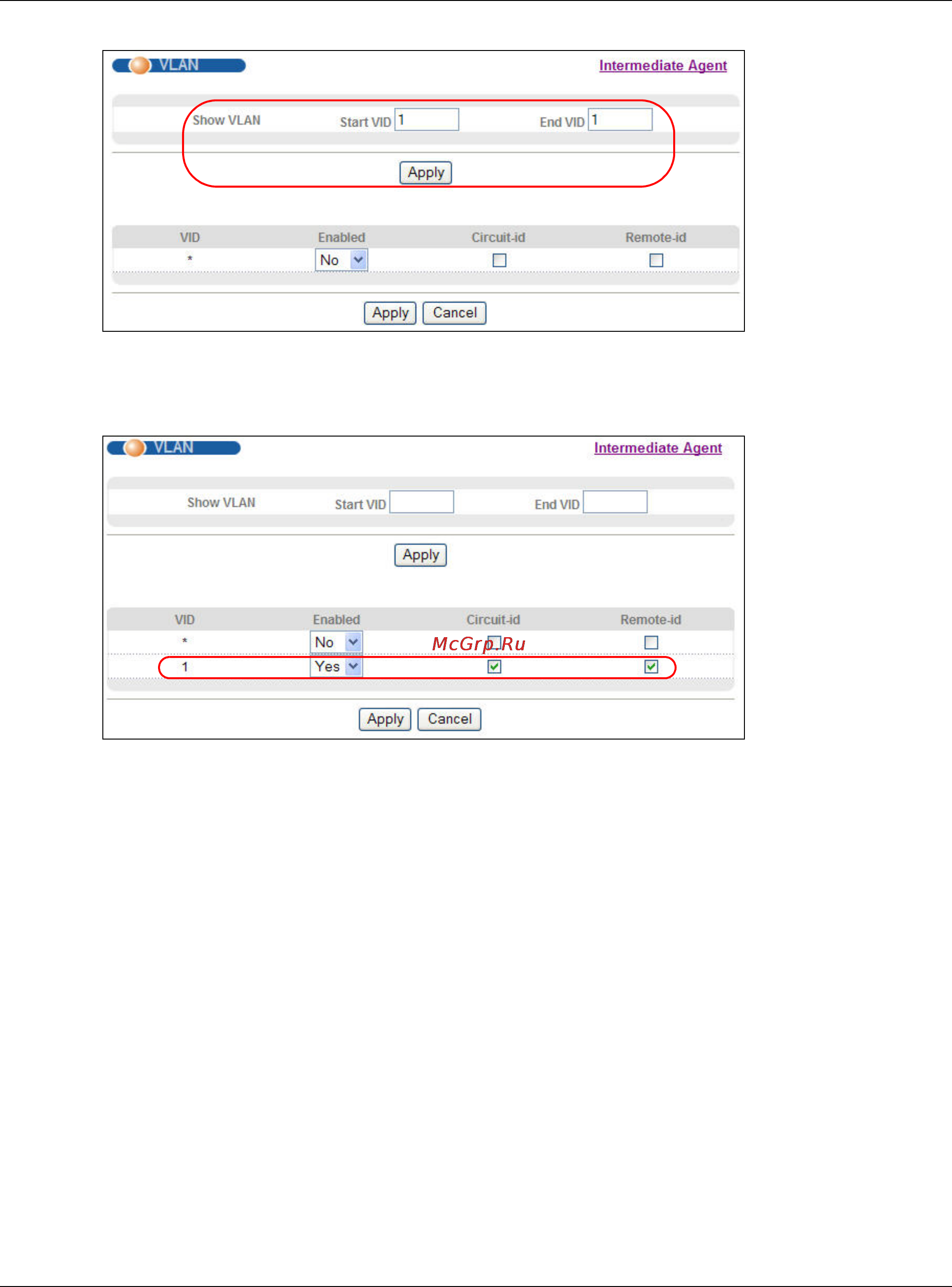

5 Then select Yes to enable PPPoE IA in VLAN 1 and also select Circuit-id and Remote-id to allow
the Switch to add these two strings to frames tagged with VLAN 1 and pass to the PPPoE server.
Click Apply.
6.3.2 Configuring Switch B
The example uses another MES3500-24/24F as switch B.
1 Click Advanced Application > PPPoE > Intermediate Agent. Select Active then click Apply.
