Chapter 6 Tutorials
MES3500/MGS3520 Series User’s Guide
71

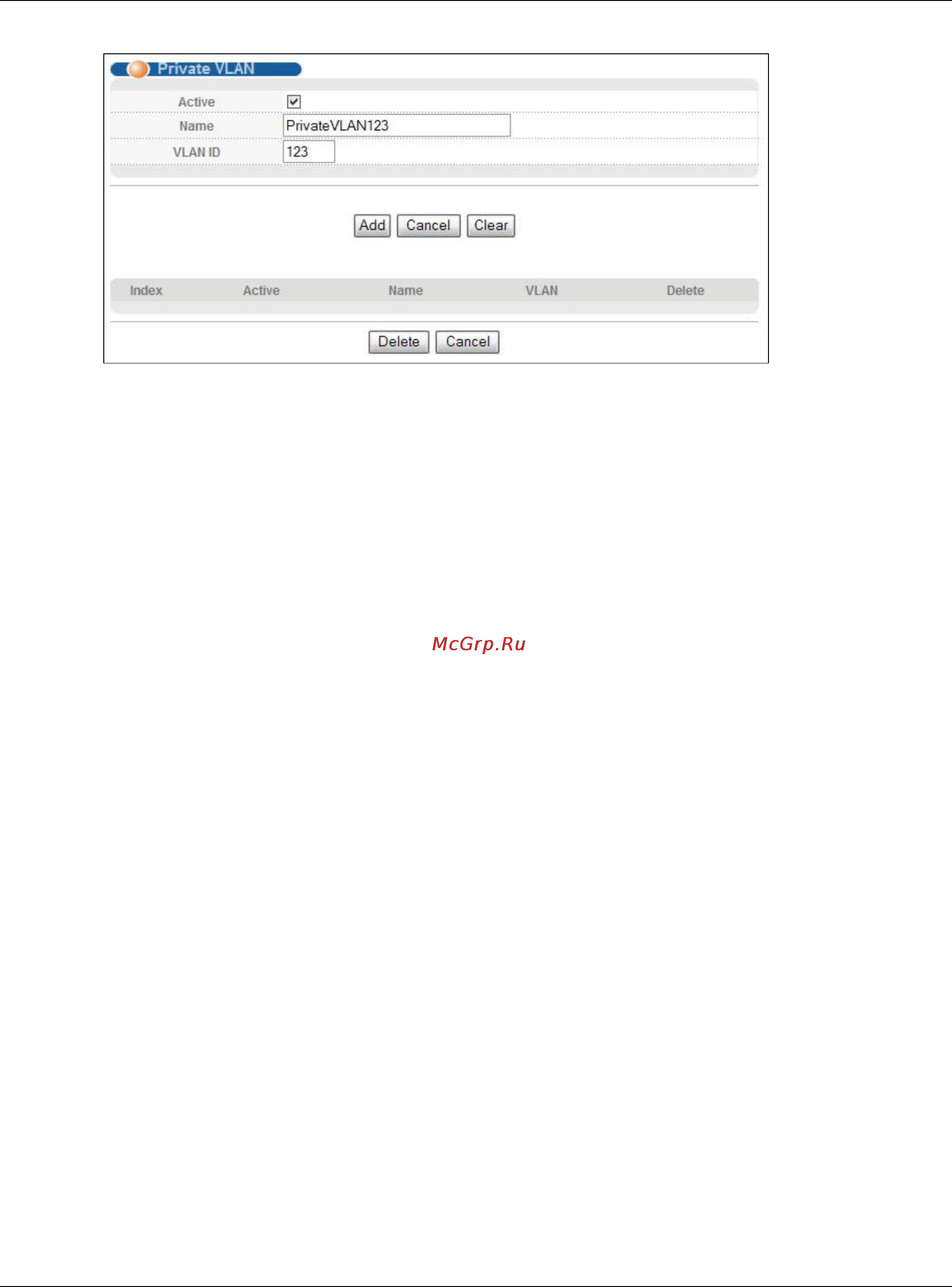

3 Click the Save link in the upper right corner of the web configurator to save your configuration
permanently.
Ports 2, 3 and 4 in this VLAN will be added to the isolated port list automatically and cannot send
traffic to each other.
From port 2, 3, or 4, you should be able to access the device that attachs to port 25, such as a
server or default gateway.
