Assembly see page 31
Fault Cause Remedy
Insufficient water - Shower filter seal dirty - Clean filter seal between shower
and hose
- Non return valve hasn’t moved
back
- Exchange non return valves
Mixer stiff - Cartridge defective, calcified - Exchange cartridge
Mixer dripping - Cartridge defective - Exchange cartridge
Hot water temperature too low - Hot water limiter incorrectly set - Set hot water limiter
Instantaneous heater didn’t work - Flow limiter in handshower isn’t
removed
- Remove flow limiter
- Filters are dirty - Clean the filter / exchange filter
- Non return valve hasn’t moved back
- Exchange non return valves
Test certificate (see page 40)
Cleaning
see enclosed brochure.
Operation (see page 38)
Spare parts (see page 36)
Flow diagram
(see page 34)
Dimensions (see page 34)
Maintenance (see page 40)
The non return valves must be checked
regularly according to DIN EN 1717
in accordance with national or regional
regulations (at least once a year).
Adjustment
To adjust the hot water limiter on single lever
mixers, please see page 39. Using a hot
water limiter in connection with a continuous
flow water heater is not recommended.
Do not use silicone containing acetic acid!

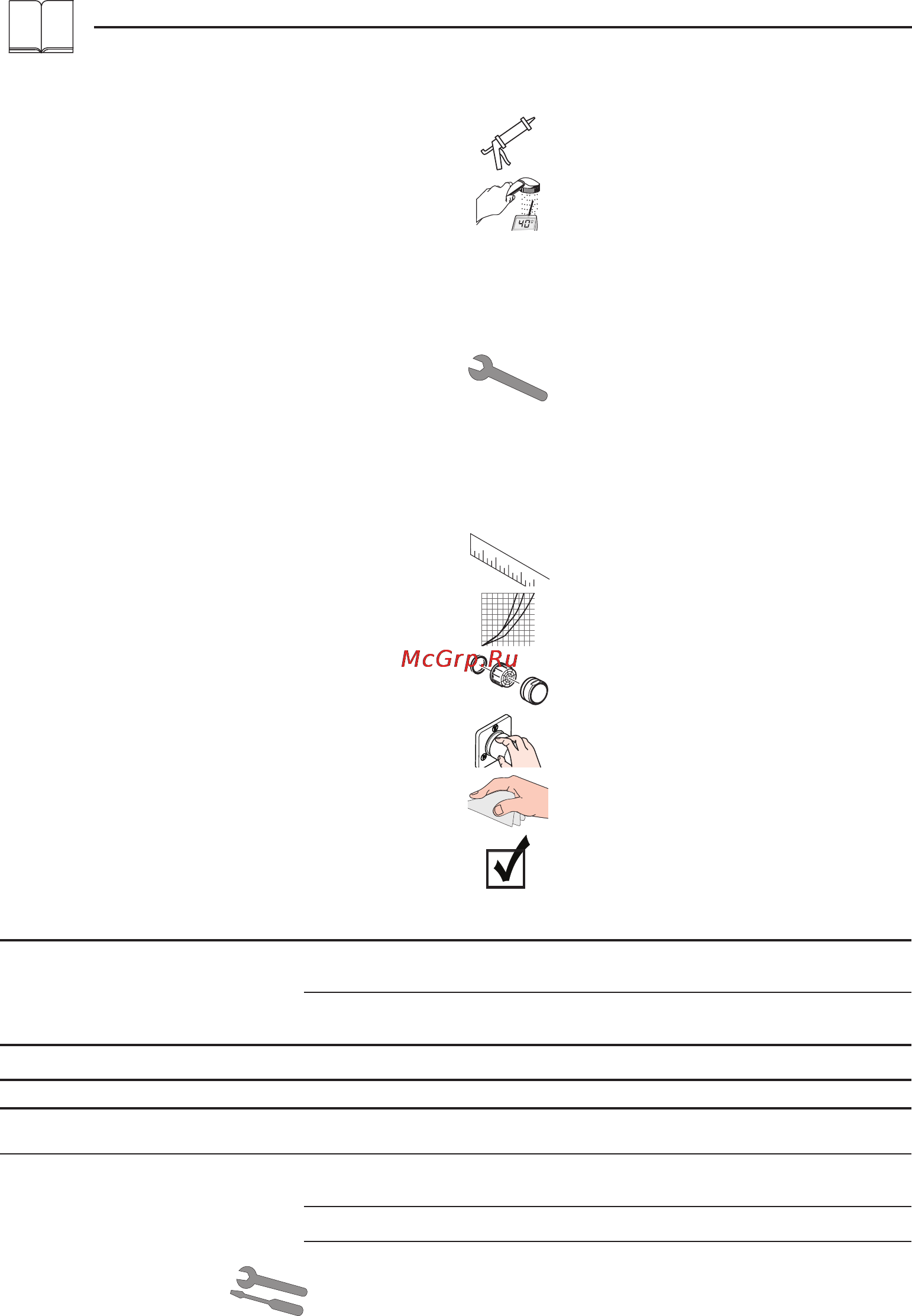

Symbol description
Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The shower system may only be used for bathing,
hygienic and body cleansing purposes.
The hot and cold supplies must be of equal
pressures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The fitting must be installed, flushed and tested after
the valid norms.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Thermal disinfection: max. 70°C / 4 min
anti-pollution function
The product is exclusively designed for drinking water!
Hansgrohe mixers can be used together with
hydraulically and thermically controlled continuous flow
heaters if the flow pressure is at least 0,15 MPa.
English
4
