3.1.4 Types of Separated Zone
setups:
A Separated Zone smaller than 100 m² (1100 ft²)
o Separated area that is smaller
than 100m² (1100 ft²) can be
covered in a single operation,
thus, if possible, the separated
area may be connected to the
main area’s Perimeter Wire
(have the signal come from the
Main Base Station).
Or
o It may need its own separate
Perimeter Wire.
In that case, it will have to
be connected to a Perimeter
Switch (optional accessory –
see Chapter 12 – Accessories).
Or:
A Separated Zone larger than 100 m² (1100 ft²)
o If a separated area is larger than
100m² (1100 ft²), then it requires
more than a single operation to
cover the area;
o In such case, an additional Base
Station (optional accessory)
should be installed in the
Separated Zone; otherwise
you will have to manually bring
the mower several times to the
Separated Zone, in order to
complete the mowing of the area..
3.2 Select Base Staon Locaon
3.2.1 Base Station Location Guidelines
Do not place the Base Station within 3 meters (10
ft.) after a corner (relevant for Internal Setup only
– section 3.2.2)
The Base Station should be within 15m (50 ft.)
distance from a power outlet (230V / 120V).
If the lawn has more than one zone, place the Base
Station within the largest zone.
Make the Base Station invisible to the street to
avoid theft.
Select a shady spot. This will extend battery lifetime.
Place the Base Station on a relatively level ground.
Do not place it on a slope.
Place the Base Station away from sprinkler heads.

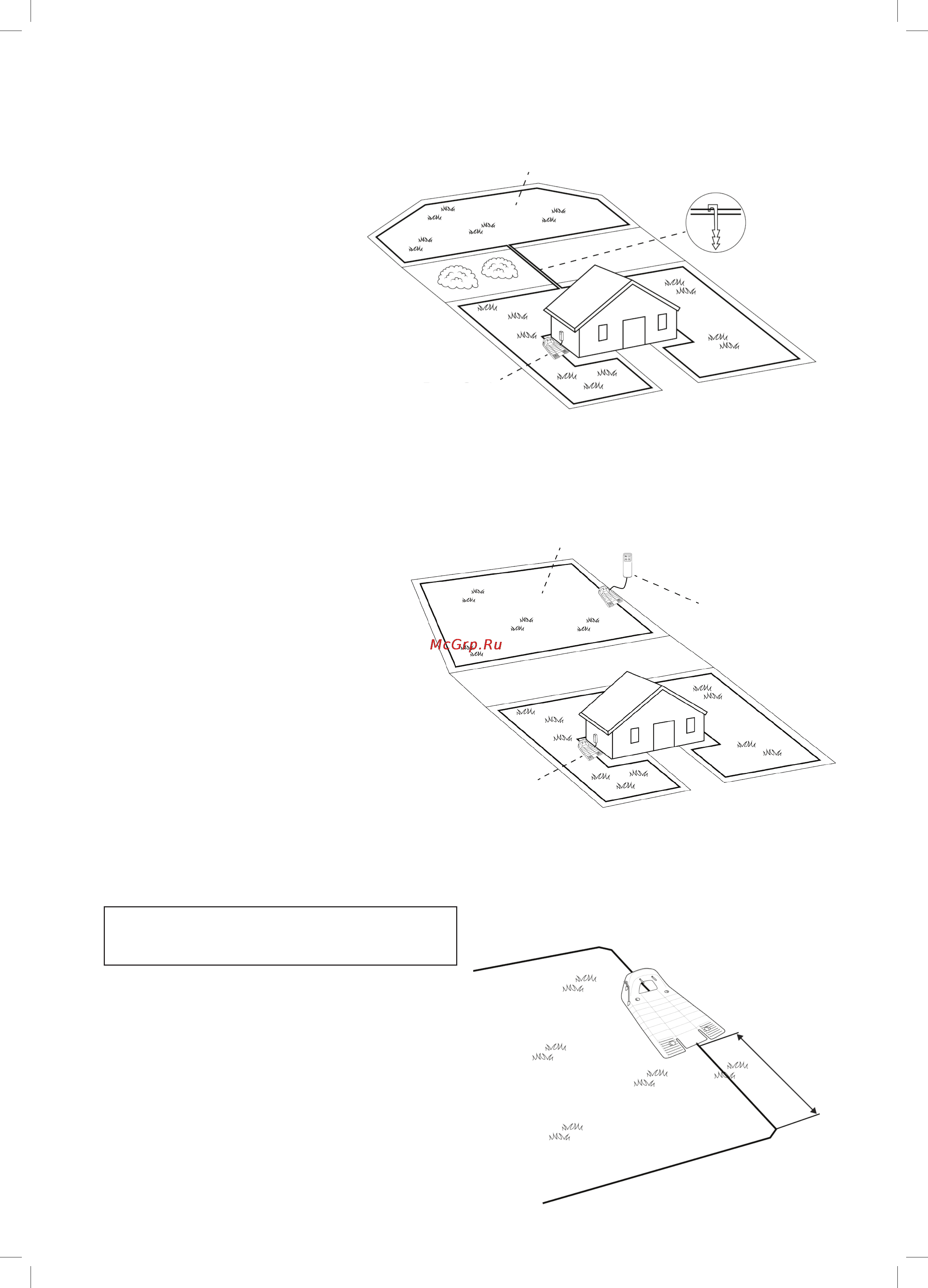

Separated Zone Smaller than 100m² (1100ft²)
2 Wires under
same peg
Base Station
Separated Zone larger than 100m² (1100ft²)
Optional Power Box &
Base Station
Main zone Power Box &
Base Station
Min. 3m (10ft) from any
corner
