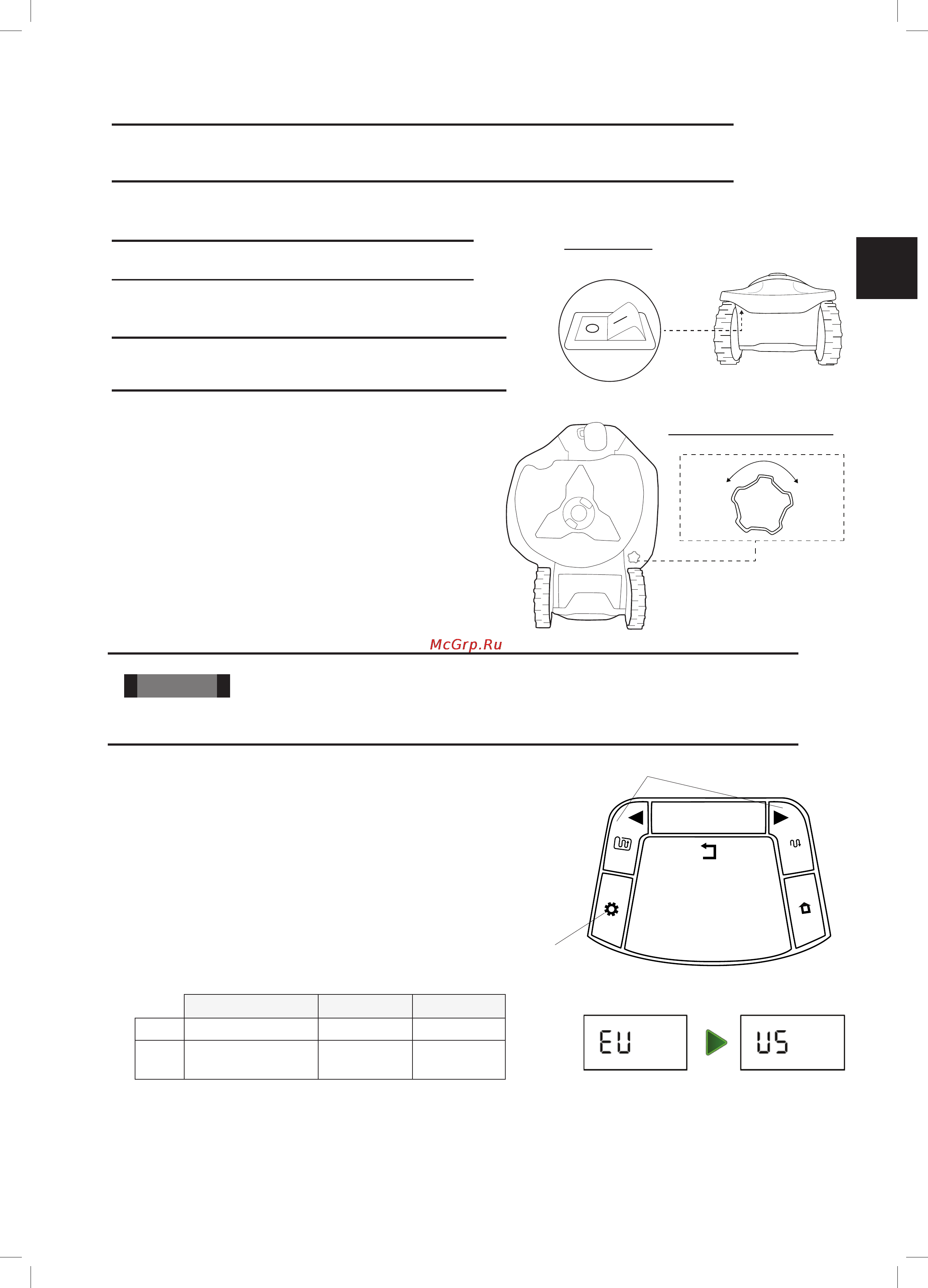

![Robomow RC302 [30/58] Chapter 5](/views2/1172599/page30/bg1e.png)
29
EN
Chapter 5 –
Preparing Robomow
Before using Robomow for the rst time, you have to perform some simple preliminary settings.
Once the preparations are complete, your Robomow will be ready to mow your lawn.
5.1 Adjust the Cung Height
Blade Cutting Range: 15 – 60 mm (0.6 – 2.4 inches)
To adjust the cutting height of the blade, do the following:
CAUTION! ALWAYS TURN THE SAFETY SWITCH OFF
BEFORE ADJUSTING THE CUTTING HEIGHT!
• Lift the front side of the mower.
• Turn the knob while pushing it down.
• To raise the cutting height, turn clockwise.
• To lower the cutting height, turn anticlockwise
• The cutting height is displayed at the side of the mower.
5.2 One-Time Setup (Step by Step)
Make sure the Safety Switch is on and the Power Box is
plugged in before starting the One-Time Setup process.
The mower is now ready to perform the One-Time Setup
process.
!
IMPORTANT
!
To restart the One-Time Setup process press and hold STOP + Settings + Left
arrow buttons together for more than 4 seconds. This will invoke Factory Defaults (“Out of the Box”
settings).
5.2.1 Using the Operating Panel
Use the buttons on the Operating Panel as follows:
• Press the ‘Right’ or ‘Left’ arrows until your desired option
is displayed.
• Press OK to select the value shown on the display.
• Press ‘Back’ (STOP) to go back or to cancel.
5.2.2 Choose Measurements Units and Formats
Area / Distance Temp. Clock
EU Meter Celsius 24 Hours
US Foot Fahrenheit
12 Hours
(AM / PM)
Safety Switch
HIGHLOW
Cutting height adjustment
HIGH
LOW
ok
STOP
Right/Left arrows
Settings button
