13
EN

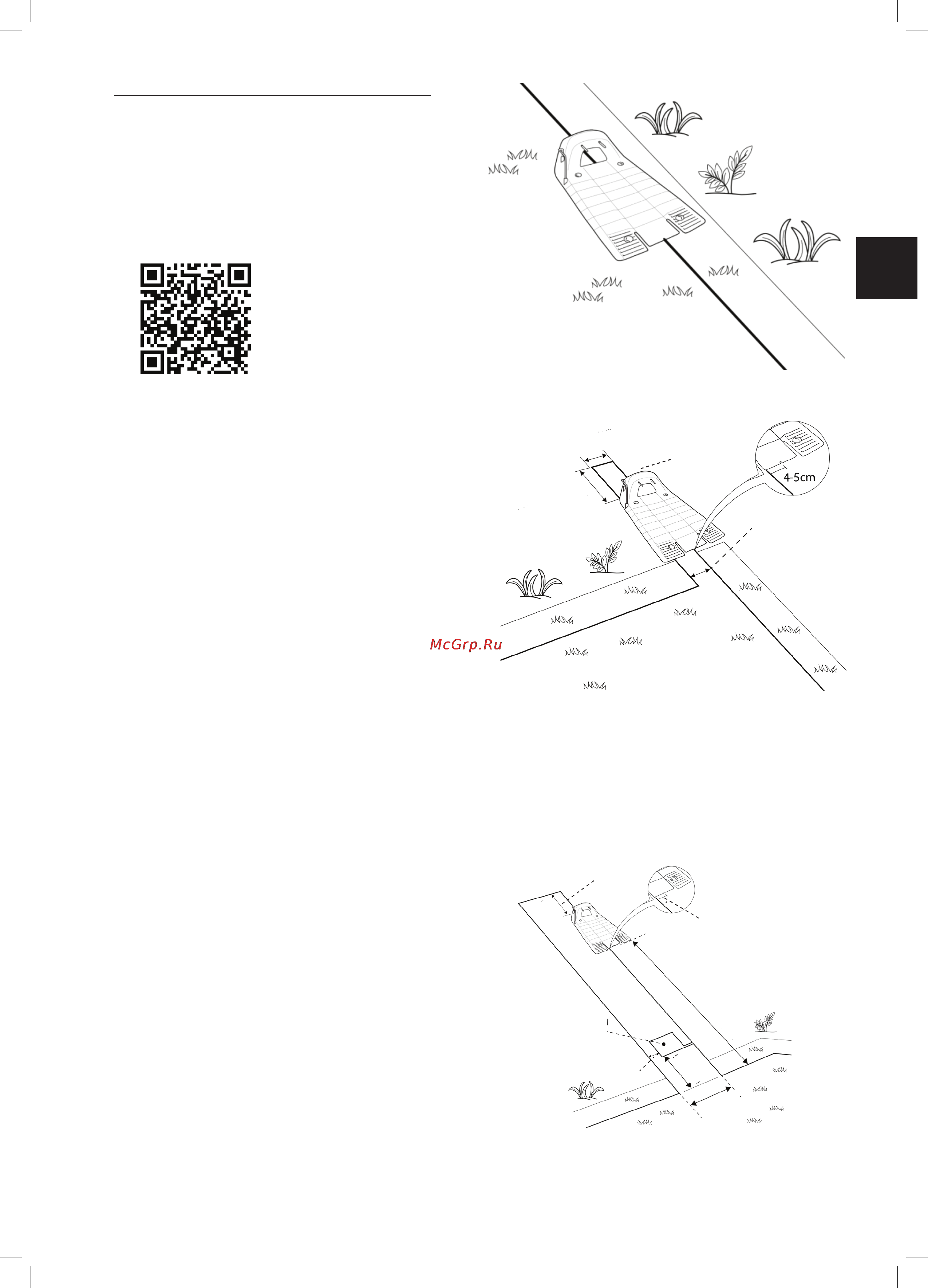

There are two options to set the Base Station:
3.2.2 Internal Setup (on the lawn perimeter)
• Choose a place along the Perimeter Wire where
you want to place the Base Station, based on the
onditions detailed in paragraph 3.2.1.
• Place the Base Station in the direction shown in the
gure to the right.
3.2.3 External Setup (off the lawn perimeter):
Scan the code to watch the
video on how to install an
external base.
There are two types of External Setup:
A.
At a corner
In this type of setup, the Base Station is located at one of
the corners of the lawn, as shown in the gure at the right.
• Choose a corner where you want to place the Base
Station outside of the lawn area.
• Place the Base Station, where its front side is touching
the lawn edge or placed somewhere on the lawn.
• Continue to lay the perimeter wire as shown in the gure
on the right, where it continues at least 10cm (4”) beyond
the Base Station and turns back towards the lawn at a
distance of 10cm (4”) from the other wire.
• The Base Station may be placed in a small shift to the
right, in order to allow smooth entry of the mower to the
Base Station.
• Later you will have the opportunity to adjust the Base
Station position to conrm smooth entry.
B.
Outside the lawn
(Can be set only through the Robomow App for specic models)
• Choose a place outside the lawn where you want Robomow to dock and charge.
• Conrm the path between the lawn and the outside area is smooth with no height difference, so Robomow will
not get stuck and will follow the wire smoothly.
• The surface between the lawn and the Base Station should be hard (such as a sidewalk or rigid ground) and
not sandy or stony, so Robomow will not slip or get
stuck on it.
• The area between the lawn and the Base Station
should be clear of obstacles and objects.
• Lay the wire as shown in the gure to the right:
- Narrow path of 50cm (20”) width.
- Square Perimeter Island of 30cm (12”) edges.
- Island starts 50cm from the Perimeter Wire.
- Keep a distance of 10cm (4”) between Perimeter Wire
and the Island from both sides.
- The front of the Base Station should be placed a
minimum distance of 1.8m (6 ft.) from the Perimeter
Wire and NOT more than 4m (13 ft.).
Min. 10cm (4”)
10cm (4”)
Perimeter
Island 30cm
50cm
(20”)
50cm
(20”)
Min 1.8m (6ft)
Max 4m (13ft)
5-4cm
Min. 10cm (4”)
10cm (4”)
10cm (4”)
Main Zone
