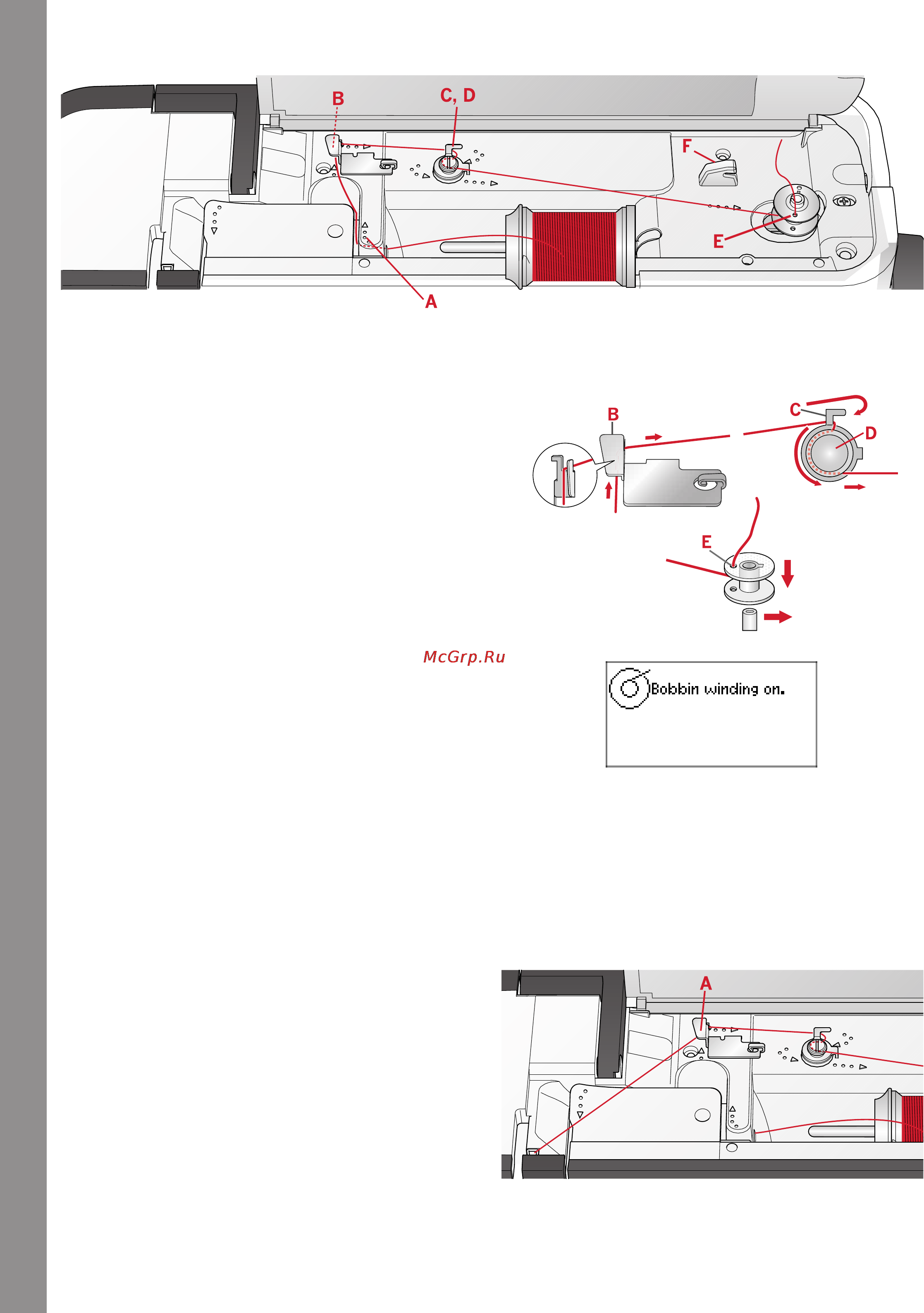

Preparations
Bobbin Winding
Winding From Horizontal Position
1. Place the felt pad and thread spool on the spool pin
in horizontal position. Slide on a spool cap of the
right type and direction.
2. Place the thread under the thread guide (A) from
right to left. Pull the thread to the rear and around
the thread guide (B) from left to right.
3. Pull thread to the right and then through the thread
guide (C) from back to front. Pass thread under
tension disc (D) in counter clockwise direction.
Note: Make sure the thread is pulled securely inside the
tension disc for correct thread tension.
4. Thread through the hole in the empty bobbin (E)
from the inside to the outside.
5. Place the bobbin on the bobbin winder spindle.
6. Push the bobbin lever to the right to wind. A pop-up
appears on the screen to inform you that bobbin
winding is active. Press the foot control or the start/
stop button to start winding the bobbin. Hold the
end of the thread firmly when starting to wind.
When the bobbin is full, release the foot control or
press the start/stop button again to stop. Push the
bobbin lever to the left. The pop-up closes. Remove
the bobbin and cut the thread using the bobbin
thread cutter (F).
Winding Through the Needle
Make sure that the presser foot is raised and the needle
is in its highest position. Bring the thread up from the
needle, under the presser foot, upward through the left-
hand threading slot and through the bobbin thread
guide (A). Then follow step 3 to 6.
Note: Use a metal presser foot when bobbin winding from the
needle.
