Embroidering
Load Fonts From the USB Embroidery Stick
You can create more embroidery font files using the
embroidery intro software. See page 25.
1. Press the load button with the USB embroidery stick
connected. Your machine can load .vf3 embroidery
font files.
2. Select the font file you want to load and press OK to
confirm. The font will load into the embroidery text
editor.
Note: Font files are indicated with this symbol.
Embroidery Text Editor
An alphabet will be shown automatically when you
have loaded a font. The embroidery text editor works
just like sequencing, see page 42.
1. Create your embroidery text by selecting letters
using the arrow buttons.
2. Confirm your selections by pressing OK.
3. Press second row - or + button to change character
set.
4. When you want to sew your text, press the stitch-out
button to bring the text to embroidery stitch-out. The
square will now have the appearance of the loaded
text.
5. Press the embroidery edit button to rotate or adjust
the length and height of the text by pressing the
corresponding + and - buttons.
Note: Press the alphabet mode, sequencing button to enter the
embroidery text editor again. All adjustments made in stitch-
out and edit mode will be cancelled if you go back to the
embroidery text editor. A pop- up will appear asking if you
wish to return to embroidery stitch-out. Select Yes to return
to stitch-out mode. All your adjustments will remain. Select
No to open the embroidery text editor. All adjustments made
in stitch-out mode will be cancelled. Select Yes or No with the
arrow buttons and press OK.

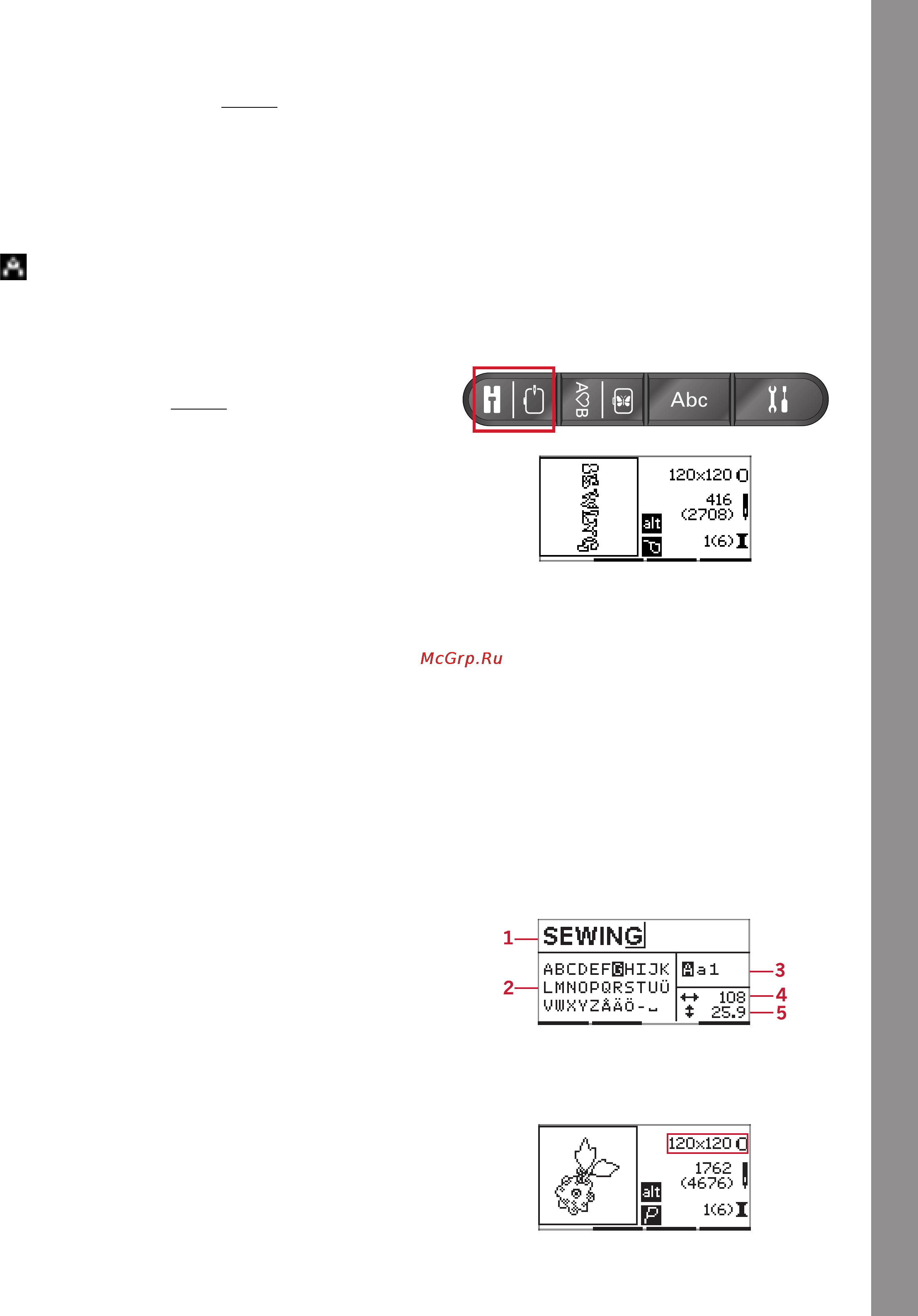

Embroidery Text Editor View
1. Text field
2. Alphabet
3. Character set (upper case/lower case, normal/
special, symbols)
4. Text length information
5. Text height information
Hoop Sizes
Stitch-out view 1
Use the - or + buttons just to the right of the hoop size
symbol to scroll through a list of available hoop sizes,
including hoops that are available to purchase from
your authorized PFAFF® dealer. Depending on the size
of the design, some hoops may not be available for
selection and the machine will beep.
