Preparations

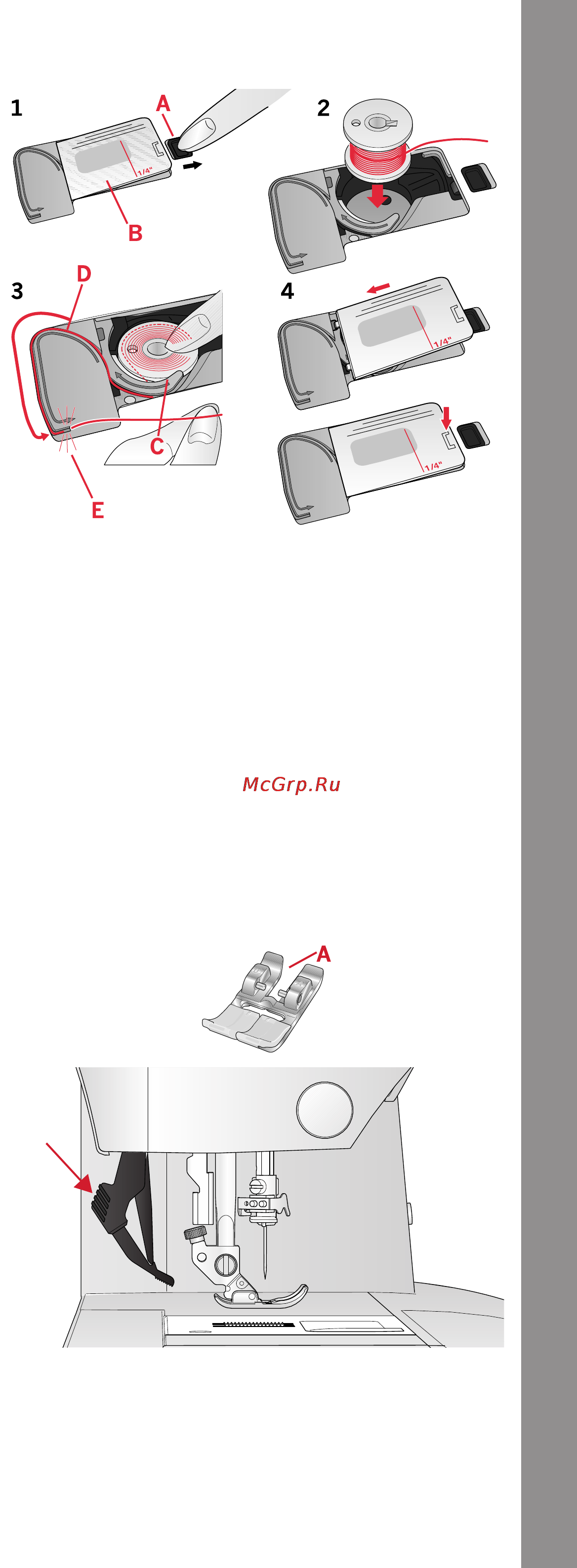

Inserting the Bobbin
Make sure that the needle is fully raised and the
machine is turned off before inserting or removing the
bobbin.
1. Open the bobbin cover by pushing the release button
to the right (A). Remove the cover (B).
2. Insert the bobbin in the bobbin case with the thread
running in a counterclockwise direction.
3. With a finger held gently on top of the bobbin, pull
the thread into notch (C). Then pull the thread at
arrow markings into the needle plate thread guide
from (C) to (D). Pull the thread at the arrow
markings into the needle plate thread guide from (D)
to (E). To cut off excess thread, pull thread to the
right over the blade (E).
4. Replace the bobbin cover.
IDT™ System (Integrated Dual Feed)
For sewing any fabric precisely, the PFAFF® creative™
1.5 machine provides the ideal solution: the integrated
dual feed, IDT™ system. As on industrial machines, the
IDT™ system feeds the fabric from the top and bottom
at the same time. The material is fed precisely,
eliminating puckering on seams in light weight fabrics
such as silk and rayon. The dual feed action of the
IDT™ system prevents layers from shifting while
sewing, keeping quilt layers aligned and ensuring a
more perfect match when sewing plaid or striped
fabrics.
Engaging the IDT™ System
Important: For all work with the IDT™ system, use
presser feet with the center back cut-out (A).
Raise the presser foot. Press the IDT™ system down
until it engages.
21
