Maintenance
Cleaning Under the Bobbin Area

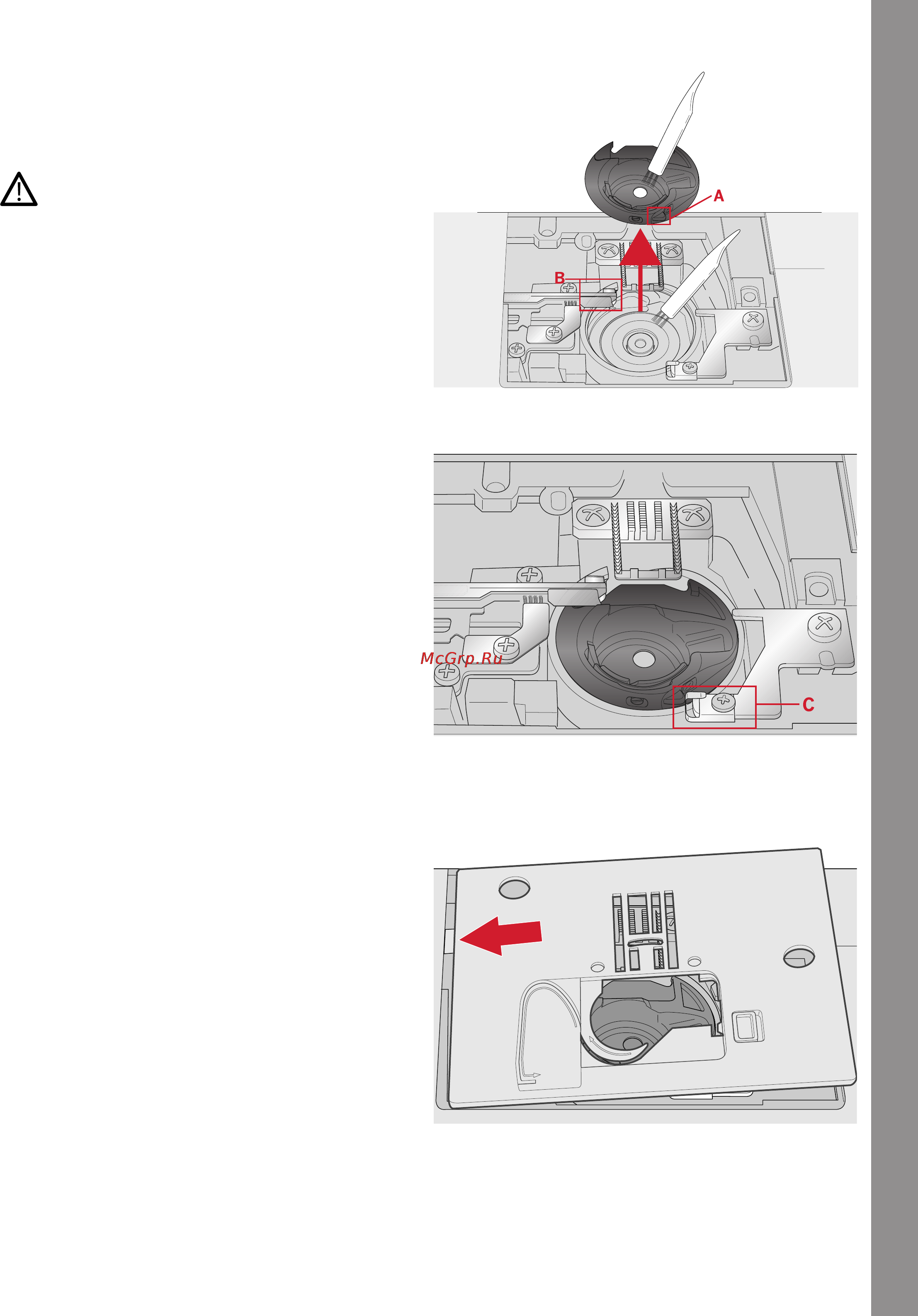

A. Tip of bobbin holder
B. Knife
C. Stopper
Clean the area under the bobbin case after sewing
several projects or any time you notice an accumulation
of lint in the bobbin case area. Remove the bobbin case
by lifting it up. Clean the area with the brush or a dry
cloth.
Use caution when cleaning around the thread snips
knife (B).
Put the bobbin case in place so that the tip (A) fits into
the stopper (C).
Note: Do not blow air into the bobbin case area. The dust and
lint will be blown into your machine.
Note: When using the optional accessory PFAFF®
Embroidery Cutwork Needles, it is necessary to clean the
bobbin area after each embroidered design/project.
Replacing the Needle Plate
With the feed dogs lowered, replace the needle plate
and insert and tighten the two needle plate screws.
Replace the bobbin cover.
