Yealink CP860 [38/294] Configuring a tftp server
![Yealink CP860 [38/294] Configuring a tftp server](/views2/1192009/page38/bg26.png)
Yealink IP Phones Auto provisioning Guide
28
If you have a 3CDaemon application installed on your local system, use it directly.
Otherwise, download and install it.
To configure a TFTP server:

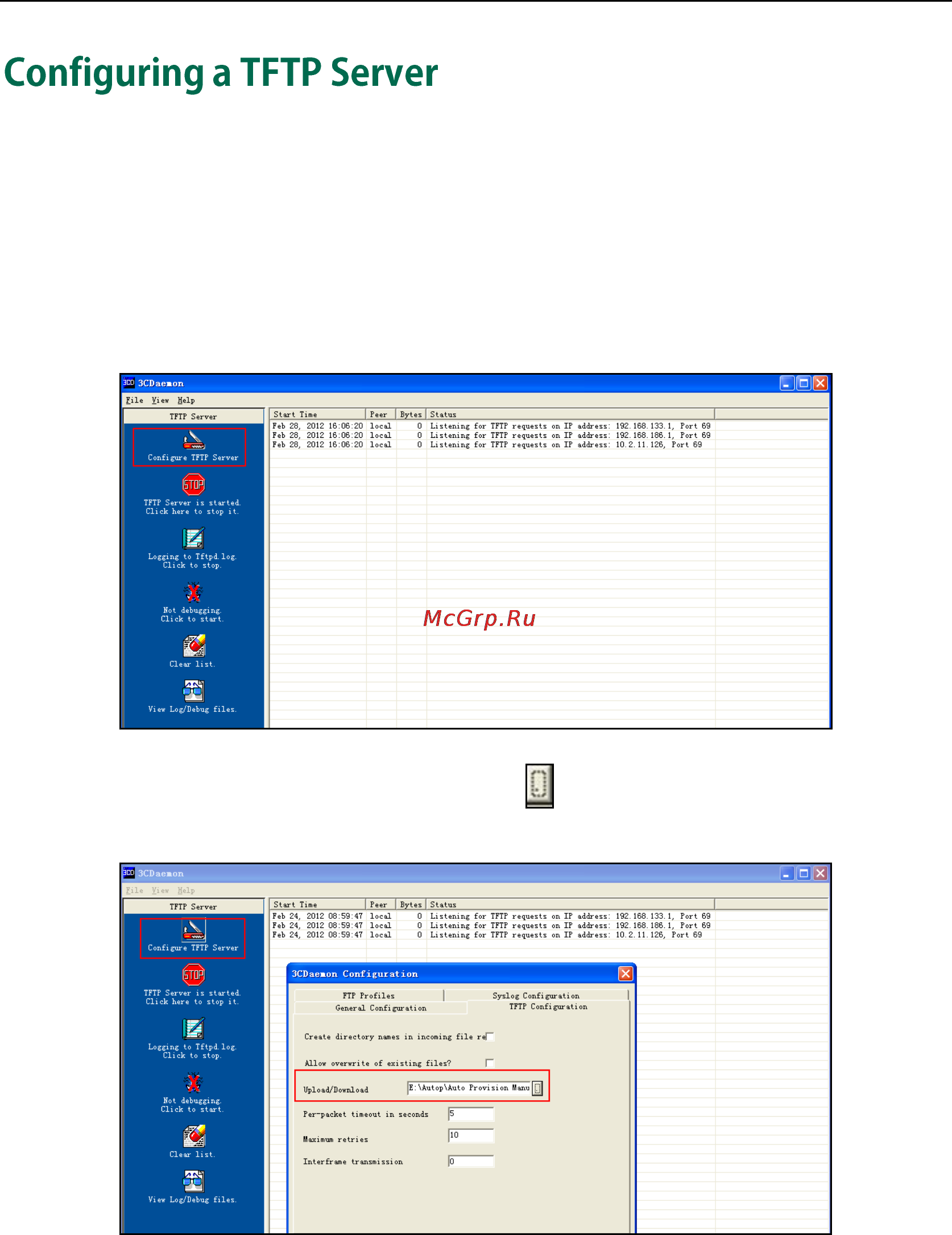

1. Double click 3CDaemon.exe to start the application. A configuration page is shown
as below:
2. Select Configure TFTP Server. Click the button to locate the TFTP root directory
from your local system:
3. Click the Confirm button to finish configuring the TFTP server.
The server URL “tftp://IP/” (Here “IP” means the IP address of the provisioning
server, for example, ”tftp://192.168.1.100/”) is where the phone downloads
configuration files from.
