Graco Python XL 5/8" [14/48] Stroke adjustment
Operation
14 3A3948B
Stroke Adjustment
This pump has three defined stroke adjustment posi-
tions.
1. Expose the pneumatic motor rod (218) by removing
the dust cover (10). See Disconnect Pump on
page 19.
2. Push the split ring (9) up or down to expose the
dowel pin (8).
3. Push out the pin using a screwdriver or punch.
4. Align the desired stroke hole (Long, Standard, or
Short) with the hole in the fluid plunger (105). Use a
screwdriver to push in the pin (8).
5. Push the split ring (9) into place to cover the pin (8).
6. Replace the dust cover (10).

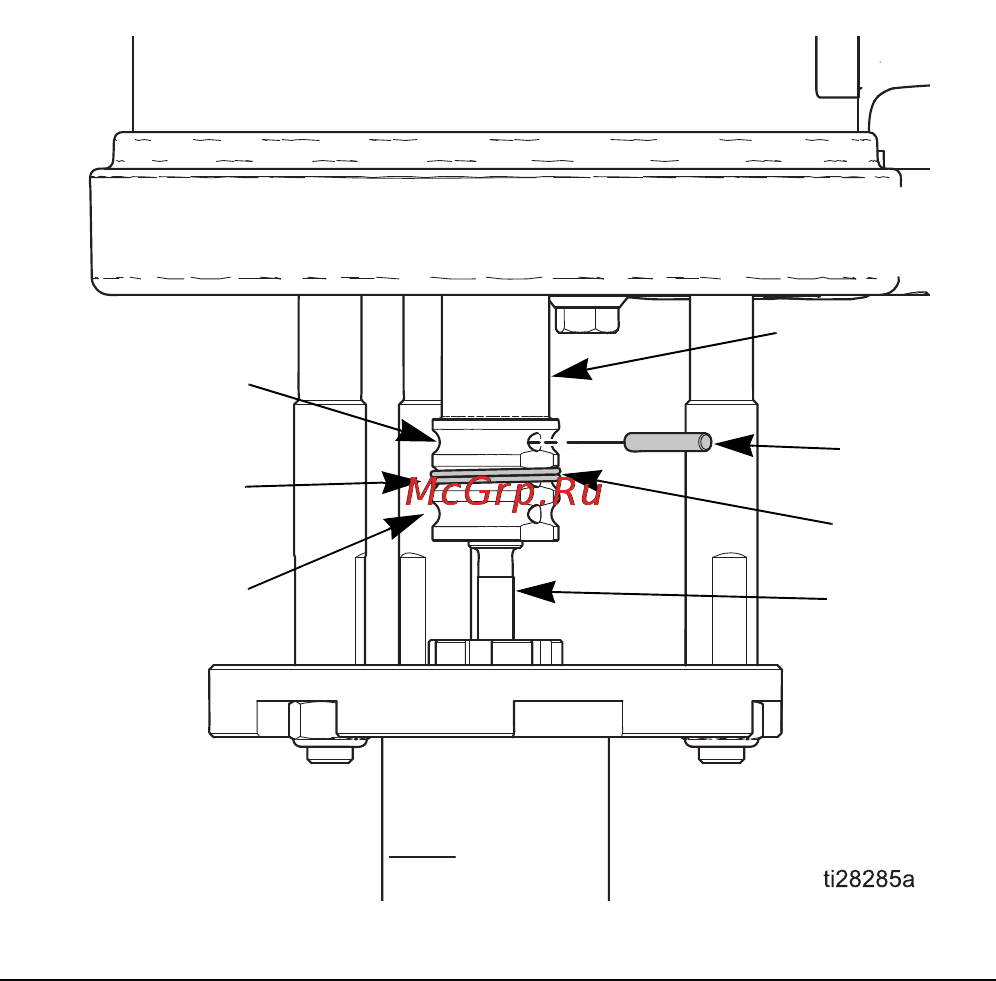

FIG. 2 Retaining spring and connector pin
Long
Standard
Short
218
9
8
105
