Graco Python XL 5/8" [22/48] Check valves
Repair
22 3A3948B
Check Valves
Inlet Check Valve Repair
1. Follow the Pressure Relief Procedure, page 12.
2. Remove the inlet check valve assembly (108).
3. Remove the retaining nut (108a) and piston (108b).
4. Remove the piston o-ring (108c).
5. Inspect parts for wear, replace as needed.
6. Install the piston o-ring (108c), piston (108b), and
retaining nut (108a).
7. Reconnect the inlet check valve assembly (108).

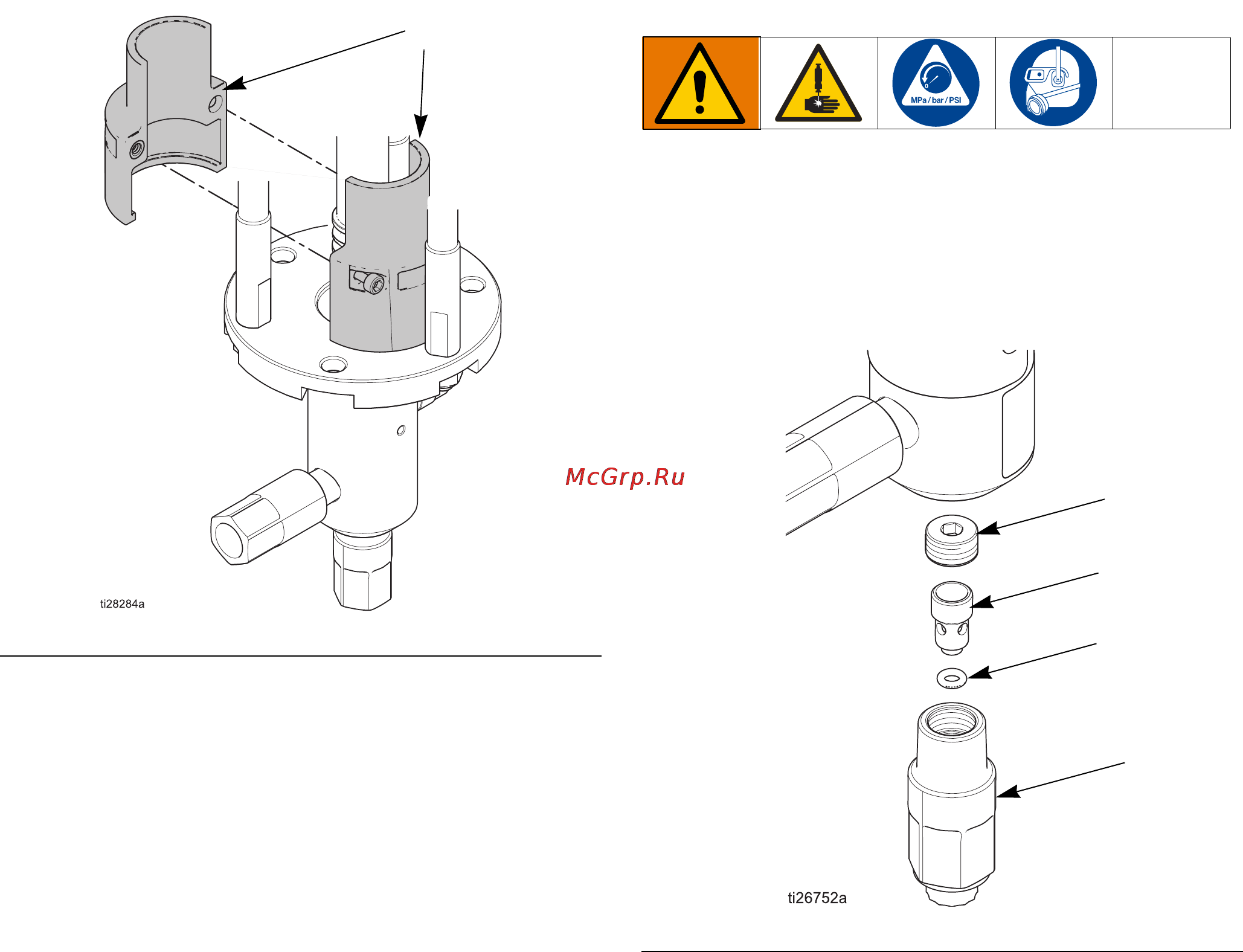

FIG. 10 Replace dust cover
10
FIG. 11 Inlet check valve assembly
108a
108b
108c
108
