Graco Python XL 5/8" [23/48] Inlet check valve repair models pci xxx xxh only
Repair
3A3948B 23
Inlet Check Valve Repair (models
PCI-xxx-xxH only)
1. Follow the Pressure Relief Procedure, page 12.
2. Remove the inlet check valve assembly (108).
3. Separate the front housing (108d) from the back
housing (108e).
4. Remove the piston (108b) and the piston o-ring
(108c).
5. Inspect parts for wear, replace as needed.
6. Install the piston o-ring (108c) and piston (108b) in
the back housing (108e).
7. Reattach the front housing (108d) to the back hous-
ing (108e).
8. Reconnect the inlet check valve assembly (108).
Outlet Check Valve Repair
1. Follow the Pressure Relief Procedure, page 12.
2. Remove the outlet check valve assembly (109).
3. Remove the retaining nut (109a), spring (109b), and
piston (109c).
4. Remove the piston o-ring (109d).
5. Inspect parts for wear, replace as needed.
6. Install the piston o-ring (109d), piston (109c),
spring (109b), and retaining nut (109a).
7. Reconnect the outlet check valve assembly (109).

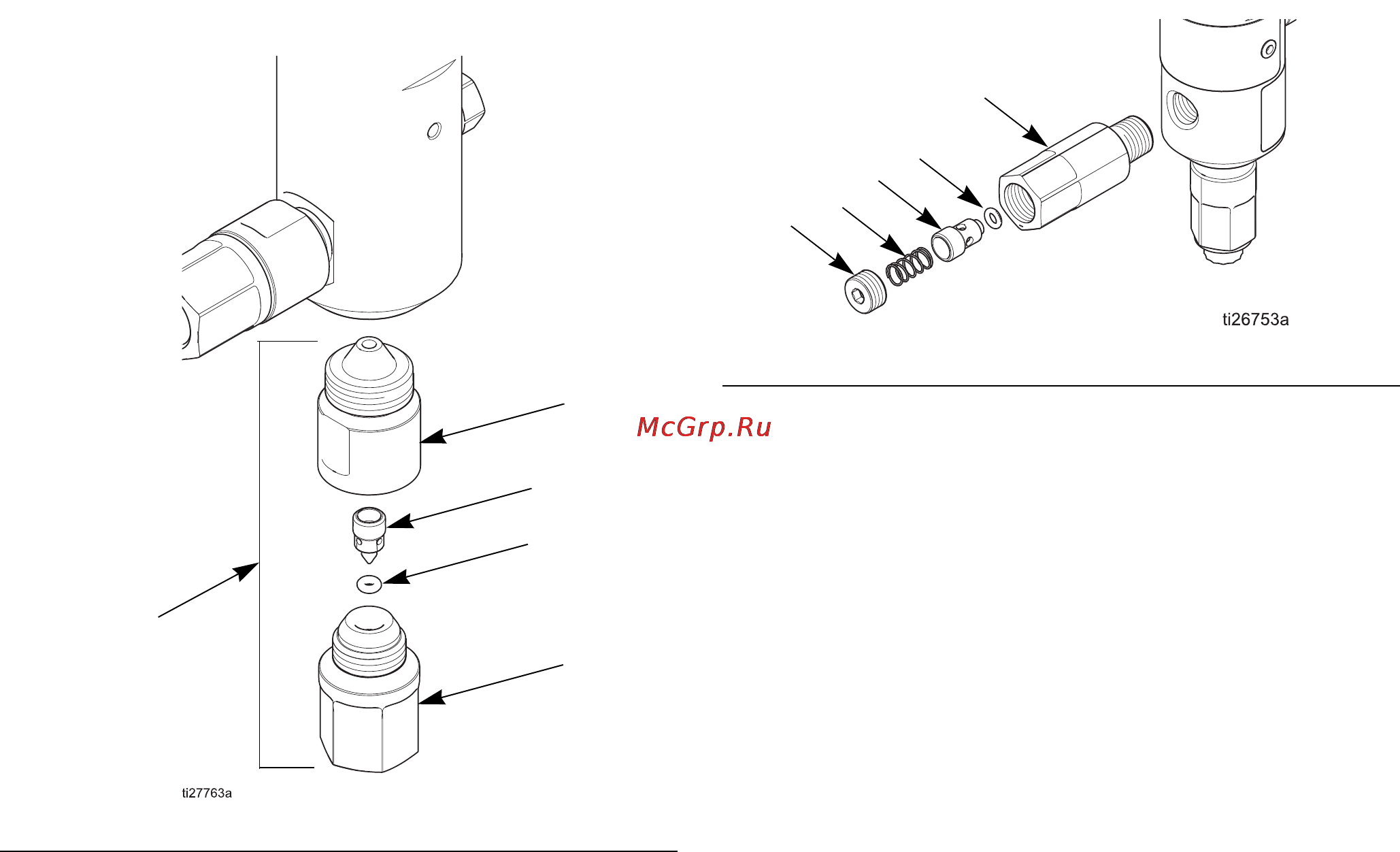

FIG. 12 Inlet check valve assembly
108d
108b
108c
108e
108
FIG. 13 Outlet check valve assembly
109
109d
109c
109b
109a
