![Graco Python XL 5/8" [19/48] Disconnect pump](/img/pdf.png)
Graco Python XL 5/8" [19/48] Disconnect pump
Repair
3A3948B 19
Repair
Pump
Disconnect Pump
1. Follow the Pressure Relief Procedure, page 12.
2. Remove the dust cover (10) by loosening the two
screws. See F
IG. 3.
3. Push the retaining spring up and push out the con-
nector pin using a screwdriver or punch. See F
IG. 4.
4. Loosen the fluid cylinder (101) and carefully slide
away from the lower pump adapter (5), taking great
care to keep the fluid plunger from contacting any
metal surfaces. The fluid plunger (105) will stay
attached to the pneumatic motor during repair. See
F
IG. 5 and FIG. 6.
Before servicing or repairing your pump, verify that
pressure is relieved according to the Pressure Relief
Procedure, page 12, and that all fluid and pneumatic
lines are properly shut off, or sealed with compatible
valves and disconnected.

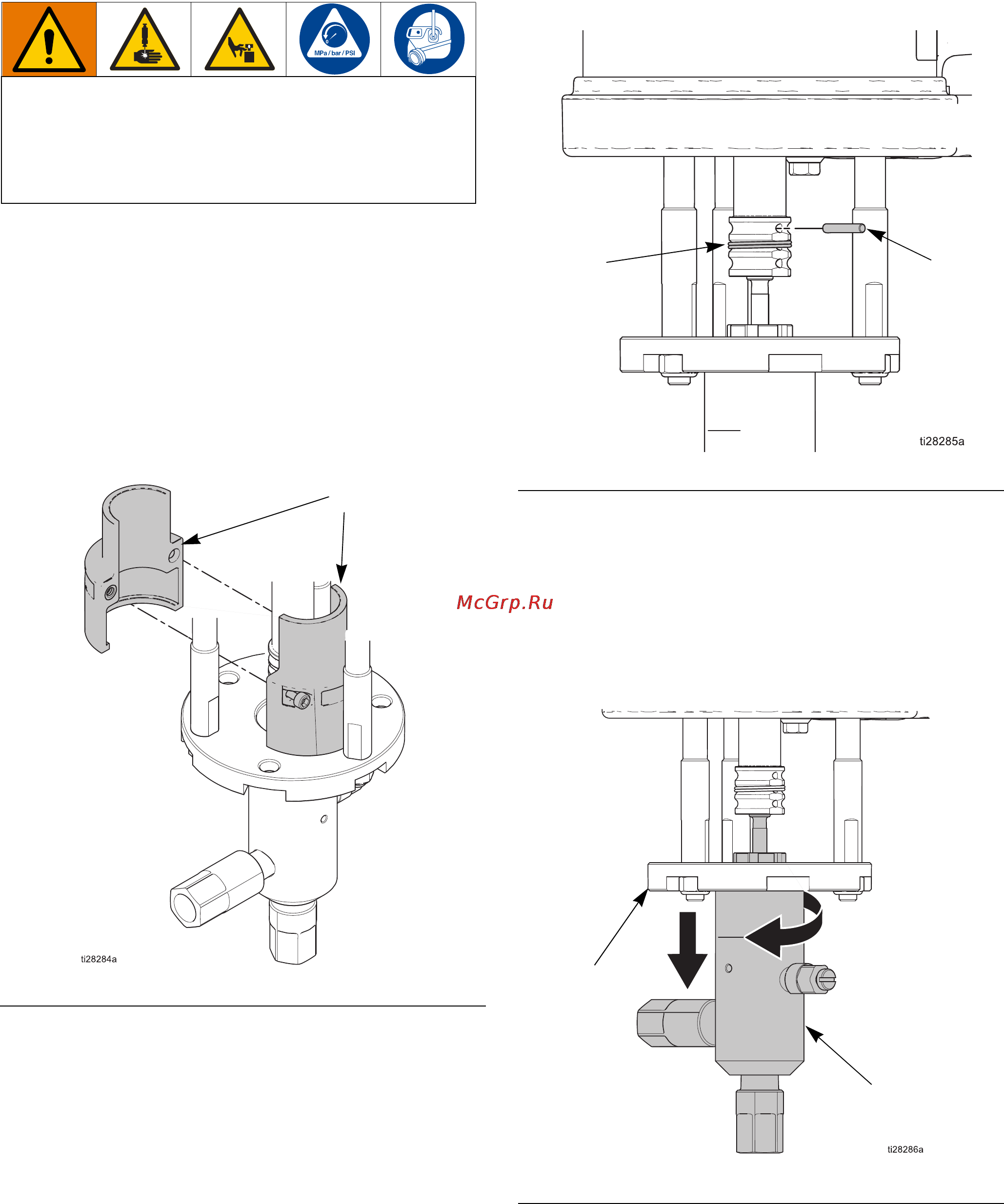

FIG. 3 Remove dust cover
10
FIG. 4 Retaining spring and connector pin
FIG. 5 Remove fluid cylinder
9
8
101
1
2
5
