Graco Python XL 5/8" [8/48] Mount the pump and connect chemical supply
Installation
8 3A3948B
Typical Installation
FIG. 1 is an example of an installation with a Python
chemical injection pump. Your installation may differ
from what is shown here. (See Required Accessories,
page 7.) The Python pump (F) is the only component in
F
IG. 1 supplied by Graco. All other components are sup-
plied by customer.
Key:
A Main Pneumatic Supply Line
B Pneumatic Needle Valve
C Pneumatic Filter
D Bleed-type Master Pneumatic Valve
E Pneumatic Pressure Regulator
FPump
G Manifold Assembly (includes y-strainer and fluid shutoff
valve (H))
H Fluid Shutoff Valve (inlet & outlet)
J Fluid Pressure Relief Valve
K Fluid Inlet Line
LInlet Port
MOutlet Port
N Pneumatic Lubricator
P Fluid Outlet Line
Mount the Pump and Connect
Chemical Supply
The pump can be used with supplied legs, or the pump
stand can be bolted to a wall or skid by the attached
bracket.
If you have an application, or mounting configuration,
that requires installation in a manner different than
depicted in F
IG. 1, please contact your Graco distributor
for assistance.
NOTE: A y-strainer (G) or chemical filter is required
before the pump inlet. This will keep any debris from the
tank from reaching the pump seals. Fluid filters are
available from Graco. See Kits and Accessories on
page 41.
1. Mount the pump (F) and connect the fluid inlet
line (K).

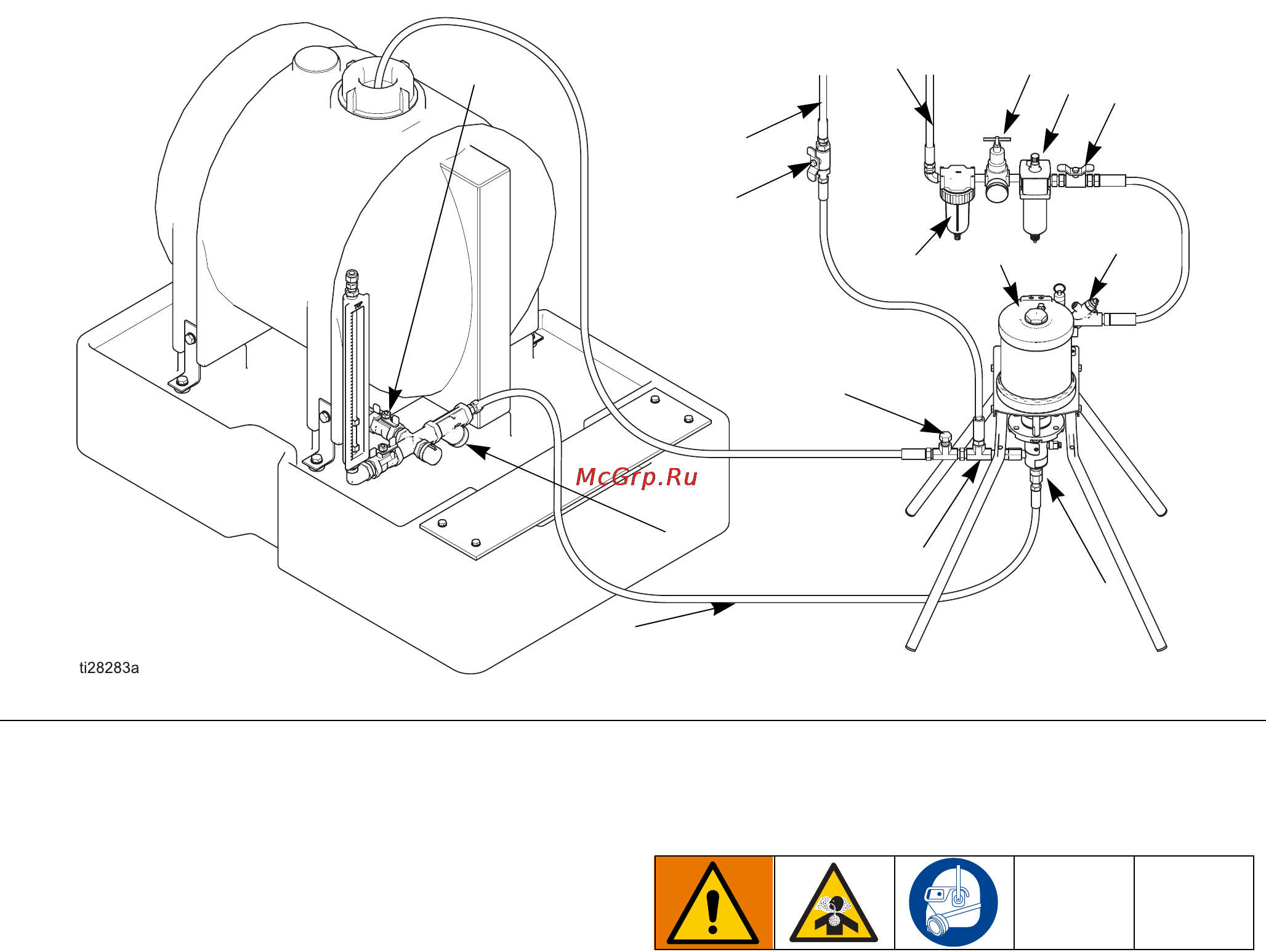

FIG. 1: Typical Installation
A
C
E
D
B
F
J
K
H
G
L
M
N
H
P
