Graco Python XL 3/4" [24/48] Outlet check valve repair models pci xxx xxh only
Repair
24 3A3948B
Outlet Check Valve Repair (models
PCI-xxx-xxH only)
1. Follow the Pressure Relief Procedure, page 12.
2. Remove the outlet check valve assembly (109).
3. Separate the front housing (109e) from the back
housing (109f).
4. Remove the spring (109b), piston (109c), and piston
o-ring (109d).
5. Inspect parts for wear, replace as needed.
6. Install the piston o-ring (109d), piston (109c), and
spring (109b).
7. Reattach the back housing (109f) to the front
housing (109e)
8. Reconnect the outlet check valve assembly (109).

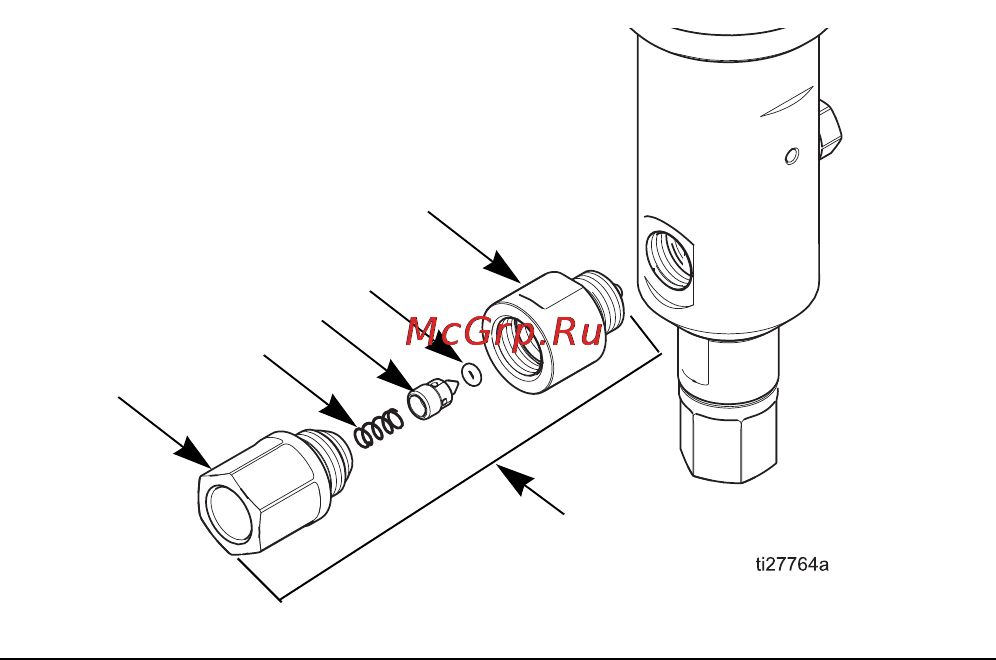

FIG. 14 Outlet check valve assembly
109e
109d
109c
109b
109f
109
