Graco Python XL 3/4" [25/48] Pneumatic valve
Repair
3A3948B 25
Pneumatic Valve
Replace Complete Pneumatic Valve
1. Stop the pump. Follow Pressure Relief Procedure,
page 12.
2. Disconnect the pneumatic line to the motor.
3. See F
IG. 21 on page 30. Remove four screws (211).
Remove the pneumatic valve (214) and gasket
(209*).
4. To repair the pneumatic valve, go to Disassemble
the Pneumatic Valve, page 25. To install a replace-
ment pneumatic valve, continue with step 5.
5. Align the new pneumatic valve gasket (209*) on
the manifold, then attach the pneumatic valve (214).
Torque screws (211) to 95-105 in-lb (11-12 N•m).
6. Reconnect the pneumatic line to the motor.
Replace Seals or Rebuild Pneumatic Valve
NOTE: Pneumatic Valve Seal Kits are available. See
page 40. Parts are marked with an †.
Pneumatic Valve Repair Kits are available. See
page 40. Parts are marked with an .
Pneumatic Valve End Cap Kits are available. See
page 40. Parts are marked with an .
Disassemble the Pneumatic Valve
1. Perform steps 1-3 under Replace Complete Pneu-
matic Valve, page 25.
2. See F
IG. 15. Use a 2 mm or 5/64 hex key to remove
two screws (309†). Remove the valve plate
(305), cup (312), and spring (311).
3. See F
IG. 16. Remove the snap ring (310) from
each end. Use the piston to push the end caps
(307) out of the ends. Remove end cap o-rings
(306†).
4. Remove the piston (302). Remove the u-cup seals
(308†) from each end and the detent assembly
(303) and detent cam (304) from the center.

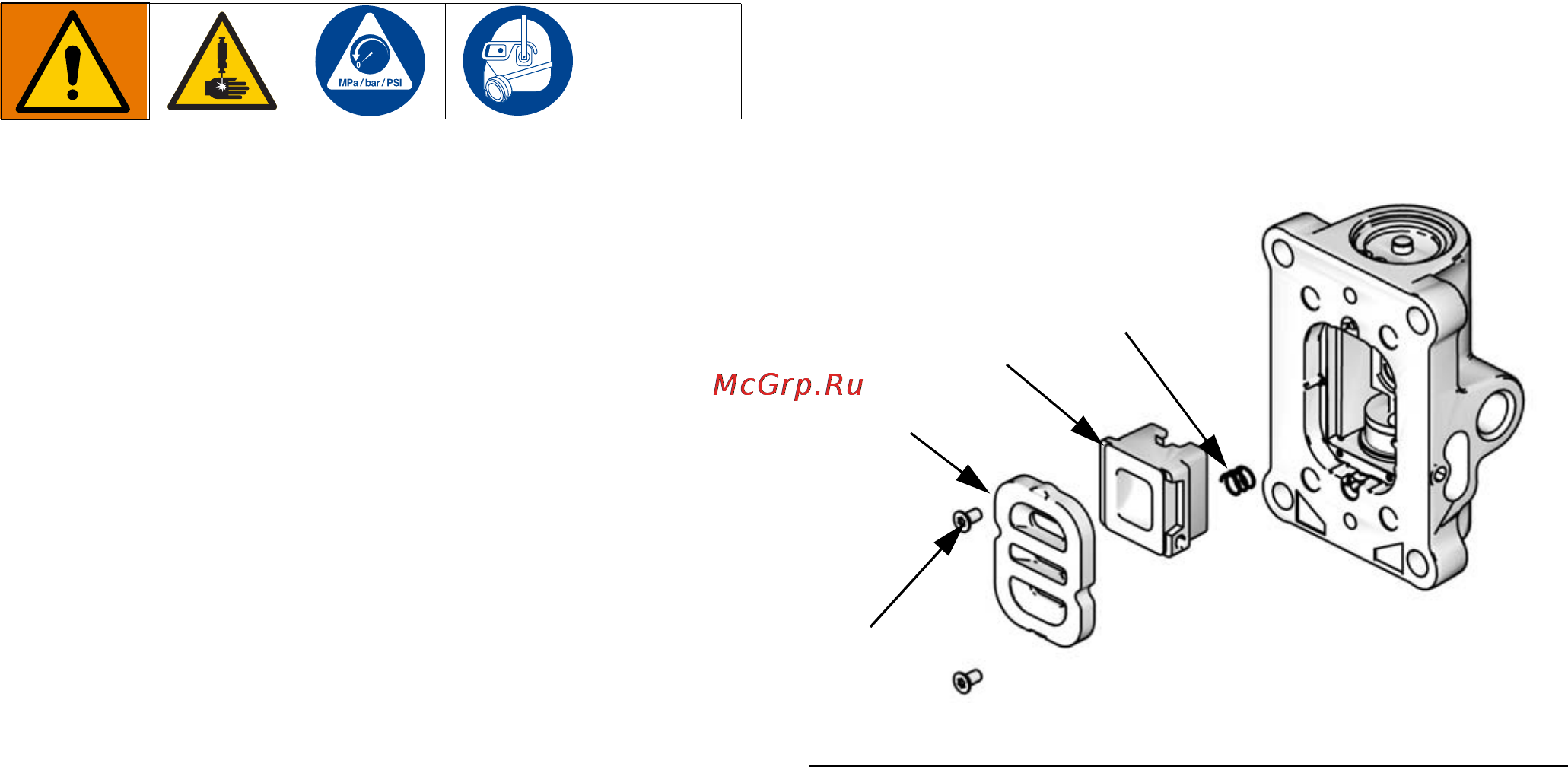

FIG. 15. Pneumatic Plate Removal
309†
305
312
311
ti16284a
