Reassemble the Pneumatic Valve
1. See F
IG. 16. Lubricate detent cam (304) and
install into housing.
2. See F
IG. 17. Lubricate the u-cups (308†) and
install on the piston (302) with lips facing toward
the center of the piston.
3. See F
IG. 16. Lubricate both ends of the piston
(302) and install it in the housing.
4. Lubricate and install the detent assembly (303)
into the piston.
5. Lubricate new o-rings (306†) and install on the
end caps (307). Install the end caps into the hous-
ing.
6. Install a snap ring (310) on each end to hold end
caps in place.
7. Install the spring (311). Lubricate and install the
pneumatic valve cup (312), see F
IG. 18. Align the
small round magnet with the pneumatic inlet.
8. Install the valve plate (305). Tighten the screws
(309†) to hold it in place.
Replace Pilot Valves
1. Stop the pump. Follow Pressure Relief Procedure,
page 12.
2. Disconnect the pneumatic line to the motor.
3. See F
IG. 19. Push the safety spring (9) down and
hold to access the pilot valve (213) on the bottom
cover (201).
4. See F
IG. 21 on page 30. Use a 10 mm wrench to
remove the old pilot valves (213) from the top and
bottom covers.
5. Lubricate and install the new pilot valves (213).
Torque to 95-105 in-lb (11-12 N•m).
F

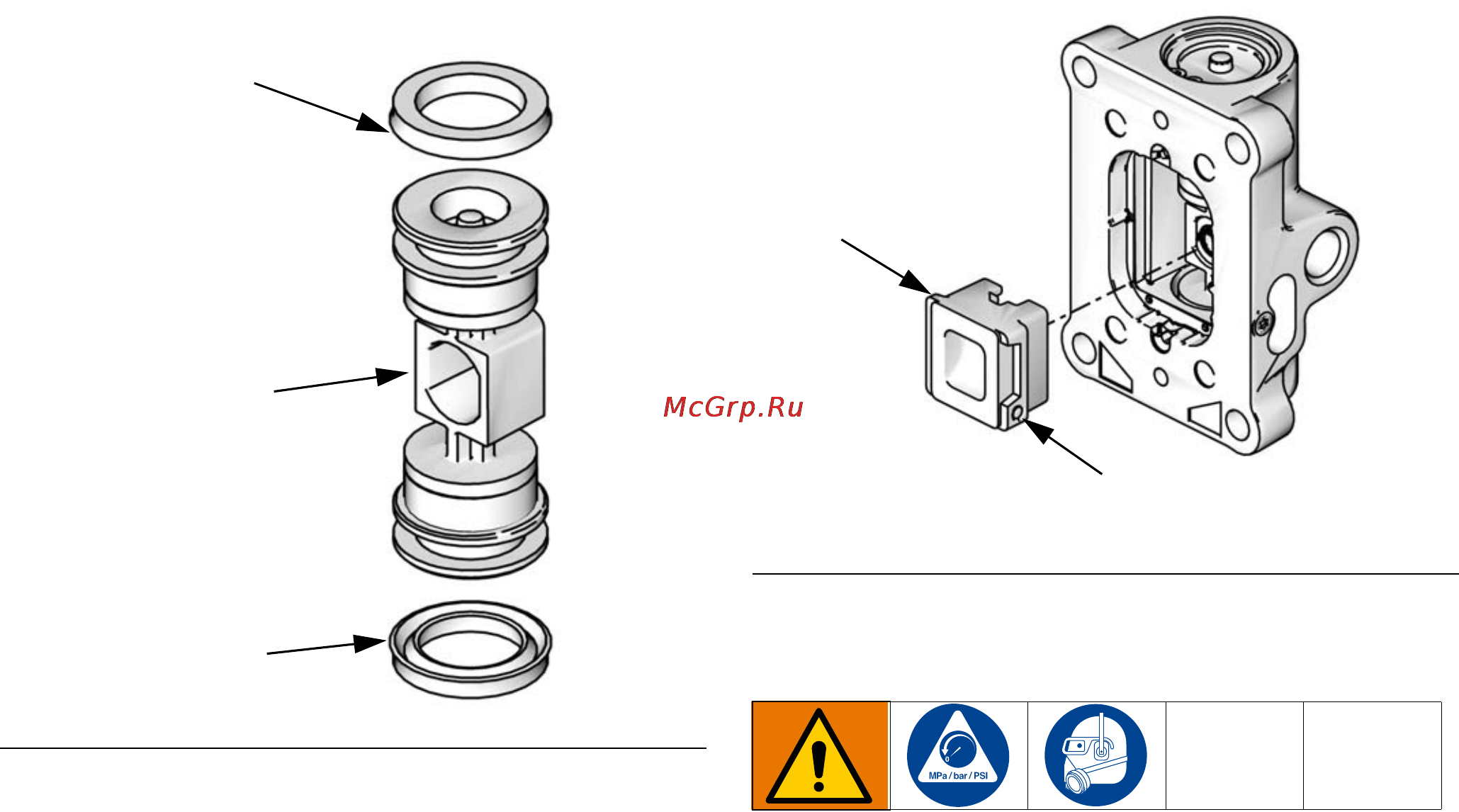

IG. 17. Pneumatic Valve U-cup Installation
Lips face down
Lips face up
†308
†308
302
ti12754a
FIG. 18. Pneumatic Valve Cup Installation
312
ti16283a
Magnet
