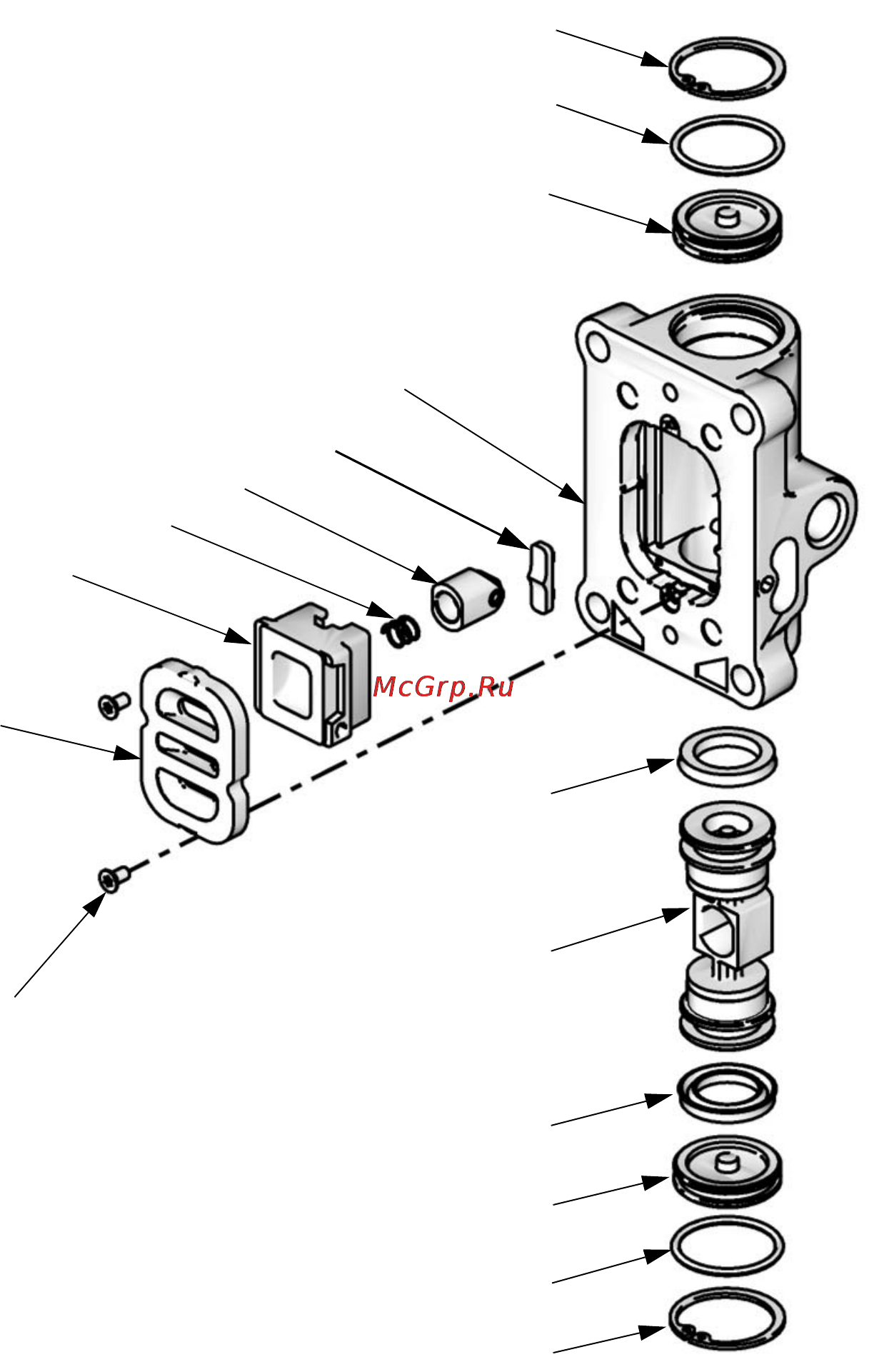

Graco Python XL 3/4" [39/48] Pneumatic valve parts
Parts
3A3948B 39
Pneumatic Valve Parts
310
307
307
†309
305
312
311
303
302
†308
†
308
301
304
310
ti16213a
†306
†306
