Graco Python XL 3/4" [29/48] Repair pneumatic motor
Repair
3A3948B 29
Repair Pneumatic Motor
NOTE: Complete Pneumatic Motor Replacement Kits
are available. Order 24G694 (3.5 in. motor).
NOTE: Pneumatic Motor Seal Kits are available. See
page 38 for the correct kit for your motor. Parts included
in the kit are marked with an asterisk (*). For best
results, use all the parts in the kit.
Disassemble the Pneumatic Motor
1. See FIG. 21. Use a 10 mm socket wrench to remove
four screws (211). Remove the pneumatic valve
(214) and gasket (209*†).
2. Remove four screws (211) and remove the manifold
(220) and two gaskets (208*).
3. Use a 10 mm socket wrench to remove the pilot
valves (213) from the top and bottom cover.
4. Use a 13 mm socket wrench to remove the tie bolts
(212).
5. Remove the top cover (210). Remove the o-ring
(202*). On 3.5 in. motors only, remove the plug
(231) and o-ring (230*).
6. Remove the shield (206) and cylinder (205).
7. Remove the o-ring (204*) from the piston.
8. Secure the piston (219) in a vise with soft jaws. Use
a wrench on the flats of the rod (218) to remove the
rod and bottom cover assembly (201) from the pis-
ton.
9. Remove the rod from the bottom cover assembly.
10. Remove retaining ring (217), u-cup seals (207*),
and o-ring (202*) from the bottom cover.
Reassemble the Pneumatic Motor
NOTE: For easier reassembly, start with the top cover
(210) turned over on the workbench and assemble the
pneumatic motor upside-down.
1. Lubricate and install the o-ring (202*) on the top
cover (210).
2. Lubricate the inside of the cylinder (205). Lower the
cylinder onto the top cover (210).
3. Install the shield (206) around the cylinder (205) and
in the groove on the top cover (210).
4. See F
IG. 20. Lubricate and install new u-cup seal
(207*) in the bottom of the bearing in the bottom
cover (201). The lips must face down. Lubricate and
install new u-cup seal (207*) in the top of the bear-
ing. Lips must face up Install retaining ring (217).

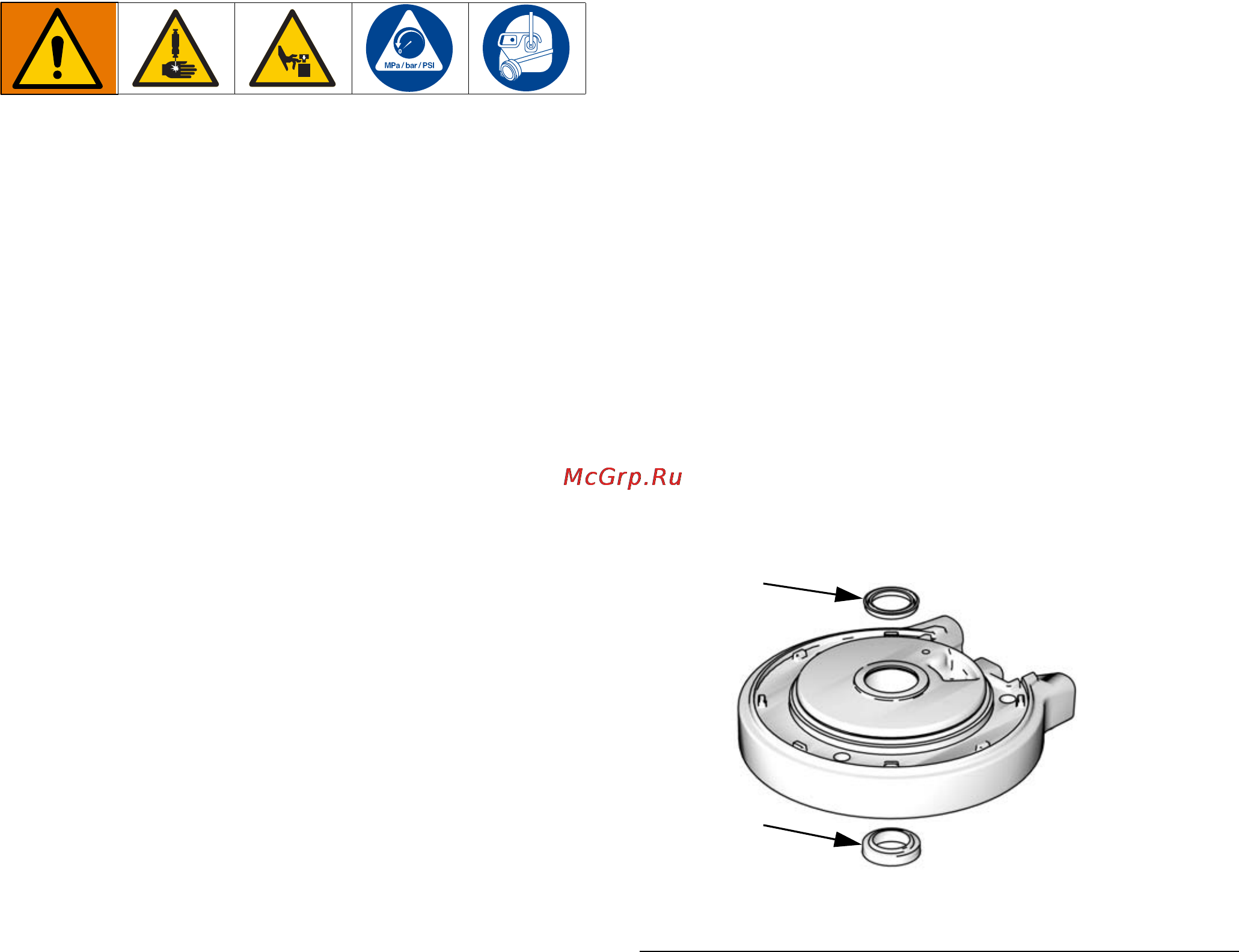

FIG. 20. Pneumatic Motor U-cup Installation
*207
*207
ti16285a
Lips face up
Lips face down.
