Managed Ethernet Switch Redundancy Protocol (UI 2.0) Turbo Ring

2-6

Configuring “Turbo Ring” and “Turbo Ring V2”

Use the scrollbar at the top of the Redundancy Protocol page to select Turbo Ring, Turbo Ring V2, Turbo

Chain, RSTP, or MSTP. Note that the configuration pages for these five protocols are different.

Protocol

Setting Description Factory Default

Turbo Ring Select this item to change to the Turbo Ring configuration page.

None

Turbo Ring V2 Select this item to change to the Turbo Ring V2 configuration

page.

Turbo Chain Select this item to change to the Turbo Chain configuration

page.

RSTP (IEEE

802.1D-2004)

Select this item to change to the RSTP configuration page.

MSTP (IEEE 802.1s) Select this item to change to the MSTP configuration page.

Configuring “Turbo Ring”

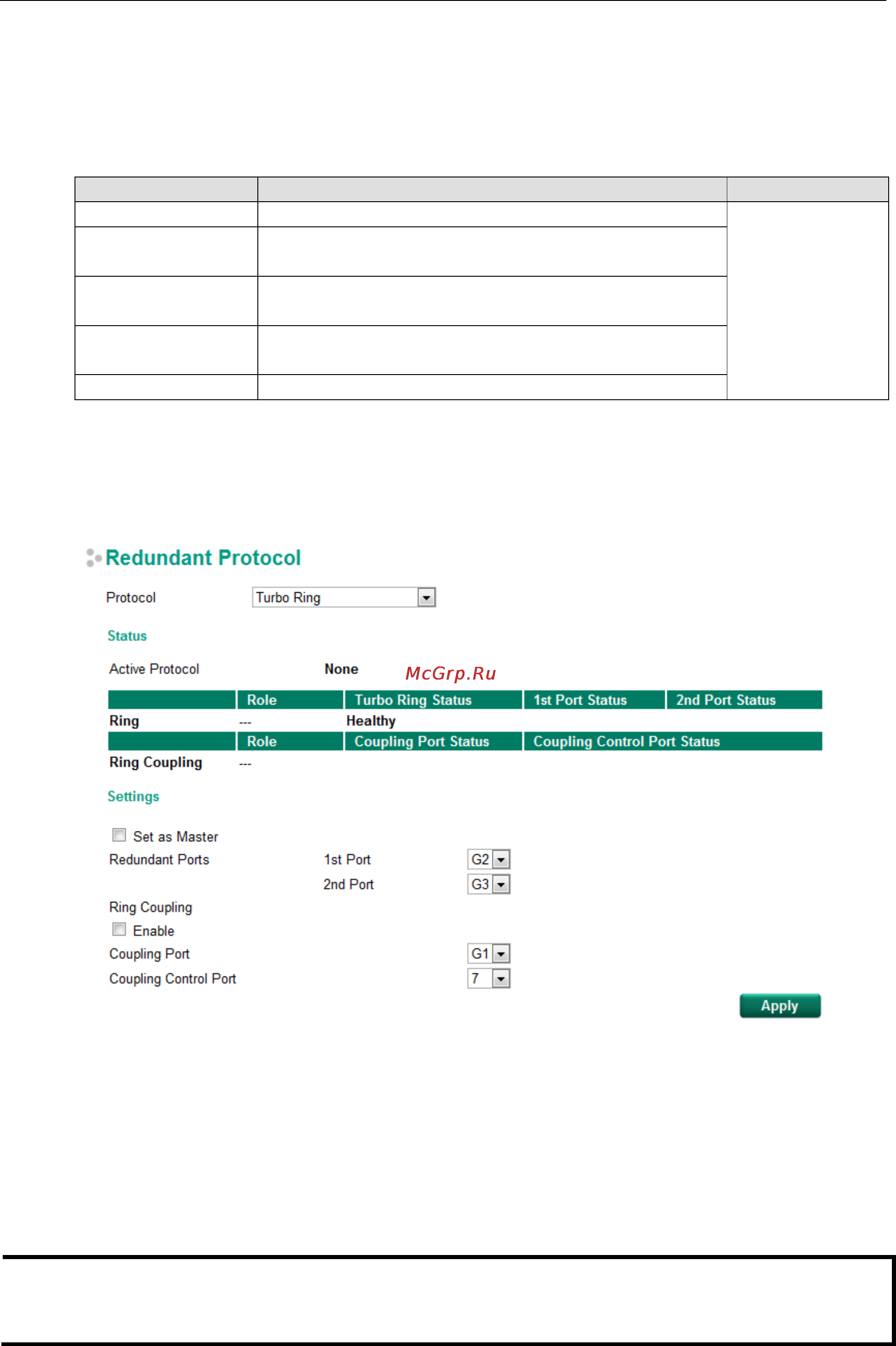

The following figure indicates which Turbo Ring parameters can be configured. A more detailed explanation of

each parameter follows.

Explanation of “Status” Items

Active Protocol

Shows which redundancy protocol is in use: Turbo Ring, Turbo Ring V2, Turbo Chain, RSTP, MSTP or

None.

Ring: Role

Indicates whether or not this switch is the Master or Slave of the Turbo Ring.

NOTE

The user does not need to set the master to use Turbo Ring. If master is

not set,

the Turbo Ring protocol will

assign master status to one of the

switches

in the ring. The master is only used to determine which segment

serves as the backup path.
