Managed Ethernet Switch Redundancy Protocol (UI 2.0) Turbo Ring
2-10
NOTE
The Turbo Ring DIP Switches located on the
outer casing of the EDS E series switches
can be used to configure
switch
Turbo Ring protocols (Turbo Ring or Turbo Ring V2).
If the
Turbo Ring DIP Switch is enabled from any access interface (web-based UI, console, or Telnet)
, and
the 4
th
DIP Switch on the switch outer casing is set to ON, the Redundancy
Protocol will be set automatically to
the
Turbo Ring protocol based on the version configured in the Turbo Ring DIP Switch page, and the
corresponding Redundant Ports, Coupling Ports
, and Coupling Control Port will be fixed to the assigned factor
y
default port number automatically.

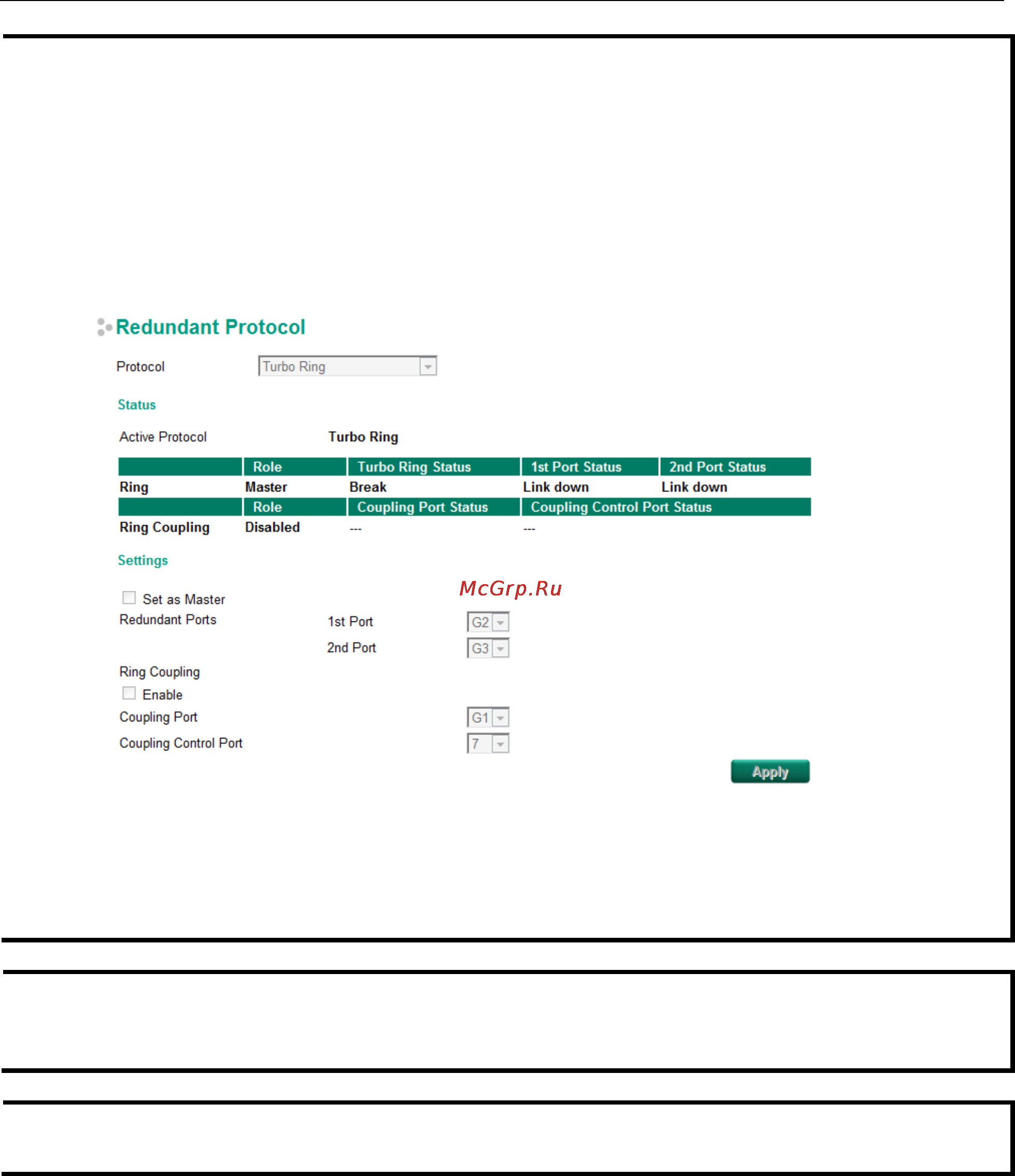

In this case, you will not be able to use the web-
based UI, console, or Telnet
interface to change the status of the DIP Switch and
all settings in the Redundancy Protocol page will not
be
allow
ed to be configured, as shown in the following figure:
In addition
, those default Redundant Ports, Coupling Ports, and Coupling Control Port will be added
automatically to all VLANs (i.e.
, to act as “Trunk Ports”) if you set the 4th DIP Switch to the “ON”
position when
the Turb
o Ring DIP Switch is enabled. Once you flip the 4th DIP Switch back from ON to OFF
when the Turbo
Ring DIP Switch is enabled, such default Redundant Ports, Coupling Ports
,
and Coupling Control Port that were
added to all VLANs will be restored to their pre
vious software settings.
NOTE
If you would like to enable VLAN and/or port trunking
on any of the last four ports, do not use the fourth DIP
switch to activate Turbo Ring. In this case, you should use the Web, Telnet, or Serial console to activate Turbo
Ring.
NOTE
Turbo Ring V2 or Turbo Chain is one function of V
-ON technology that
should be enabled in layer 2 and layer 3
switches. For
a detailed introduction, please refer to Chapter 5, V-ON.
